CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
CMS Surface Profile and Contour Measurement System with Profilometer Technology
Specifications
Brand Name :
UNIMETRO
Model Number :
SP1000
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
15set per month
Packaging Details :
wood case
Price :
Discussible
Sensor :
Digital contour sensor
Software :
CMS contour measuring software
Applicant :
Engine oil ring,Piston grinding tool,Bearing,Axial core....
Description
CMS Surface Profile and Contour Measurement System with Profilometer Technology
Digital Type Contour Measuring Machine
The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components require comprehensive analysis of all these elements.
  • Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features
  • Shape: Deviation from the target shape of the surface (plane, sphere, cone, etc.), typically caused by machine error
  • Roughness: Caused by factors such as cutting tools or machining processes
  • Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process
SP1000 Series Features
  • Standard type with low cost of use
  • Digital contour sensor
  • Large-scale profilometry capability

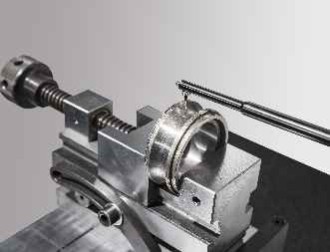

Measuring Case Examples
CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology
Recommended Specifications
Specification Details
Model Number SE2022G-tbo
Measuring Range X-axis 120mm
Measuring Range Z-axis 420mm
Z1-axis Range ±0.5mm~±7.5mm/262144:1
Z1 Linear Precision 0.07%f.s.
Angle Accuracy ±1′
Straightness 0.3μm/100mm
X-axis Drive Speed 0.05~20mm/s
Z-axis Drive Speed 0.2~20mm/s
Measurement Functions Line elements, point features, distances, parallelism, perpendicularity, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, profile analysis
System Components
P Series Digital Contour Sensor
CMS Surface Profile and Contour Measurement System with Profilometer Technology
  • Resolution: 65536:1 / 262144:1
  • Range: R:±400µm/±600µm, C:±5mm/±7.5mm
  • Linear precision: R:±7%/±4%, C:0.15%/0.07%
  • Residual noise: ≤0.025µm/≤0.02µm
  • Roughness reference: Guideway, no guide
  • High-precision integrated inductance sensor for both roughness and profile measurement with needle change
Driver Options
CMS Surface Profile and Contour Measurement System with Profilometer Technology
  • Rail travel: 100-150mm
  • Number interval: 0.2~2µm
  • Contour straightness: 0.5µm/100mm
  • Roughness residual value: ≤0.02µm
  • Maximum moving speed: 10mm/s
  • Minimum measurement speed: 0.1mm/s
  • Standard drive meets part-level contour measurement accuracy requirements
Column Components
CMS Surface Profile and Contour Measurement System with Profilometer Technology
  • Range: 320~420mm / 520~620mm
  • Maximum moving speed: 10mm/s
  • Minimum moving speed: 0.5mm/s
  • Positioning accuracy: 0.01mm
  • Lightweight design with frame-type column for long-term stability
Platform Components: MPM Integrated Standard Machine
  • Material: Marble
  • Specification: 500*800, 500*1000
  • One-piece design with compact structure for easy maintenance
Company Information
CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology
Our Clients & Agents
CMS Surface Profile and Contour Measurement System with Profilometer Technology CMS Surface Profile and Contour Measurement System with Profilometer Technology
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will advise you on suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. We have improved breakable parts and maintain stable product quality.
