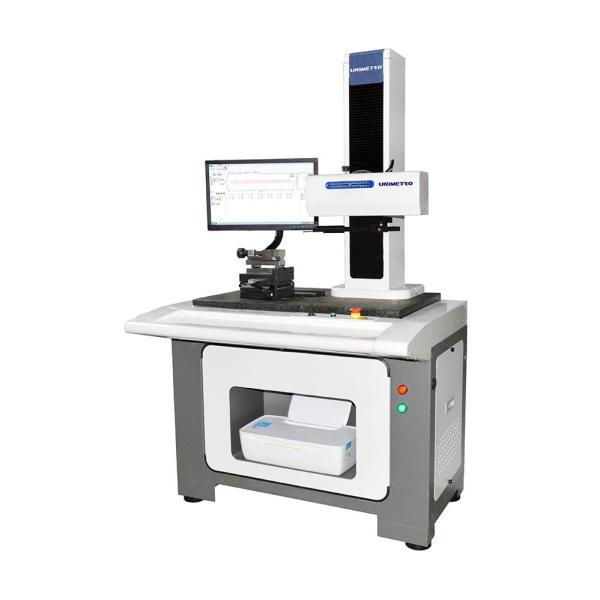

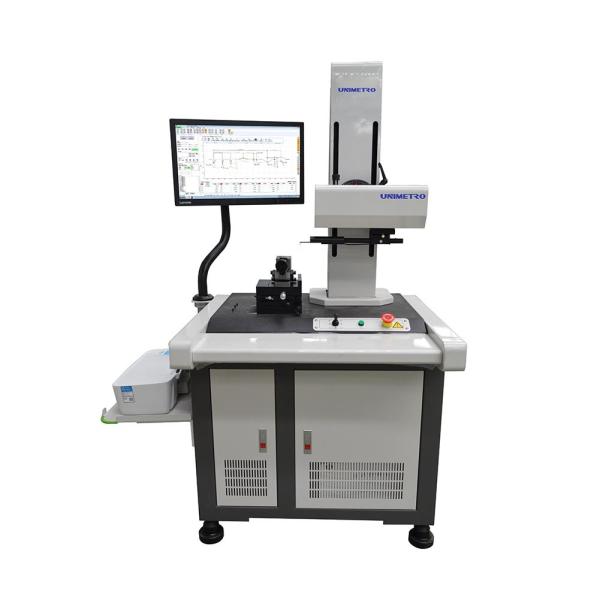

Surface Profile Measuring Machine at Competitive Pricing
Surface Profile Measuring Machine at Competitive Pricing
Specifications
Driver Measurement :
100mm
Product name :
Surface Shape Measuring Machine
Sensor Resolution ratio :
65536:1
Z1 linear Accuracy :
≤±0.15%f.s.
Column :
320mm
Driver Resolution ratio :
0.2um
Sensor measurement :
+-0.5~+-5mm
Pt5 :
±0.3μm
Brand Name :
UNIMETRO
Model Number :
SE1000
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
Discussible
Payment Terms :
L/C,T/T
Supply Ability :
30
Delivery Time :
15~20 work days
Packaging Details :
Wooden Case
Description

Surface Shape Measuring Machine

Characteristic

● Standard type, low cost
● Standard Inductive Profile Sensor
● High Precision Profile Measurement with Small Range

Surface Shape Measuring Machine Measurement Range

Item

Measurement

Resolution ratio
Driver

100mm

0.2μm
Sensor

±0.5mm~±5mm

65536:1
Column

320mm

-

Surface Shape Measuring Machine Measurement Range

Item

Measurement

Resolution ratio
Pt5

±0.3μm
Angle3

±2′
Straightness4

0.5μm/100mm
Motion Control

X-axis drive mode

Electricity
Z-axis drive mode

Electricity
X-axis drive speed

0.1~10mm/s
Z-axis drive speed

0.5-10mm/s

Parameters

Category

Part name

Specification No.

Quantity
Host part

One-in-One Standard Machine Table

cp-mp1

1 set
Standard column

cp-cn-sb

1 set
Standard Driver

cp-d-sspm

1 set
Standard Inductive Profile Sensor

cp-ztr-ic-01

1 set
Electrical control system

cp-mc

1 set
signal processing system

cp-sip

1 set
Software

CMS

1 set
Enclosure

Computer

cp-01

1 set
Printer

pr-1

1 set
Pusher damp

800010

1 set
Standard Adjustment Table

cp-br-150

1 set
Precision sinusoidal platform clamp

fq-4

1 set
Hold-all

tb-10

1 set
Calibration standard parts

1 set
Spring quick disassembly straight rod

sq-2-18-163.5-s

1 pc
Single-section needle

D-2-18-17

1 pc

Company Information
Surface Profile Measuring Machine at Competitive Pricing
Surface Profile Measuring Machine at Competitive Pricing
Surface Profile Measuring Machine at Competitive Pricing
Surface Profile Measuring Machine at Competitive Pricing

Our Client&Agent

Surface Profile Measuring Machine at Competitive Pricing
Surface Profile Measuring Machine at Competitive Pricing
FAQ
Surface Profile Measuring Machine at Competitive Pricing Q1: Are you a factory or trading company ?
Surface Profile Measuring Machine at Competitive Pricing A1: We are a factory and giving you the quickest reply in 24 hours.
Surface Profile Measuring Machine at Competitive Pricing Q2: What's your company mainly in?
Surface Profile Measuring Machine at Competitive Pricing A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Surface Profile Measuring Machine at Competitive Pricing Q3: How to Choose the Appropriate Specification?
Surface Profile Measuring Machine at Competitive Pricing A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Surface Profile Measuring Machine at Competitive Pricing Q4: Do you accept customized service?
Surface Profile Measuring Machine at Competitive Pricing A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Surface Profile Measuring Machine at Competitive Pricing Q5: What is your warranty period?
Surface Profile Measuring Machine at Competitive Pricing A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
