Advanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX
Advanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX
Specifications
Price :
Negotiation
Weight :
About 55Kg
Model Number :
TMHV-MDX Serise
Convert the ruler :
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Payment Terms :
T/T,Western Union
Certification :
CE
Hardness test range :
8~2900HV
Brand Name :
TMTECK
Loading method :
Auto-load/hold/unload
MOQ :
1
Delivery Time :
7-15 work days
Size :
580*190*700mm
Supply Ability :
10 pieces within two weeks
Place of Origin :
China
Objective lens :
10x, 20x (5X, 40X optional)
Packaging Details :
Wooden box
Description

Advanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX

I. Product Description

TMHV-MDX automatic turret digital touchscreen Vickers hardness tester is a model:

1. Multiple test force Settings, force values to choose from

2. Automatic turret

3. Hardness values are displayed automatically

4. 8-inch touchscreen interface for easy operation

II. Main Features
1. Multiple test forces, meeting all test forces within the range specified in the standard.

2. 8-inch touchscreen interface for easy user operation.

3. The rotary tower is equipped with two different magnification objectives, 10X and 20X (5X and 40X are optional), allowing for extensive sample profile scanning at low magnification as needed.

4. Both 10X and 20X (5X, 40X) different magnification objectives can be measured, 40X(optional).

5. During the test, the indenter and the objective automatically switch to each other, and the test point is automatically positioned precisely.

6. Calibration can be carried out according to standard hardness blocks or length scales, and hardness correction is automatically made according to high, medium and low hardness values, making hardness values more accurate.

7. The various hardness values can be converted to each other.

8. All test parameters and results are saved in Excel format on a USB flash drive, facilitating data processing and output of inspection reports.

9. Test setting parameters are password-protected.

10. The light source uses LED lights, which have a long lifespan and do not require bulb replacement.

11. Built-in camera for clearer images (optional).

12. Multiple languages are available, including Chinese and English.

13. Equipped with an RS-232 interface, it can be connected to a computer (optional).

III. Technical parameters

Model TMHV-5MDX TMHV-10MDX TMHV-30MDX TMHV-50MDX
Test force 0.3Kgf (2.94N), 0.5Kgf (4.90N),
1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N) (0.2Kgf is optional)		 0.3Kgf (2.94N), 0.5Kgf (4.90N),
1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N)

0.5Kgf (4.90N),
1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 15.0Kgf(147N), 20.0Kgf(196N), 30.0Kgf(294N)

0.3Kgf (optional)

1.0 Kgf(9.8N),

2.0Kgf(19.6N),
2.5Kgf(24.5N),
3.0Kgf(29.4N),
5.0Kgf(49.0N),
10.0Kgf(98.0N), 15.0Kgf(147N),
20.0Kgf(196N),
30.0 Kgf(294N), 40.0Kgf(392N),
50.0Kgf(490N)

(0.5Kgf is optional)
Enforce standards GBT4340.1, GBT4340.2, ASTM_E92
Hardness value conversion According to GB1172-99 and ASTM standards
Accuracy complies

JJG260-91, JIS B 7725, JIS B 7734, GB/ T3430.2-99

ASTM E-384, ISO 6507-2, ISO4546
Loading method Auto-load/hold/unload
Rotate the tower mechanism

Automatic, manual.

Objective - indenter - objective auto-switch rotation.

The automatic turret provides a quick and straightforward sequence of operations without the need to manually rotate the turret for automatic switching of the objective head.

The center of the objective lens coincides with the center of the indenter with high precision with an error of less than 1 micron, ensuring accurate sample pressure positioning and adjustable center position of the objective lens.
Minimum test unit 0.01 mu m
Data output The LCD display reads out and saves directly to a USB drive in EXCEL format
Convert the ruler HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness test range 8~2900HV
Test the force application method Automatic (loading, holding, unloading)
Measuring eyepiece Electronic 10x (15X optional)
Objective lens × 10x, × 20x (5X, 40X optional)
Total magnification 100X, 200X (50X, 400X optional)
Test force holding time 1~99s
Maximum allowable specimen height 180mm
Distance from the center of the indenter to the outer wall 160mm
Size 580*190*700mm
Weight About 55Kg
Power supply AC220V+5%, 50-60Hz


IV.Operation interface

Advanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDXAdvanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX

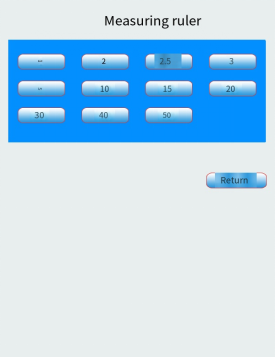

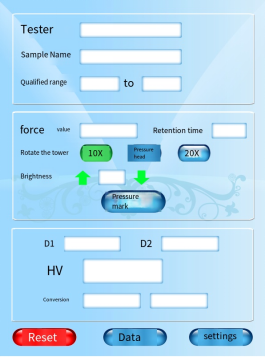

The main interface can measure 11 types of Vickers scales (50MDX).

Advanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDXAdvanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX

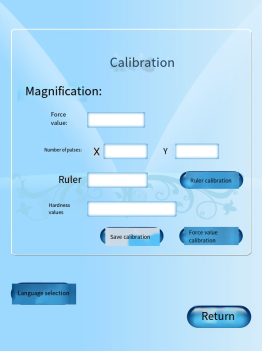

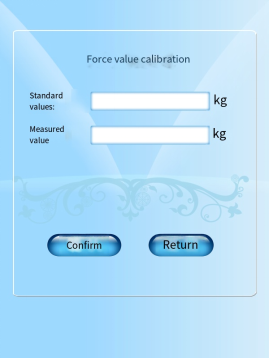

Hardness value correction Test force correction

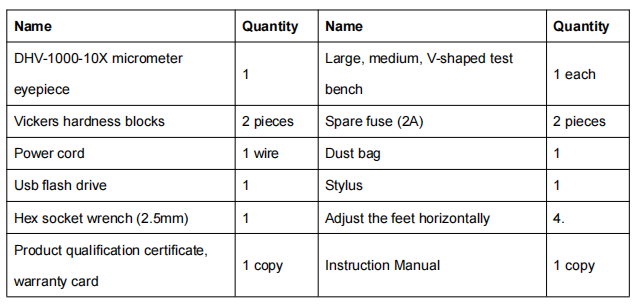

V.Standard attachment
Advanced Automatic Turret Digital Vickers Hardness Tester TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX
