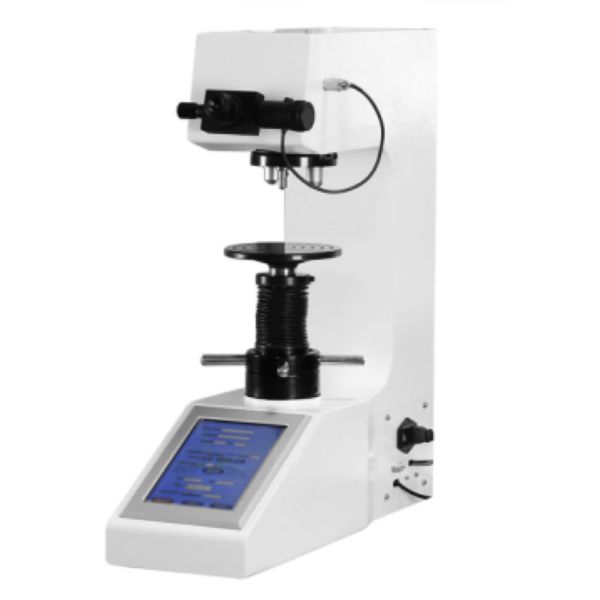

Automatic Turret Vickers Hardness Tester with Electric Closed Loop Loading and 5-Megapixel HD CCD Camera
Automatic Turret Vickers Hardness Tester with Electric Closed Loop Loading and 5-Megapixel HD CCD Camera
Specifications
Model Number :
TMHV-MPT Series
Compliant with standards :
GB/T4340, ASTM E92
Brand Name :
TMTECK
Loading method :
Electric closed loop
MOQ :
1
Delivery Time :
7-15 work days
Test objective lens :
10X, 20X
Payment Terms :
T/T,Western Union
Certification :
CE
Conversion ruler :
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Price :
Negotiation
Test the force :
Automatic (loading, holding, unloading)
Supply Ability :
10 pieces within two weeks
Place of Origin :
China
Hardness test range :
8~2900HV
Packaging Details :
Wooden box
Description
TMHV Series Vickers Hardness Tester

Modern minimalist style hardness tester system combining precision instrumentation with computer technology for exceptional cost-effectiveness.

Key Features
  • Compact design with integrated light source and camera
  • Includes brand computer with 5-megapixel HD CCD camera for superior image clarity
  • Dedicated control and measurement software for hardness testing
  • High-brightness, long-life LCD light source
  • Automatic hardness measurement and turret control
  • Precision calibration using micrometer or hardness blocks
  • Hardness value statistics with over-limit alarm system
  • Hardness conversion according to national standards and ASTM
  • Customizable test reports with permanent data and image storage
Technical Specifications
Parameter TMHV-10MPT TMHV-30MPT TMHV-50MPT TMHV-100MPT
Test Force Range (kgf) 0.3-10 0.5-30 0.5-30 2-100
Standard Force Values 0.3, 0.5, 1.0, 3.0, 5.0, 10 kgf 0.5, 1.0, 2.0, 2.5, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0 kgf 1.0, 2.0, 2.5, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0 kgf 2.0, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0, 60, 80, 100 kgf
Loading Method Electric Closed Loop
Force Application Automatic (loading, holding, unloading)
Turret Automatic
Compliance Standards GB/T4340, ASTM E92
Hardness Test Range 8~2900HV
Test Objectives 10X, 20X
Force Holding Time 1~99s
Max Specimen Height 160mm
Indenter to Wall Distance 170mm
Computer System 21.5" All-in-one, 4GB RAM + 120GB SSD, Windows OS, WiFi
Camera 5 Megapixels
Dimensions 580*190*700mm
Weight Approx. 55kg
Power Supply AC220V ±5%, 50-60Hz, 600W
Standard Accessories
Item Quantity Notes
All-in-one Computer 1 Includes program and user manual
Camera 1 Built-in
Camera Interface 1 Built-in
X/Y Test Bench 1 -
Vickers Hardness Block 2 pieces -
Horizontal Adjustment Feet 4 -
Hex Socket Wrench (2.5mm) 1 -
Dust-proof Bag 1 -
Spare Fuse (2A) 2 pieces -
Power Cord 1 -
Product Documentation 1 copy Qualification certificate and warranty card
