Specifications
Brand Name :
JeiTai
Model Number :
JPS-40
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥1050
Payment Terms :
T/T
Supply Ability :
One unit, with a weight of 3.2 kilograms.
Delivery Time :
About one week to one month

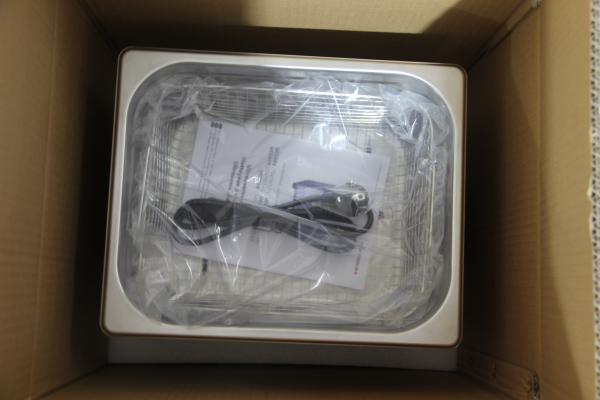

Packaging Details :
Packaging: Carton Machine dimensions: 330x270x270 mm
Name :
Lab Equipment Ultrasonic Cleaner
Product Series :
Mechanical Series
Ultrasonic power :
240W
Overall dimensions of the machine :
330x270x270mm
Large box size :
735×435×380(2Table)mm
Capacity :
10L
Cleaning tank size :
300x240x150mm
Model :
JPS-40
Gross Weight :
8KG
Heating power :
300W
Description

Laboratory-Specific 10L Mechanical Ultrasonic Cleaner With Timing And Heating Functions, Efficiently Cleaning Glassware / Precision Instruments / Small Components.

Durability Design: Challenging Extreme Working Conditions

1. Wide-Range Environmental Adaptability

  • Temperature Resistance: When starting at -20°C, the heating system raises the cleaning solution temperature to 25°C within 5 minutes. In high-temperature environments of 85°C, the cooling fan automatically activates (rotating at 2500±10% RPM) to ensure the transducer temperature rise ≤15°C/h.
  • Voltage Stability: Equipped with an automatic voltage regulator module (input voltage 100-240V±10%), it maintains power output error <3% during voltage fluctuations, preventing cleaning performance variations caused by unstable voltage.

2. Long-Life Core Components

  • Transducer: Uses PZT-4 piezoelectric ceramic vibrators (service life >10,000 hours) with an amplitude decay rate <5% per year, outperforming the industry average of 10%.
  • Control System: The PCB board is treated with 3 layers of nano three-proof t (meeting IP54 protection grade), enabling stable operation in 95% RH humidity environments and avoiding failures caused by circuit corrosion.

3. Easy-Maintenance Structural Design

  • Quick-Detachable Cleaning Tank: The tank can be disassembled within 3 minutes for deep cleaning of stubborn stains.
  • Intelligent Fault Diagnosis: The LCD screen real-time displays transducer frequency deviation (alarm threshold ±1kHz) and abnormal water levels (automatic shutdown when below the safety line), reducing maintenance response time by 50%.
Mechanical Series
Model Capacity Ultrasonic power Heating power Cleaning tank size Overall dimensions of the machine Gross Weight Large box size
L W W (LⅹwⅹH)mm (LⅹwⅹH)mm KG (LⅹwⅹH)mm
JPS-08 1.3L 60 100 150×140×65 180×170×140 2.5 526×524×308(4Table)
JPS-10 2L 80 100 150x140x100 180x170x180 3.0 526×524×338(4Table)
JPS-20 3L 120 100 240x135x100 270x170x210 4.0 410×355×345(2Table)
JPS-30 6L 180 300 300x150x150 330x180x270 6.0 555×435×390(2Table)
JPS-40 10L 240 300 300x240x150 330x270x270 8.0 735×435×380(2Table)
JPS-50 14L 300 300 300×240×200 330×270×320 9.0 420×360×420(1Table)
JPS-60 15L 360 300 330×300×150 360×330×270 10.0 450×420×370(1Table)
JPS-70 19L 420 300 330×300×200 360×330×320 11.0 460×420×420(1Table)
JPS-80 22L 480 600 500×300×150 550×330×270 13.0 625×420×370(1Table)
JPS-100 30L 600 600 500×300×200 550×330×320 15.0 625×420×420(1Table)
