Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment
Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment
Specifications
Brand Name :
JeiTai
Model Number :
JTW-4096AD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥220000
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film. Dimensions: 4.5M*1.6M*2.5M
Name :
Ultrasonic Cleaning System
Ultrasonic power :
40KW
Gross Weight :
2000KG
Model :
JTW-4096AD
Cleaning temperature :
60℃
Overall dimensions of the machine :
4.5M*1.6M*2.5M
Description

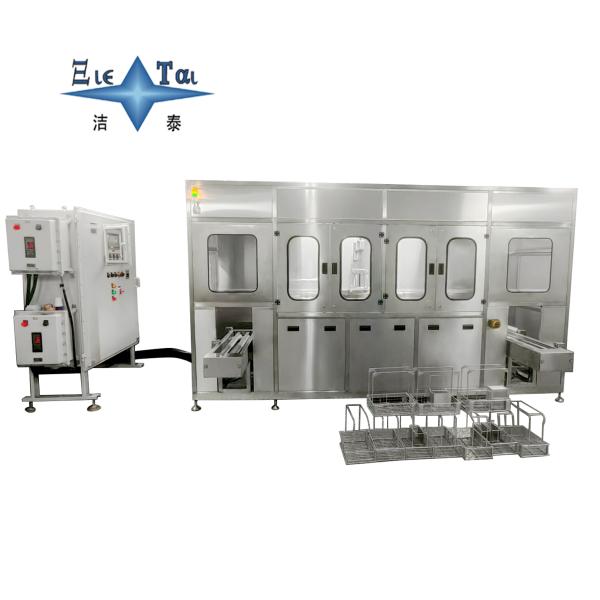

Product Features: Fully Automatic Explosion-Proof Ultrasonic Cleaning System​
(40kHz, 40KW, 4.5M×1.6M×2.5M)​
1. ATEX/IECEx-Certified Explosion-Proof Construction​
Engineered to comply with Ex d IIB T4 Gb and IECEx Ex d IIB T4 standards, the system integrates explosion-proof critical components: hermetically sealed piezoelectric transducers, flameproof electrical enclosures (IP66 rating), and static-dissipative 316L stainless steel tank bodies (surface resistance 10⁶-10⁹Ω). Pressure-relief valves and gas-tight chamber gaskets prevent flammable vapor accumulation—ideal for environments handling solvent-based contaminants. All wiring meets NFPA 70 Class I, Division 2 requirements, eliminating ignition risks in hazardous zones.​
2. Fully Automated Process Integration​
A S7 PLC with 12-inch touchscreen HMI enables end-to-end automation, supporting 50+ programmable cleaning-dehydration cycles. Key automated functions include:​
  • Servo-driven automatic load/unload conveyor (speed 0.3-2.5m/min, max load 120kg/m²) with laser positioning (±1mm accuracy)​
  • Automatic ultrasonic power modulation (30-100% of 40KW) based on real-time soil-sensing feedback​
  • Closed-loop IPA management: auto-refill, distillation recycling (92% solvent recovery rate), and purity monitoring (≥99.5% IPA concentration)​
  • End-of-cycle auto-discharge with batch coding for traceability, aligning with ISO 9001 process documentation requirements.​
3. 40kHz Ultrasonic Cleaning Performance​
Equipped with 28 high-output piezoelectric transducers (40kHz ±0.5kHz frequency stability) arranged in a matrix layout, the system delivers uniform cavitation intensity (90-130μm bubble diameter) across the 4.2M×1.4M cleaning chamber. The 40KW power module features variable frequency drive (VFD) technology, reducing energy consumption by 18% vs. fixed-power designs. It effectively removes particulate contaminants (≥5μm), mineral oils, and flux residues from complex components (e.g., aerospace fasteners, oilfield valves) without surface etching.​
4. Efficient IPA Vapor Dehydration​
The integrated IPA dehydration chamber utilizes precision PID temperature control (65-85℃) and vacuum-assisted vaporization to eliminate residual moisture in ≤4 minutes. A HEPA H13 filter captures IPA aerosols, while a heat exchanger recovers waste heat to preheat the cleaning solution—cutting auxiliary energy use by 22%. The dehydration process leaves a zero-residue surface, meeting ASTM F3124 standards for post-cleaning component purity.​
5. Space-Optimized Engineering (4.5M×1.6M×2.5M)​
The compact 4.5M (L)×1.6M (W)×2.5M (H) footprint integrates cleaning, dehydration, and solvent recovery modules into a single skid-mounted unit—reducing facility space requirements by 30% vs. split-system designs. Adjustable infeed/outfeed heights (750-1100mm) enable seamless integration with existing production lines, while side-mounted service panels provide easy access to transducers, filters, and IPA distillation components.​
6. Safety & Maintenance Enhancements​
  • Redundant safety interlocks: emergency stop (SIL 2 rated), door interlocks, and over-temperature/pressure alarms​
  • Automatic fire suppression system (FM-200) for IPA vapor zone, compliant with OSHA 29 CFR 1910.106​
  • Self-diagnostic system: real-time monitoring of transducer performance, IPA level, and conveyor alignment, with remote alert capability via MODBUS​
  • Quick-change filter cartridges (5μm absolute rating) and tool-free transducer access, reducing maintenance downtime by 40%.
