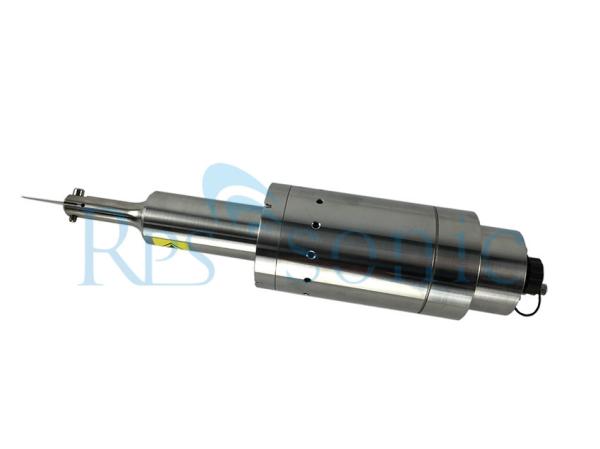

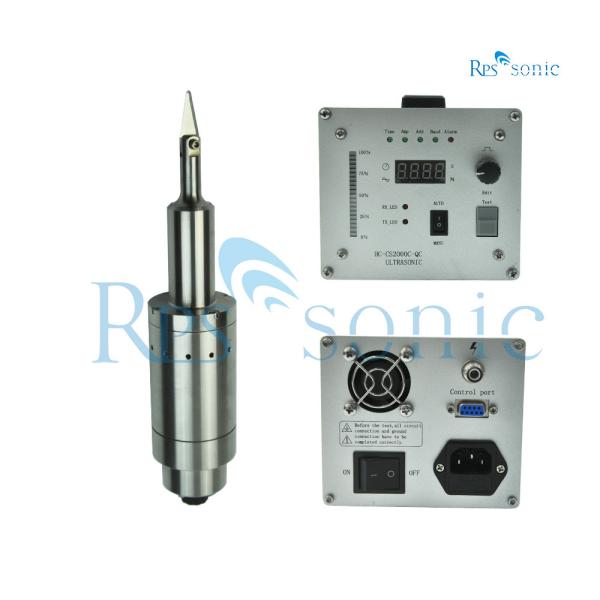

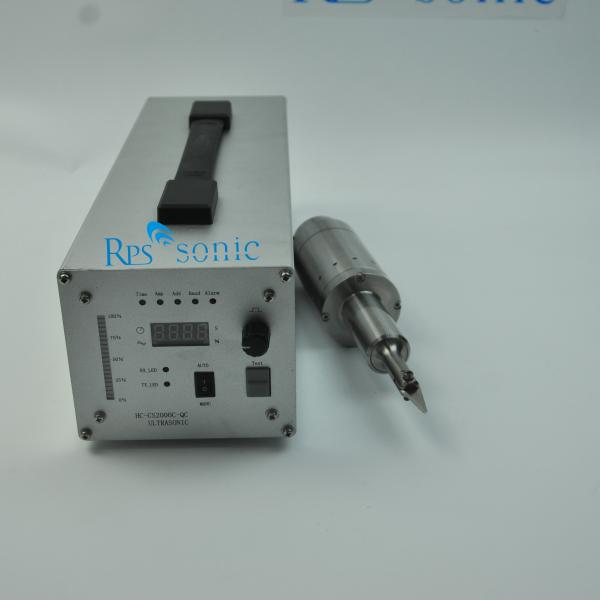

30Khz ultrasonic cutting system for plastic cutting with digital generator

The RPS-SONIC is an international leader in the development and manufacturing of ultrasonic transducer, ultrasonic homogenizer & sonicator, rotary ultrasonic cutting solution, plastic welding & sewing, ultrasonic processing. The customers include small, highly-specialized machines and system constructors, large industrial operations and international corporations.

RPS-SONIC Ultrasonic cutting systems are ideal for cutting rubber, plastic, food (cake, biscuits), composite aerospace materials such carbon fiber, Nomex and various honeycombs.
RPS-SONIC’s ultrasonic cutting systems can be operated as hand-held units or incorporated into automated machinery. Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications. Solid, one-piece construction of horn blade technology virtually eliminates breakage and energy loss.

Our robust designs provide minimal blade flexure which yields straight cuts without having to support the blade.

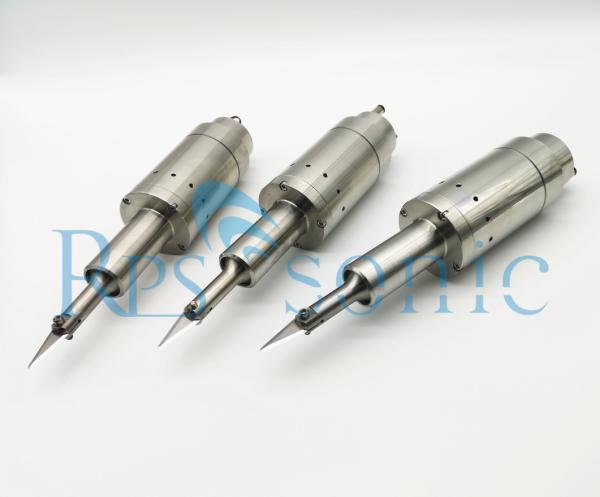

RPS-SONIC cutting systems come in 20kHz, 25kHz, 30kHz, 35kHz, and 40 kHz frequencies. Where aggressive cuts are needed our 20 kHz ultrasonic generators and tooling are a great solution. If a smaller footprint or lighter payload is needed our 30 and 40 kHz cutting systems are a great fit and provide a quiet operating environment.
Our ultrasonic horns designed to work with replaceable carbide cutting blades is a proven solution for aerospace materials that would otherwise not be feasible with standard ultrasonic tooling materials.

Parameter

Working Principle

• The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by the cutter.
• Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced.
• The material to be cut does not stick to the blade and does not collapse or break.
• It has obvious effect on cutting frozen, viscous and elastic materials.
• Please contact our sales for more information

Abundant Functions
Automatic resonance point, automatic frequency sweep tracking in the frequency range of 19-26KHZ.
Automatic amplitude compensation, which automatically works at the optimal frequency point and output point according to the fluidity of the sample.
Independent on/off pulse with three modes of continuous use, pulse and timed continuous ultrasound.

Extensive Application
The ultrasonic cutter can cut many materials such as ABS, PE, PVC, PC, acrylic, non-woven, neoprene, corrugated, plywood, fiberglass resin, cardboard, linen (linoleum), urethane, nylon, PP, etc.
It can even cut Kevlar easily!
Suitable for cutting honeycomb aluminum, but not for cutting aluminum plate
