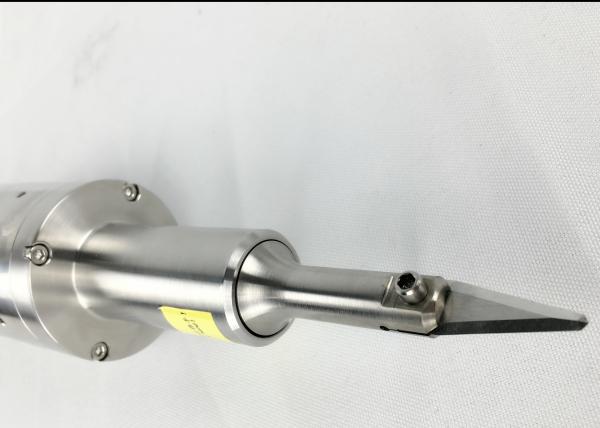

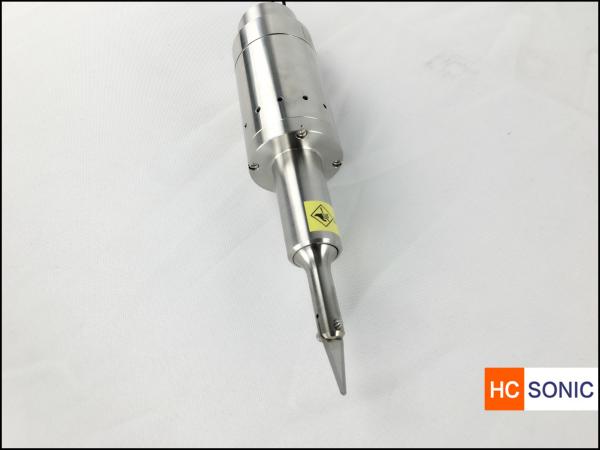

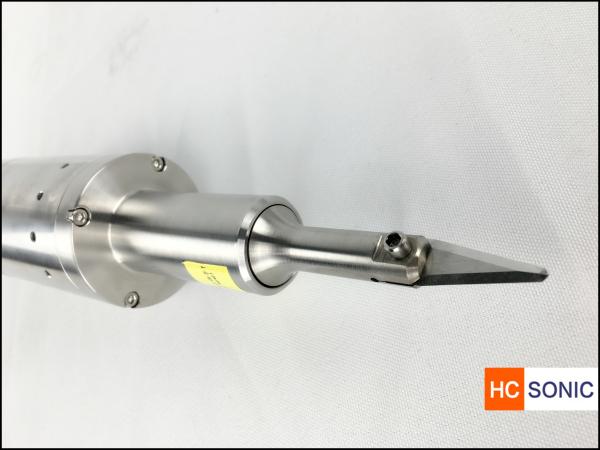

30Khz Robot-guided ultrasonic knives Unit Trimming with smooth edge

Descripersion:

Ultrasonic Cutter are designed to cut textiles thermoplastic films, rubber woven and non-woven fabrics. Ultrasonic Cutting Systems can be operated as hand-held units or incorporated into automated machinery. Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.

The ultrasonic cutter vibrates its blade with an amplitude of 10 - 70 µm in the longitudinal direction. The vibration is microscopic, so it cannot be seen. The movement repeats 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven cloths, film, composite materials in which various products are superposed, and food
Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

• Solid, one-piece construction of horn blade virtually eliminates breakage and energy loss.
• Minimal blade flexure yields straighter cuts without having to support the blade.
• Compatible with ultrasonic probe systems.
• Available in 20, 30 or 40 kHz frequencies,20Khz customized.
• Easy to clean and easy to change knife.
• New ultrasonic cutting horn features replaceable carbide cutting tips for long tool life.

Parameter:

Target Materials

Resin plate
Glass fiber (GFRP)
Formed decorative film
Foam
Blow-molded parts
Injection-molded parts
Carbon fiber (CFRP)
Aluminum foil composites
Non-woven fabrics
Controlled-depth kiss cutting

FEATURES

1.Easy to use and operation

2.Small volume , take small space

3.Overload protect function , no damage to components

4.Switherland transducer , it’s stable and life long

5.Power range 30--100% adjutable

6.High quality titanium ultrasonic knife

7. With digital ultrasonic geneator .

Compare with other cutting way:

1. Water Jet Cutting enables high speed and various shape cutting. However, it has drawback such as accompanied many capital investment, high running cost, adverse effect to the material by water and burr on cutting section etc..
2. Laser Cutting cause material melting and fire risk.
3. Die Cutting by press machine is good for high volume production, but invites difficulty for design change.
