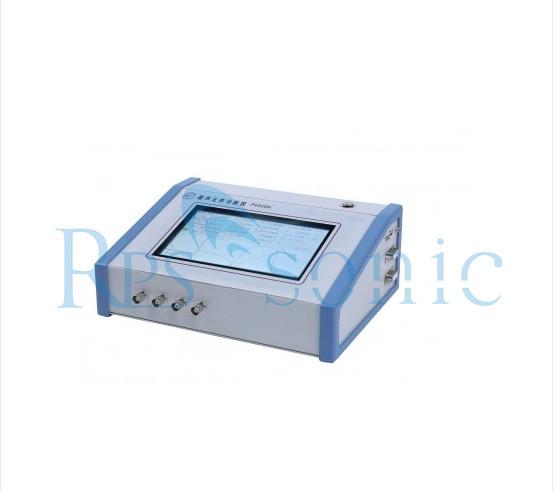

1Mhz Touch Screen High Sensitivity Ultrasonic impedance analyzer for testing piezoelectric converters

Parameter

Description

RPS-SONIC Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. The Impedance Analyzer PV520A is for these elements as an oscilloscope is for the electronics.

With the RPS-SONIC Impedance Analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.

The PV520A series of ultrasonic component analyzers (Impedance Analyzer) are jointly developed by the Department of Automation of Tsinghua University and the Institute of Acoustics of the Chinese Academy of Sciences. They are used as comprehensive solutions for the detection of piezoelectric ultrasonic devices and equipment.
PV520A is a new generation of ultrasonic component analyzer developed on the basis of PV70A-P (computer version) and PV70A-D (built-in display version), combining the advantages of the former two. Its characteristics are as follows:
1. The large screen and full-screen touch make PV520A have the operating experience of PV70A-P (computer version) without the cumbersome feeling of computer operation.
2. Relying on the new super powerful ARM processor data processing capability, the measurement accuracy of PV520A is much higher than that of PV70A-D (with display version), which can reach the level of PV70A-P (computer version).
3. The full-screen touch operation is more user-friendly, and there is no need for a large number of physical buttons of the PV70A-D (built-in display version), so the operation of the instrument becomes extremely simple, at the same time the product size is smaller, the weight is lighter, and the portability is better.
4. It can be connected to a computer for operation like PV70A-P, and the software is fully compatible, so users no longer need to be familiar with software operations.

Adcantages

Practicality and ease of use. No need for ultrasonic expertise.
Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance
Allows the quality control of ultrasonic transducers reducing technical assistance
Makes fast and accurate manufacturing of transducer possible
Easy operation, Easy to connect to PC operation for record
Affordable cost: Now buy a Brand New One at Rental Price

Application

Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.
