30 Khz Ultrasonic Welding Equipment For Straps Cutting , High Performance
30 Khz Ultrasonic Welding Equipment For Straps Cutting , High Performance
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-W30-600
Place of Origin :
China
MOQ :
1SET
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 SET PER MONTH
Delivery Time :
3DYAS
Packaging Details :
FOAM AND CARTON
Certification :
CE
Name :
Ultrasonic cutting and welding equipment
Frequency :
30Khz
Power :
600W
Install Type :
installed on machine
Horn :
5mm
Weight :
15KG
Description

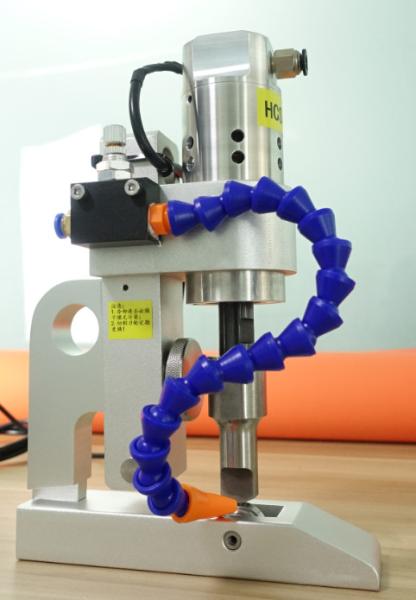

30 Khz Ultrasonic cutting and welding equipment for welding and straps cutting

This new design for ultrasonic cutting and welding is flexible applied. It can be be use by hand: fixed this equipment on table and move the fabric only. it can cutting and sealing the edage at the same time.And also this ultrasonic cutting & sealing equipment can be installed on any machine. it is very compact and easy for installed. so that it can be applied on auto machine to make the cutting and sealing more fast.

  • Very compact and flexible unit : New design, more compact and versatile
  • Cutting or welding depending on the tool
  • Able to handle sonotrodes up to 60 mm width

Parameter:

Technical Features

  • To be installed on machines or lines
  • Sealing on engraved wheel, followed by slitting through pentagonal ceramic blade
  • Stationary sonotrode and rotary engraved wheel pulled by the fabric
  • Widths of standard sealing: 20mm (other dimensions: 8, 12, 16, 25mm, on request)
  • Speed: up to 100 m/min, according to fabrics to be cut and customer’s specifications
  • Tension: 230 V-50 / 60 Hz – single phase current (equipment entirely electric)
  • Power: up to600 W – Frequency: 30/40 kHz or up to 1200 W – Frequency: 30/40 kHz
Item
frequency 30khz 40Khz
Power 600w 300w
Power supply 110 / 220 V A/C 110 / 220 V A/C
Weight 10Kgs 9kgs
Application Fabic/clothing/non wonen plastic film

Areas of use:

  • Solar protection
  • Clothing
  • Ribbons
  • Packaging

Main application:

  • Big bags
  • geotextiles
  • Integration on looms and machines

The new design:

  • Sturdiness: Really sturdy frame
  • Rigidity and precision: jack guiding system with rail + shoe
  • Easy to use and reproducibility: gap setting through fine pitch
  • Easy maintenance: Parallelism settings through 3 isostatic points
  • Uneveness adjustment thanks to fixed tool holder, placed on Belleville washers
