30 Khz 500 Watt Ultrasonic Textile Cutting Machine For Fabric
30 Khz 500 Watt Ultrasonic Textile Cutting Machine For Fabric
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-C30
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
100sets
Delivery Time :
3 work days after payment
Packaging Details :
CARTON
Application :
use PE PP PVC Plastic Cutting
Function :
PE PP PVC Plastic cutting
Frequency :
30khz
Power :
800W
Voltage :
220V / 110V
Description

30khz 500w ultrasonic cutting machine for fabric cut

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.

Specification:

Model RPS-C30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

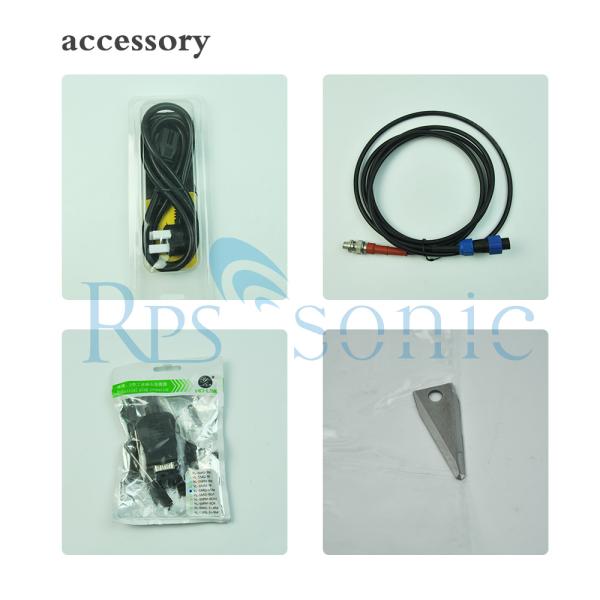

Accessory Foot switch 1pc；Cut blade 2pcs；
1.5mm special hex wrench 1pc；Screw M3×4L 2pcs
Material of blade Titanium alloy, stainless steel

Application range:

Ultrasonic cutting machine is suitable for: raw rubber cutting, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit board, industrial, jewelry, plastic products processing, food processing, printing industry, automotive industry. Natural fiber segmentation (divided into fine lines), synthetic fiber deep digging (multilayer circuit cutting), plastic casing processing, thin synthetic resin lacquer (suitable for large areas) All types of paper and base film origin (China) or handheld Cutting machine and so on. The use of ultrasonic cutting machines can also be extended, such as digging holes, shovel digging, scraping paint, engraving, slitting and so on.

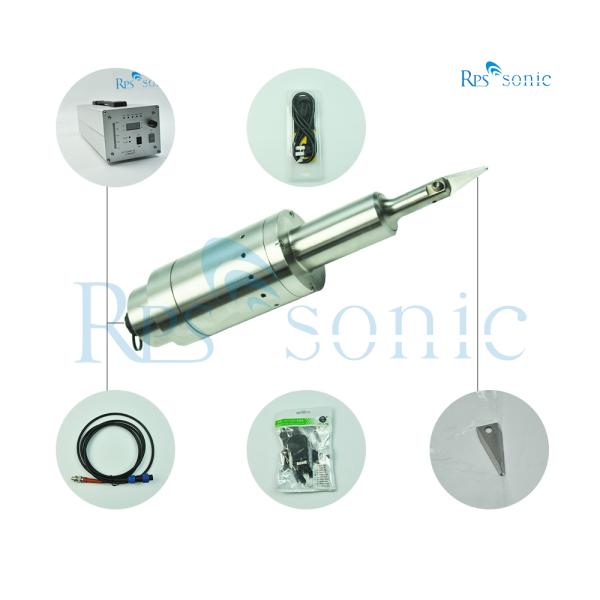

Detailed Image:

30 Khz 500 Watt Ultrasonic Textile Cutting Machine For Fabric

30 Khz 500 Watt Ultrasonic Textile Cutting Machine For Fabric
