35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-W35
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100sets
Delivery Time :
3 work days after payment
Packaging Details :
CARTON
Frequency :
35Khz
Power :
800watt
Rotary Welding Horns Width :
12mm
Power Adjust Method :
File or Continuous
Allowable Rotation Speed :
100 r/min
Application :
non-woven fabric/auto parts/sportswear
Applicable materials :
hot melt material
Description

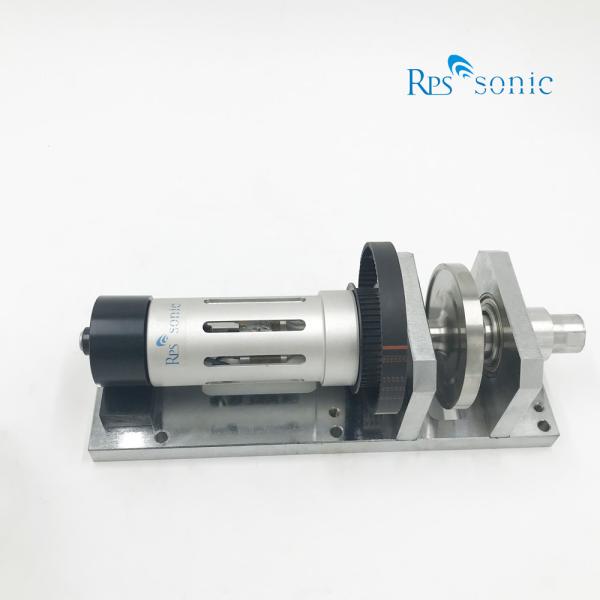

35kHz 800Watt core parts for ultrasonic sealing and cutting machine

Description:

It uses high-frequency oscillation to transmit the sound wave from the sewing machine head to the sewing surface of the working object, instantly friction the working object molecules to reach the material melting point, so as to complete the rapid dissolution of solid materials and complete the sealing.

Specification:

Model RPS-W35
Frequency 35 KHz
Power 800 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Real-time Display Working Frequency and Working Current
Synchronizing Wheel Specifications 46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed 100 r/min
Install Bolt M8, 4 pcs

Application:

They are widely used in the following industries: sportswear; sunscreen curtains; technical fabrics; nonwovens; auto parts.

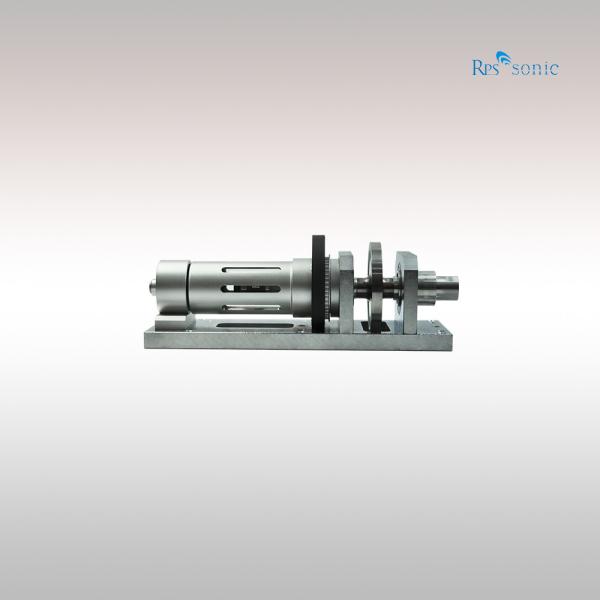

Detailed image:

35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless

35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless

Features:

  • It is suitable for needle free sewing of chemical fiber cloth, non-woven fabric and hot-melt fabric, instead of sewing or down pressing welding, and has the function of continuous and infinite welding,
    Solid welding, beautiful appearance and high work efficiency;

  • The specially designed multi-functional rack system can be used for linear suture, turning suture, rotary suture, cylindrical lap and other purposes.

Certafication

35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless

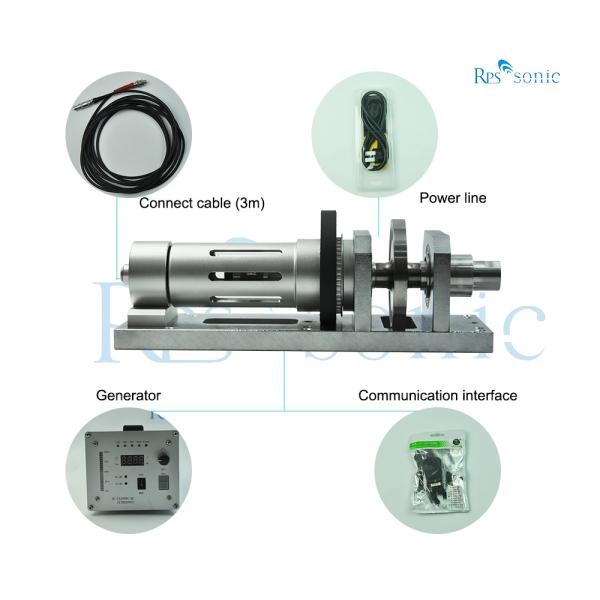

Package&Shipping:

35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless

Payment:

35khz 220v 800wat Titanium Alloy Ultrasonic Sewing Machine For Curtain Sewing ultrasonic non woven bag sealing Seamless
