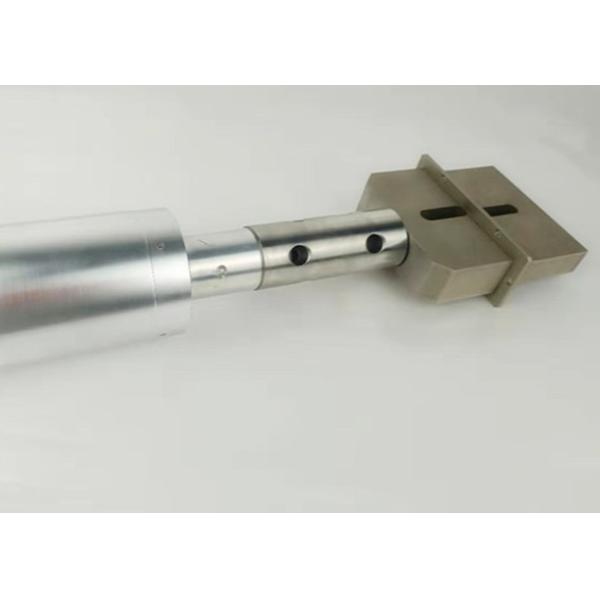

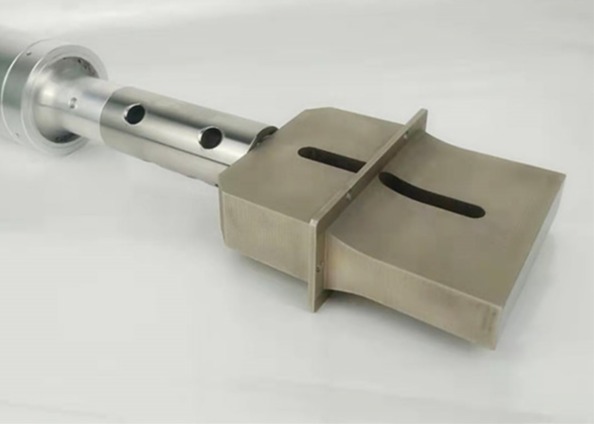

20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
20khz Ultrasonic Converter With Steel Horn For Ultrasonic Sealing Packing Machine
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-WS20
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100SET/,YEAR
Delivery Time :
5 WORK DAYS
Packaging Details :
CARTON
Frequency :
20Khz
Power :
1800W
Generator :
Digital generator
Suitable apply :
tube sealing , ultrasonic packing machine
Horn :
steel horn
Suitable material :
All Thermoplastic tube
Description

20khz ultrasonic converter with steel horn for ultrasonic sealing packing machine

The Ultrasonic sealing system consists of a generator, converter, booster, anvil, sonotrode and knife. The components are built onto a traverse and connected to our guiding mechanism. In combination with our servo drives, we enable highest parallel and torque accuracy.
An ultrasonic power supply takes the 50/60 Hz electrical energy and converts it to 20,000 cycles
per second thorough a power oscillator. This high frequency electrical energy is applied to the convertor which transforms the electrical current to high frequency mechanical vibrations. The sonic energy causes the horn to vibrate against the tube end at 20,000 cycles per second.

Advantages of Ultrasonic Sealing

Reduce Materials
  • 30-80% narrower seals vs heat
  • Reduction of package headspace
  • Potential reduction in secondary packaging
Reduce Maintenance
  • Reduce contamination of sealing tools
  • Reduce changeover time
  • Eliminate tool cooling time
Reduce Energy
  • Even temperature distribution
  • Sealing times between 80 and 200 ms
  • Short cycle times
  • Estimated ROI from 6 months to 2 years

Item parameter
Frequency 20Khz
Power

2000W in max
Generator digital generator
Voltage 220-240V 50/60 Hz
Horn material Aluminum alloy, titanium alloy, steel
Application

Medical plasctic tube, cosmetic plastic tube

Toothpaste tube
Seal tube dia 5-80mm(can customed)

1.Min order quantity:1 set

2. Payment terms :100%TT

3.Delivery time:7 days after confirming the order

4.Packaging :In export carton covered with damp proof film

5.One year quality guarantee,lifelong maintenance.
