Transformer Using TIW-B Triple Insulated Copper Winding Wire
Transformer Using TIW-B Triple Insulated Copper Winding Wire
Specifications
Brand Name :
RVYUAN
Model Number :
0.15mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
3000 meter
Price :
Negotiation
Payment Terms :
T/T/Paypal
Supply Ability :
1Ton/Month
Delivery Time :
7 days
Packaging Details :
Carton
Product Name :
Transformer Using TIW-B Triple Insulated Copper Winding Wire
Thermal rating :
155
Single wire Diameter :
0.15mm
Conductor material :
Copper
Insualtion :
ETFE
Description
Transformer Using TIW-B Triple Insulated Copper Winding Wire
Typical Application Areas of triple insulated wire:
Consumer Electronics: Mobile phone chargers, LED driver power supplies.
Industrial Equipment: Inverters, servo drives.
Medical Equipment: Isolated power supply modules.
New Energy: Photovoltaic inverters, electric vehicle charging modules. Communication Equipment: Network transformers, isolated DC-DC converters.
Product Specifications
Item Standard Test Result
Outer diameter of conductor (mm) 0.169mm(Max.) 0.163 | 0.165 | 0.163
Enamel coating thickness 0.008mm(min.) 0.013 | 0.016 | 0.014
Conductor 0.15±0.003mm 0.15 | 0.149 | 0.149
Elongation 15%(min.) 30.6 | 30.6 | 30.6
Overall dimension 0.350-0.365mm(max.) 0.359 | 0.362 | 0.359
Insulation thickness 0.1±0.01mm(min) 0.099 | 0.101 | 0.094
Pinhole 0 M/1 fault(max) 0 | 0 | 0
Resistance 1037Ω,km(max) 1007.3 | 1001.6 | 1004.8
Breakdown voltage 6KV(min) 16.6 | 17 | 17.6
Solderability(±10℃) 450℃ 3s smooth ok | ok | ok

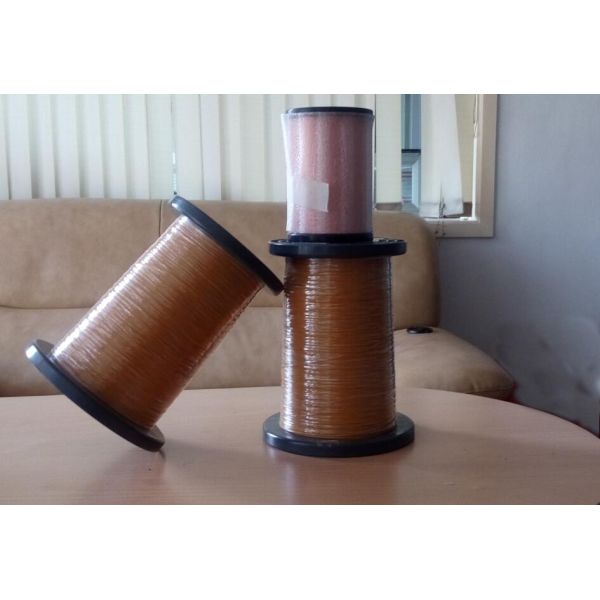

Transformer Using TIW-B Triple Insulated Copper Winding Wire
Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
