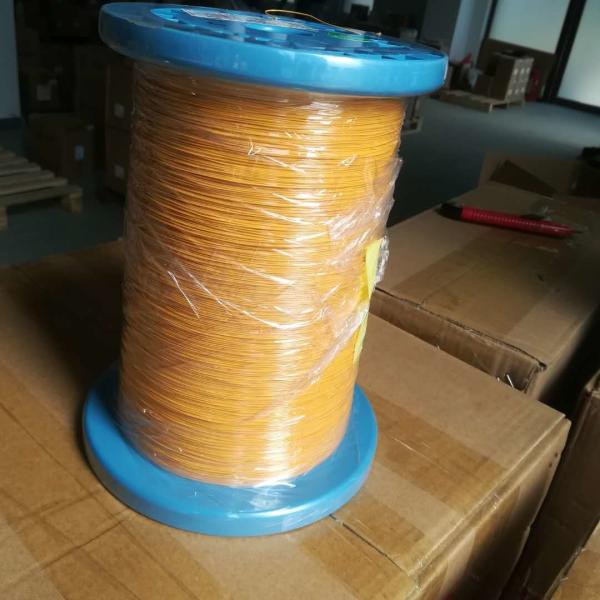

TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer
TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer
Specifications
Brand Name :
RVYUAN
Model Number :
0.15mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
3000 meter
Price :
Negotiation
Payment Terms :
T/T/Paypal
Supply Ability :
1Ton/Month
Delivery Time :
7
Packaging Details :
Carton
Product Name :
TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer
Thermal rating :
130
Insulation Material :
PET+Nylon
Diameter :
0.15mm
Conductor material :
Copper
Key word :
TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer
Description

TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer

Triple insulated wire is specifically designed to withstand and safely handle high voltages. The multiple layers of insulation in triple insulated wire provide enhanced protection and insulation properties, making it suitable for use in high voltage applications.

The combination of the base insulation, reinforced insulation, and barrier insulation in triple insulated wire helps to prevent electrical leakage, reduce the risk of short circuits, and improve the overall safety and reliability of the wire. These layers of insulation are chosen for their superior dielectric strength and electrical resistance, allowing the wire to withstand high voltage levels without breakdown or failures.

Characteristics

Test Standard

Conclusion

Bare Wire Diameter

0.15±0.008MM

0.145-0.155

Overall Diameter

0.35±0.020MM

0.345-0.355

Conductor Resistance

879.3-1088.70Ω/KM

1043.99Ω/KM

Breakdown voltage

AC 6KV/60S no crack

OK

Elongation

MIN:15%

19.4-22.9%

Solder ability

420±10℃ 2-10Secs

OK

Adhesion

Pull and break at a constant speed, and the exposed copper of the wire should not exceed 3mm

Key word

TIW -B ISO/UL 0.15mm 0.2mm 0.3mm TIW wire ETFE/PET Triple Insulated Wire

TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer
