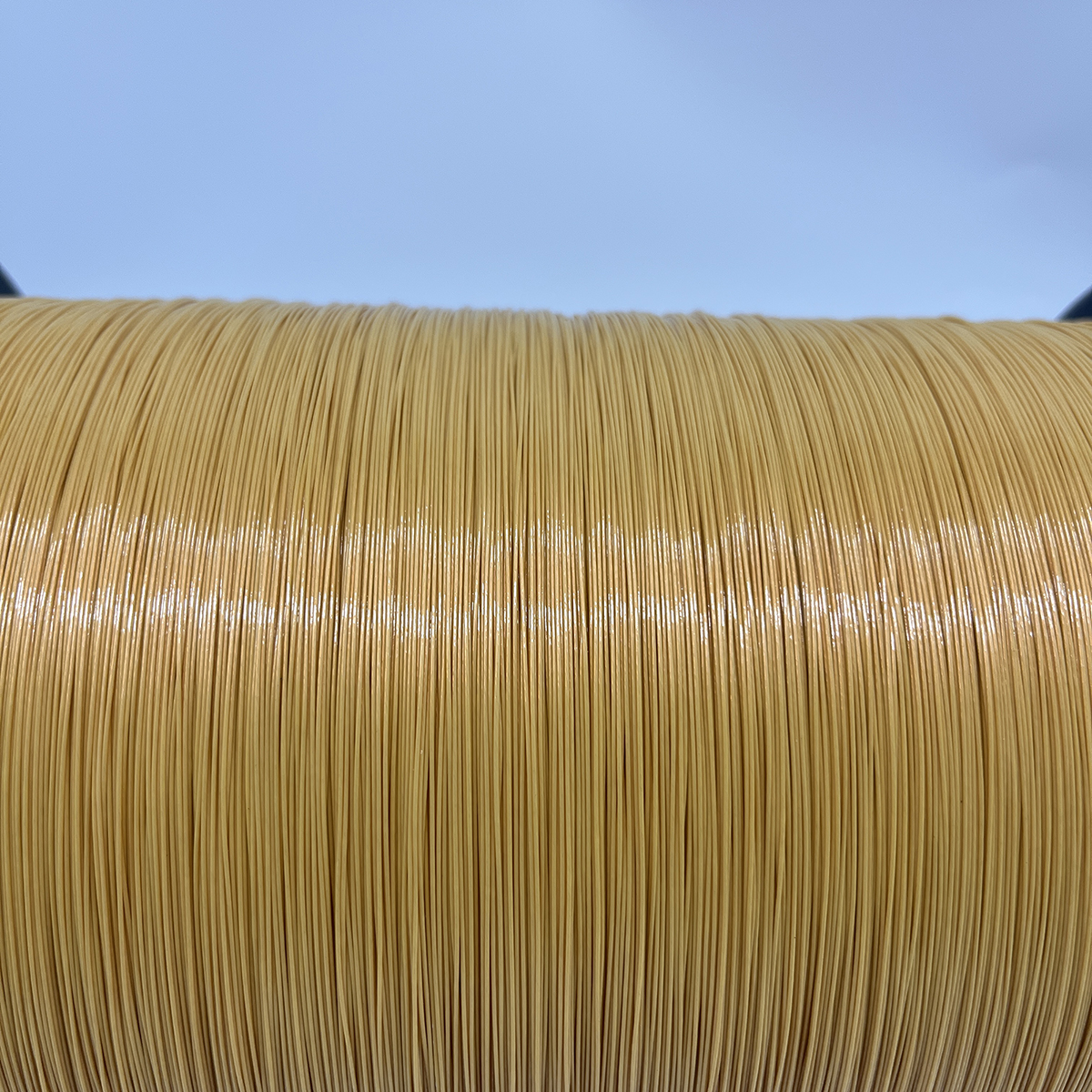

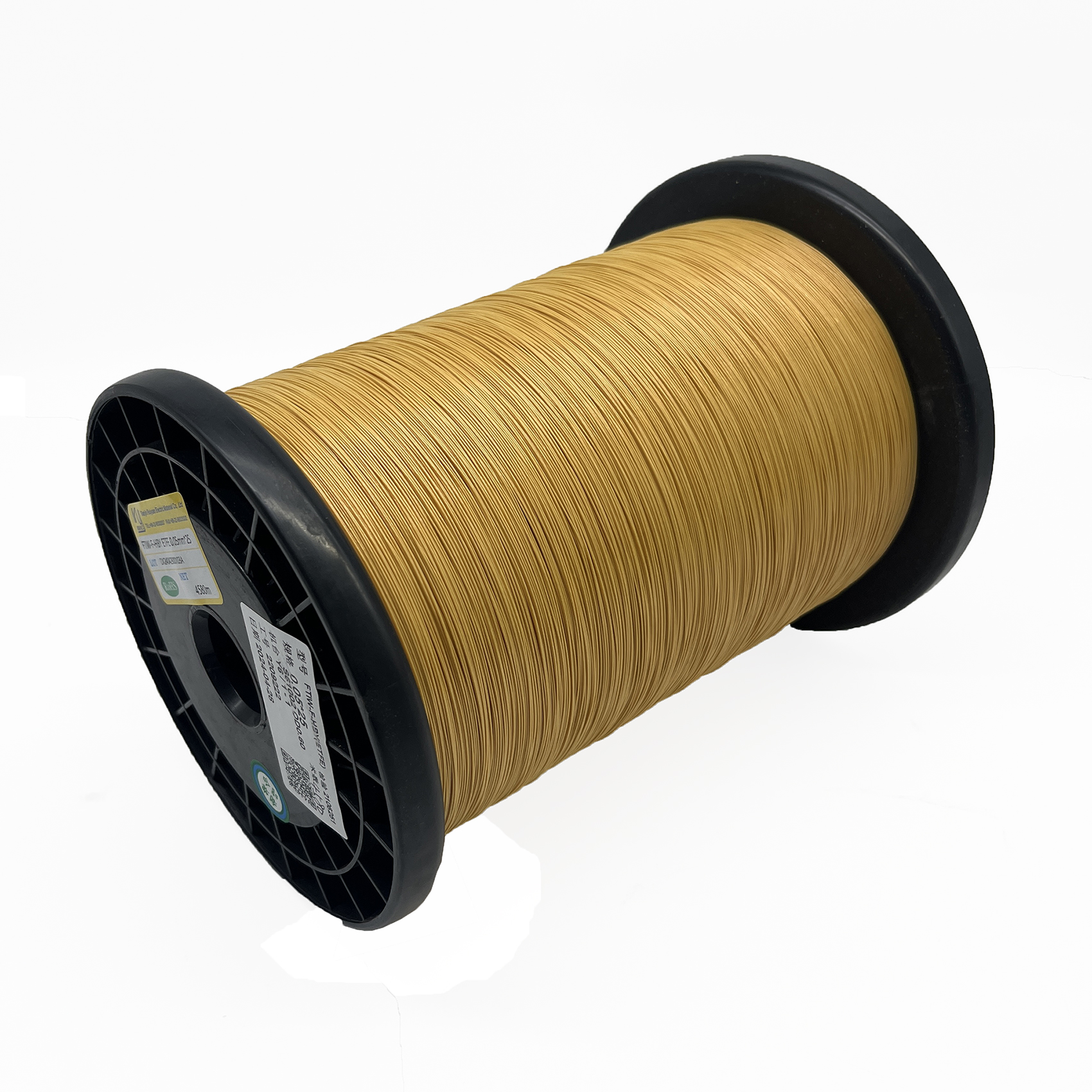

Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Specifications
Diameter :
CUSTOM
conductor diameter :
0.05MM
Application :
High voltage transformer/high frequency inductors
Product name :
0.05mm*260 ETFE Coated Teflon Triple Insulated Litz Wire
Strands :
custom
Payment Terms :
T/T
Conductor Material :
Copper
Overlap rate :
50%
example :
0.05mm*260
Single Wire Size :
0.05
Thermal Class :
180
Outer Diameter :
max 1.35
Brand Name :
Rvyuan
Insulation Material :
ETFE
Place of Origin :
Tianjin, China
Conductor Type :
Solid
Certificate :
UL/SGS
Type :
Insulated
Breakdown voltage :
6000V
Model Number :
custom
Insulation :
FTIW
Rated Voltage :
180
MOQ :
3000m
Description
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Product Specifications
Single wire diameter (mm) 0.05
No. of strands 260
Cover material FTIW
Key Performance Advantages
  • Reduced Skin Effect: Litz wire construction minimizes skin effect at high frequencies, enabling more efficient current distribution across the wire for superior RF application performance.
  • Lower Losses: The combination of litz construction and specialized insulation results in reduced resistive losses compared to solid or standard insulated wires, ideal for high-efficiency applications.
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Quality Control Test Results
Item Standard Test value Result
Conductor outer diameter (mm) 0.051-0.058 0.052 ok
Conductor diameter (mm) 0.050±0.003 0.050 ok
Overall diameter (mm) Max 1.35 1.30 ok
Resistance (Ω/Km at 20℃) Max. 40.6 34.82 ok
Breakdown voltage (V) 6000 13000 ok
Applications
Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor

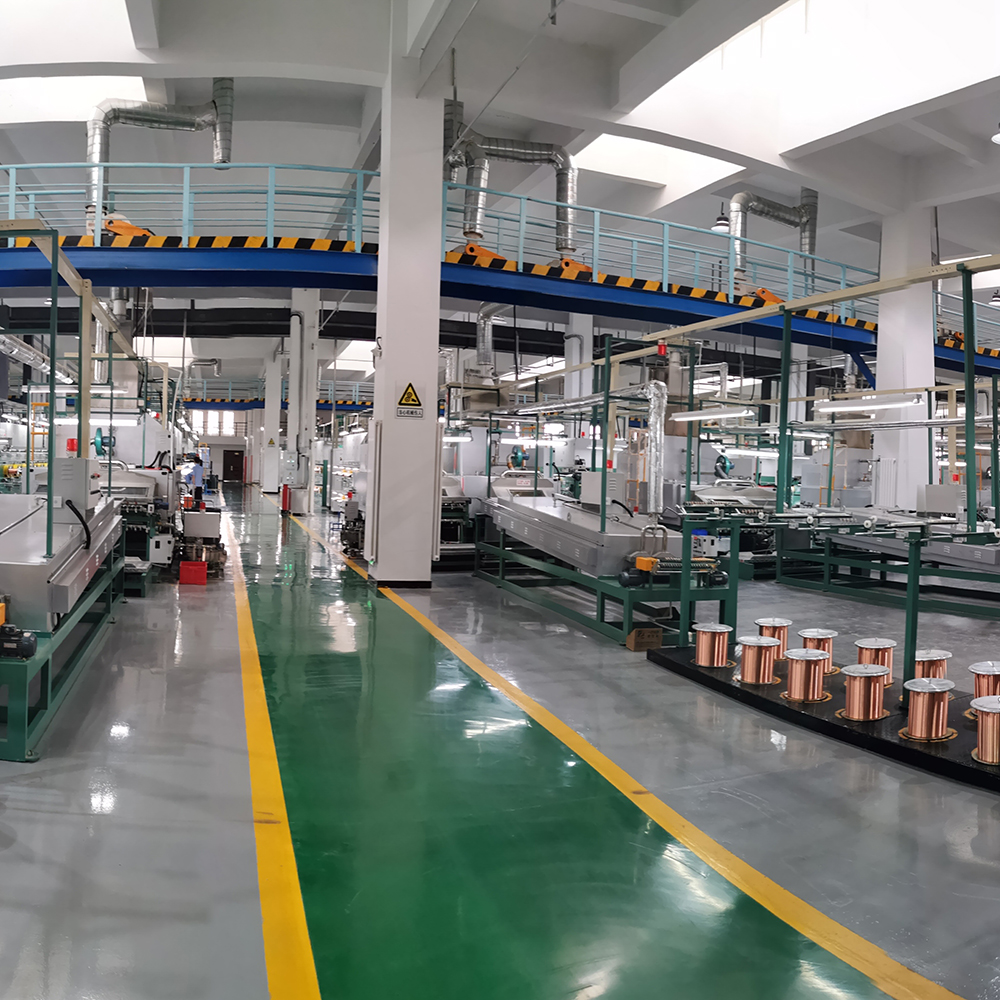

Manufacturing Process

Single Wire Drawing

Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor

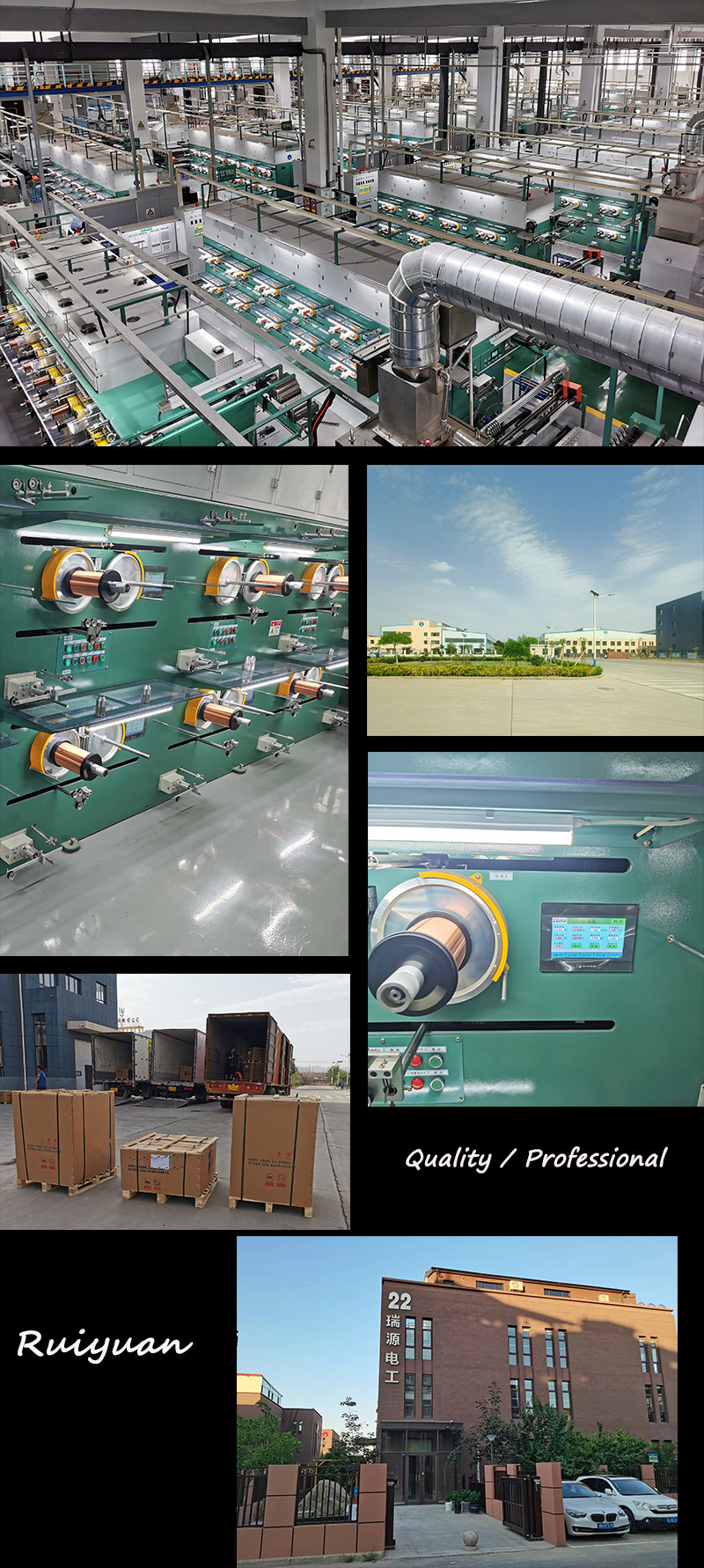

About RUIYUAN

Established in 2002, Ruiyuan has dedicated over 24 years to answering one fundamental question: 'How to Satisfy Customers?' This commitment has driven our expansion from fine enameled copper wire to comprehensive product lines including litz wire, USTC, rectangular enameled copper wire, triple insulated wire, and guitar pickup wire - totaling 6 main types with over 20 varieties of magnet wire.

We provide One Stop Purchase Service with cost-effective pricing, ensuring quality is never a concern. Our mission is to help reduce your costs, save your time, and establish long-term Win-Win cooperation.

For two decades, we've pursued our operational philosophy: 'Customer Oriented, Innovation brings more Value.' This isn't just a slogan - it's embedded in our DNA. Unlike ordinary magnet wire providers who offer only specified size ranges, we are solution providers who bring professional expertise in wires, insulation materials, and your specific applications.

Custom 0.05mm*260 ETFE Coated Triple Insulated Litz Wire for Inductor
Frequently Asked Questions
Can I get samples for testing before bulk order?

Yes, samples are available free of charge, though express shipping costs are the responsibility of the buyer.

What is your lead time?

Small sample orders: 3-5 working days; Large orders: within 15 working days after order confirmation.

What are your trade terms?

We accept EXW, CPT, FOB, CIF, DDU, and DDP terms.

What are your payment terms?

We accept T/T, D/P, D/A, L/C, and PayPal.

What express services do you use?

We work with FedEx, DHL, TNT, and UPS, offering significant discounts up to 80%.
