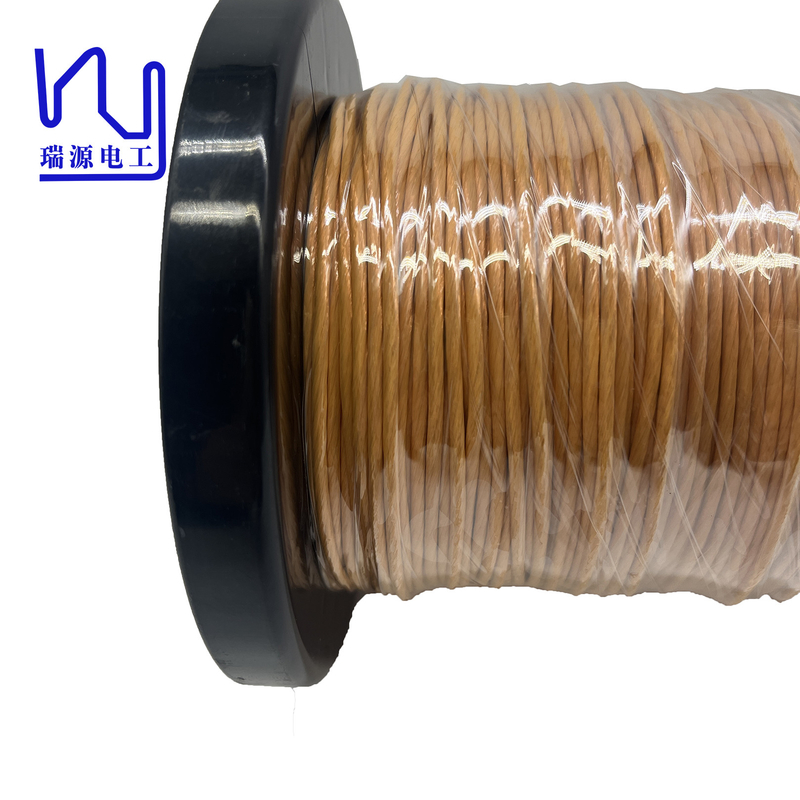

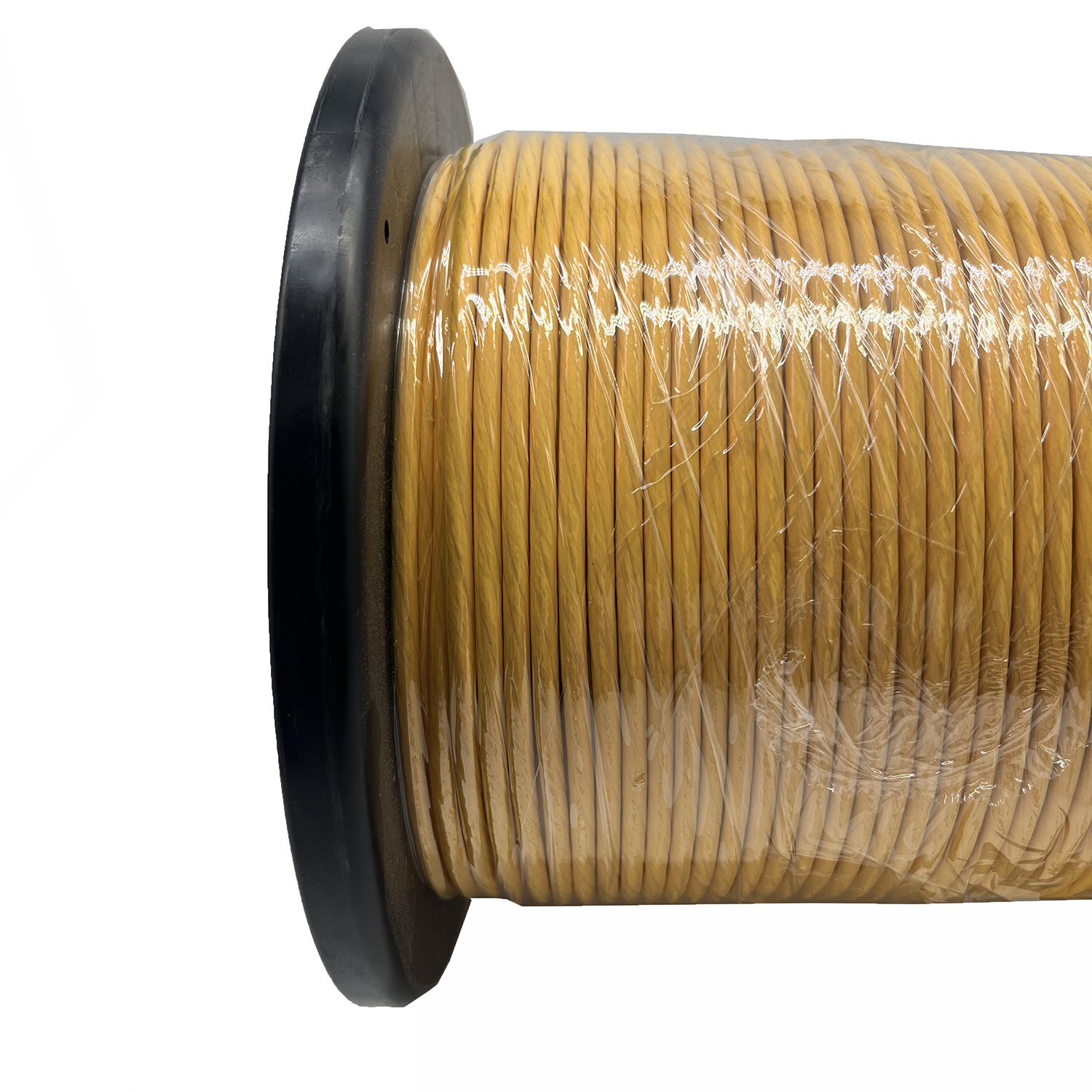

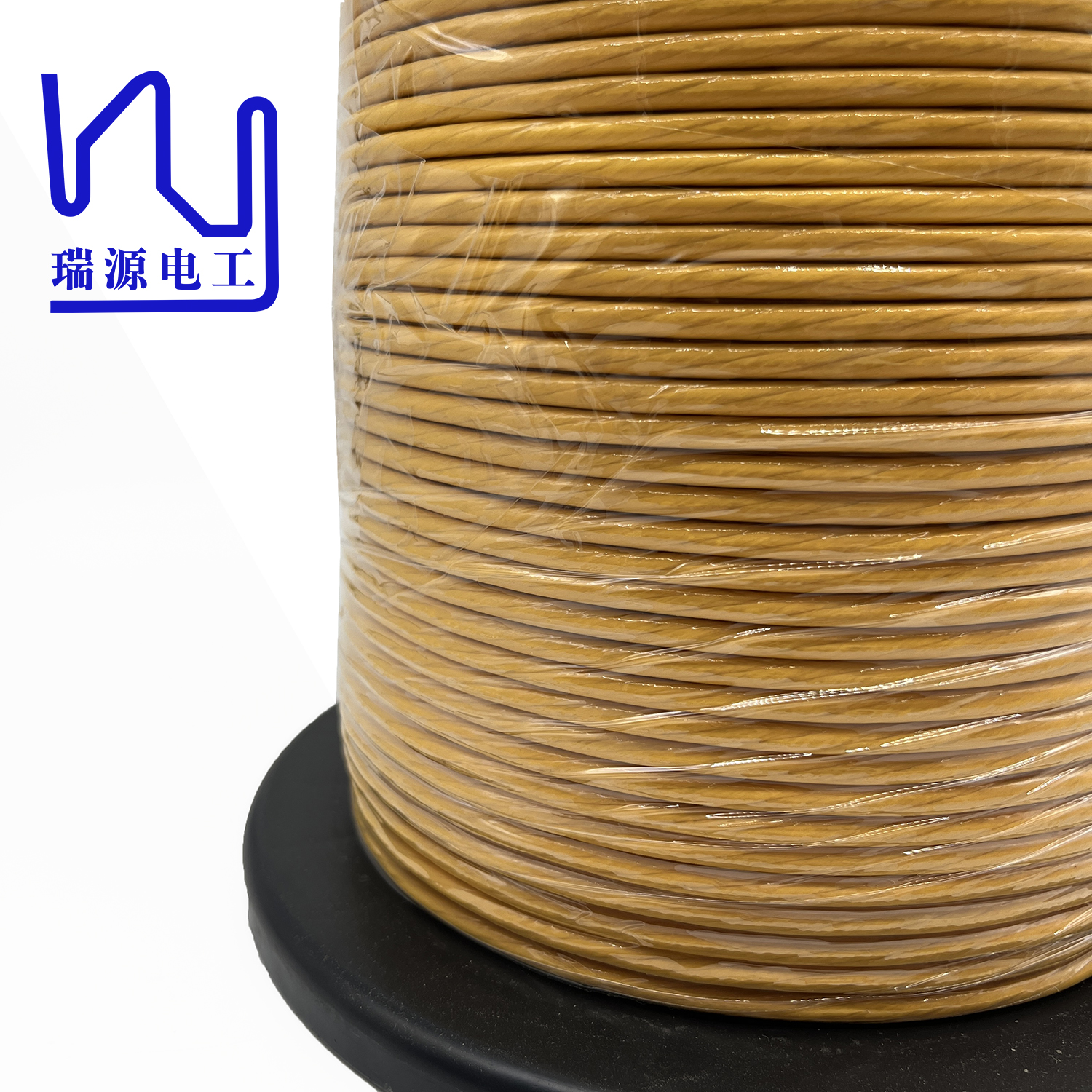

Teflon Coated Triple Insulated Wire designed for high-performance transformer applications requiring superior insulation and thermal properties.

• Production standard range: 0.1-1.0mm diameter
• Withstand voltage class: Class B 130℃, Class F 155℃
• Excellent withstand voltage characteristics with breakdown voltage greater than 15KV
• Obtained reinforced insulation certification
• No need to peel outer layer for direct welding, solderability 420℃-450℃≤3s
• Superior abrasive resistance with static friction coefficient ≤0.155
• Compatible with automatic winding machine high-speed winding
• Resistant to chemical solvents and impregnated paint
• Rated working voltage: 1000VRMS, UL certified
• High strength insulation layer toughness, resistant to repeated bending stress

These wires are ideal for switching transformers, information and telecommunications equipment, game machines, consumer goods, inverters and similar devices:

• SMPS for printers, facsimile, memory, computers, monitors, inverters, game machines
• Battery Chargers for digital cameras, portable telephones, 8mm VCR, AC adapters, personal computers, DVD players
• Operating Frequencies: Typically 85 kHz to 200 kHz with maximum of 500 kHz capability

Customization Available: These TIW wires can be customized to your detailed requirements. Please contact us with any specific requests.

Ruiyuan was established in 2002 and specializes in high-quality wires including enameled copper wire, flat enameled magnet wire, silk covered Litz wire, and triple insulated wire. We operate 19 high-speed TIW production lines with a monthly production capacity of 150 million meters, making us the largest producer in China. Our proprietary insulation material formula is protected by intellectual property rights, and our triple insulated wires have passed UL, German VDE, and China CQC authority certifications, including UL insulation system approval. Our experienced engineering and technical team consistently delivers quality products and services.
