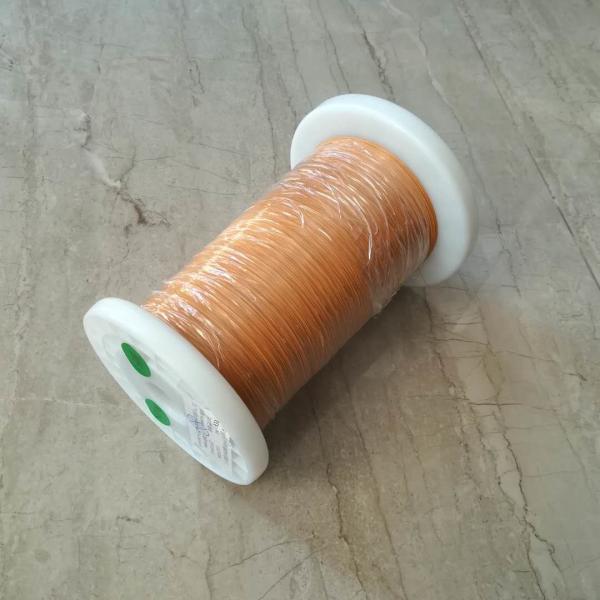

Triple Insulated Layers Copper Wire UL Certificated Solid 1000 Vrms
Triple Insulated Layers Copper Wire UL Certificated Solid 1000 Vrms
Specifications
Brand Name :
Ruiyuan
Model Number :
0.071mm*270
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
3000 meter
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms
Thermal rating :
130
Insulation Material :
UEW
Diameter :
0.071mm*270
Conductor material :
Copper
Key word :
Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms
Description

Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms

Triple insulated wire is suitable for occasions that require high withstand voltage and high corrosion resistance, such as electric power, communication, aerospace and other fields.

Triple insulated wire is widely used in the manufacture of high-end electrical appliances such as micro-motor windings and high-frequency transformers.

The electrical properties of this wire depend on its insulating material.

Test Items Requirements Test Data
1st Sample 2nd Sample 3rd Sample
Appearance Smooth & Clean OK OK OK
Single Thickness of Insulation 0.114±0.01mm 0.121 0.119 0.120
Overall Diameter ≤ 1.76±0.12mm 1.75 1.76 1.71
Resistance ≤18.85 Ω/Km 16.40 15.43 16.24
Elongation ≥ 15% 38.6 37.4 37.2
Breakdown Voltage Min.10KV OK OK OK
Adherence No cracks visible OK OK OK
Heat Shock 240℃ 2min No breakdown OK OK OK

Product Name

Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms

Size

0.071mm*270

Insulation

Polyurethane

Thermal Rating

Class 130

Key word

Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms


Triple Insulated Layers Copper Wire UL Certificated Solid 1000 Vrms
