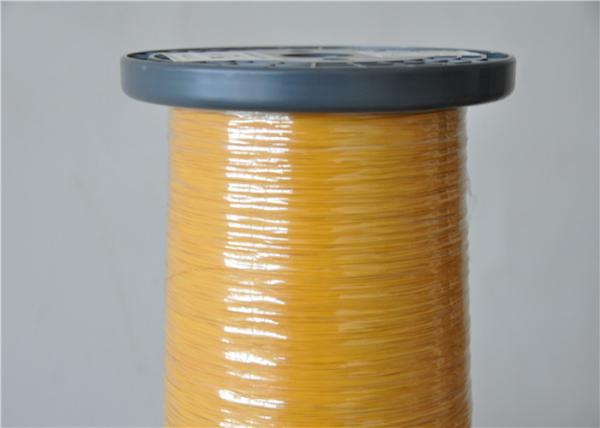

Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision
Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision
Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision
Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision
Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision
Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision
Specifications
Brand Name :
Ruiyuan
Model Number :
UL/ICE
Certification :
UL/ROHS/ICE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
30,000 meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
2-15 days
Packaging Details :
Carton with pallet
Type :
Insulated
Conductor Material :
Copper
Insulation Material :
PET
Conductor Type :
Solid
Rated Temperature :
130
Solderability :
Directly
Rated Voltage :
1000 Vrms
Description

HIGH QUALITY UL/ICE CERTIFICATED TRIPLE INSULATED WIRE TEX ENAMELLED COPPER WINDING WIRE

We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.

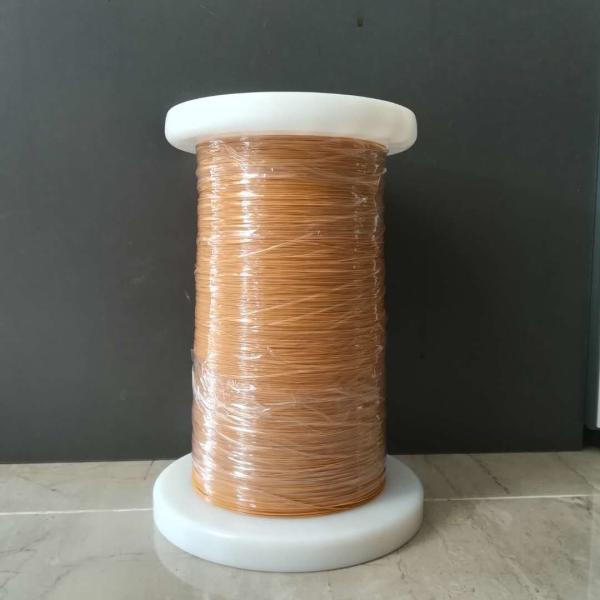

Solderable Triple Insulated Wire TEX Enamelled Copper Winding Wire High Precision

Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.10 ±0.008 0.30 ±0.02 2264.7 15
0.12 ±0.008 0.32 ±0.02 1786.0 15
0.14 ±0.008 0.34 ±0.02 1286.0 15
0.15 ±0.008 0.35 ±0.02 1111.0 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757.0 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.20 ±0.008 0.40 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549.0 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.30 ±0.010 0.50 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230.0 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.40 ±0.010 0.60 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.50 ±0.010 0.70 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.60 ±0.020 0.80 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.70 ±0.020 0.90 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.80 ±0.020 1.00 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.90 ±0.020 1.10 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1.00 ±0.030 1.20 ±0.02 23.3 25
