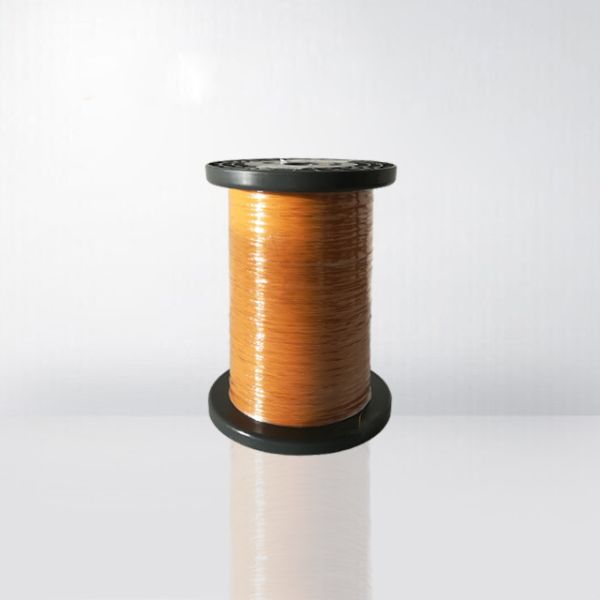

Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
Price :
Negotiation
Payment Terms :
Negotiation, T/T, L/C
MOQ :
Different types with differet MOQ
Packaging Details :
Spool with carton
Delivery Time :
2-15 workding days
Supply Ability :
Satisfy your demand
Model Number :
0.2 - 1.0mm
Diameter :
0.2mm-1.0mm
Conductor :
Round copper
Stock :
Available
Solderability: :
Directly
Description

CLASS B F INDUSTRIAL GRADE TRIPLE INSULATED WIRE 0.2-1.0 MM ENAMELED COPPER WIRE FOR TRANSFORMER

Triple Insulated Wires have a prominent feature: no need of interlayer insulation tape or barrier tape between the primary and secondary coils of a transformer. This positive feature of TIW to downsize switching transformers, and promises high production efficiency and cost reduction. TIW paves the way to the design of the most modern switching transformers.

FEATURES AND BENEFITS
a) Excellent resistance to abrasion and solvent,
b) Excellent electricity performance
c) Excellent heat shock, adherence and flexibility,
d) High cut through
APPLICATIONS
MPS for units of Printer, Facsimile, Memory, Computer, Monitor, Inverter,,Game Machine,Battery Charger for assemblies of Digital Camera, Portable Telephone, 8mm VCR,AC Adapter, Personal Computer, DVD,Operating Frequencies: Typically 85 kHz to 200kHz but level with a maximum of 500kHz

Class B / F Industrial Grade Triple Insulated Wire 0.2 - 1.0mm Enameled Copper Wire For Transformer
SPECIFICATION

Nominal
conductor
diameter
(mm)

Tolerance
(mm)

Typical
overall
diameter
(mm)

Maximum
overall
diameter
(mm)

Maximum
conductor
resistance
(/km)

Unit Weight
(kg/km)

0.20

±0.008

0.420

0.460

607.6

0.409

0.21

±0.008

0.430

0.470

549.0

0.444

0.22

±0.008

0.440

0.480

498.4

0.478

0.23

±0.008

0.450

0.490

454.5

0.513

0.24

±0.008

0.460

0.510

416.2

0.550

0.25

±0.008

0.470

0.510

382.5

0.588

0.26

±0.010

0.480

0.520

358.4

0.628

0.27

±0.010

0.490

0.530

331.4

0.669

0.28

±0.010

0.500

0.540

307.3

0.713

0.29

±0.010

0.510

0.550

285.7

0.756

0.30

±0.010

0.520

0.560

262.9

0.802

0.32

±0.010

0.540

0.580

230.0

0.897

0.35

±0.010

0.570

0.610

191.2

1.050

0.37

±0.010

0.590

0.630

170.6

1.160

0.40

±0.010

0.640

0.680

145.3

1.353

0.45

±0.010

0.690

0.730

114.2

1.673

0.50

±0.010

0.740

0.780

91.43

2.028

0.55

±0.020

0.790

0.830

78.15

2.417

0.60

±0.020

0.840

0.880

65.26

2.842

0.65

±0.020

0.890

0.930

55.31

3.302

0.70

±0.020

0.940

0.980

47.47

3.796

0.75

±0.020

0.990

1.030

41.19

4.325

0.80

±0.020

1.040

1.080

36.08

4.890

0.85

±0.020

1.090

1.130

31.87

5.488

0.90

±0.020

1.140

1.180

28.35

6.123

0.95

±0.020

1.190

1.230

25.38

6.719

1.00

±0.030

1.240

1.280

23.33

7.495
