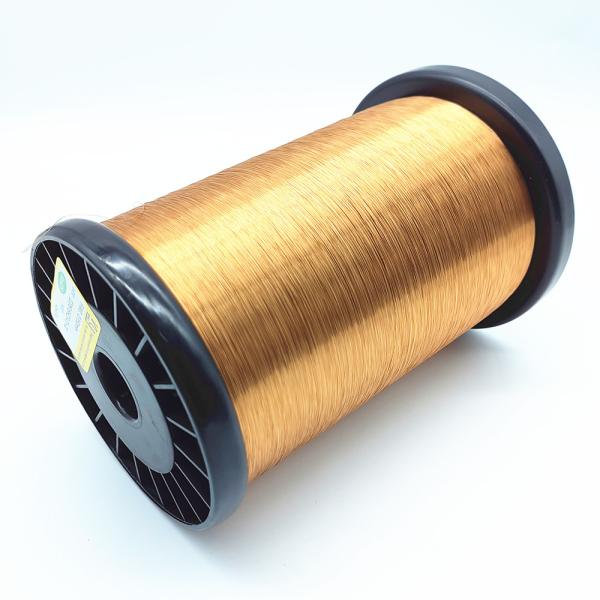

Magnet 2uew155 0.10mm Enamel Coated Copper Wire Solderable
Magnet 2uew155 0.10mm Enamel Coated Copper Wire Solderable
Specifications
Brand Name :
Ruiyuan
Model Number :
0.10mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
20 kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
2UEW155 0.10mm High Quality Enameled Copper Wire Solderable
Thermal rating :
155/180
Insulation Material :
Amide imide
Diameter :
0.10mm
Conductor material :
Copper
Key word :
2UEW155 0.10mm High Quality Enameled Copper Wire Solderable
Description

2UEW155 0.10mm High Quality Enameled Copper Wire Solderable

We provide high quality magnet wire with UEW, AIW, EIAIW and PIW insulation, size range from 0.011mm to 2.00mm.

  1. As a leading supplier of enamel copper wire, we have earned a reputation for providing a superior customer experience and first-class quality and cooperation.

  2. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82. Locate in Chinese second largest port city which has great convenient transportation network to the world. Ruiyuan has a heritage of innovation, along with advancements in enameled wire, our company has grown through an unwavering commitment to integrity, service and responsiveness to our customers.

Name 2UEW155 0.10mm High Quality Enameled Copper Wire Solderable
Key word Enameled copper wire
Insulationh Enamel
Thermal rating 155/180
Diameter of the enameled copper wire 0.10mm
Type 2UEW155 0.10mm High Quality Enameled Copper Wire Solderable
Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Sample 3
Surface
Good
OK
OK
OK
OK
Bare Wire Diameter
0.100±
0.002
0.1
0.1
0.1
OK
0.002
Coating Thickness
≥ 0.011 mm
0.015
0.014
0.014
OK
Overall Diameter
≤ 0.118 mm
0.115
0.114
0.114
OK
Conductor Resistance
≤ 2.286 Ω/m
2.158
2.162
2.153
OK
Elongation
≥ 17 %
21
20
20
OK
Breakdown Voltage
≥ 650 V
1521
1324
1286
OK
Pinhole Test
≤5 hole/5m
0
0
0
OK
Continuity
≤40 hole/30m
0
0
0
Test Items
Technical Requests
Results
Conclusion
Approved
Adhesive
Coating layer is good
OK
Cut-through
200℃ 2mins no breakdown
OK
Heat Shock
175±5℃/30min no crack
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK

Magnet 2uew155 0.10mm Enamel Coated Copper Wire Solderable

Magnet 2uew155 0.10mm Enamel Coated Copper Wire Solderable

Magnet 2uew155 0.10mm Enamel Coated Copper Wire Solderable

Magnet 2uew155 0.10mm Enamel Coated Copper Wire Solderable
