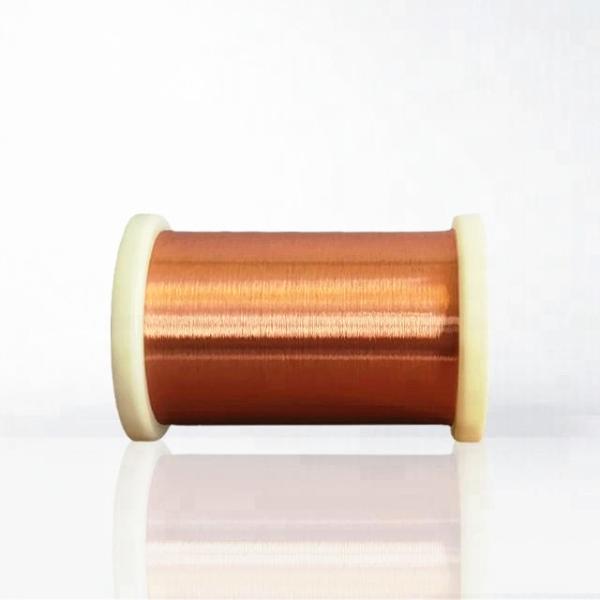

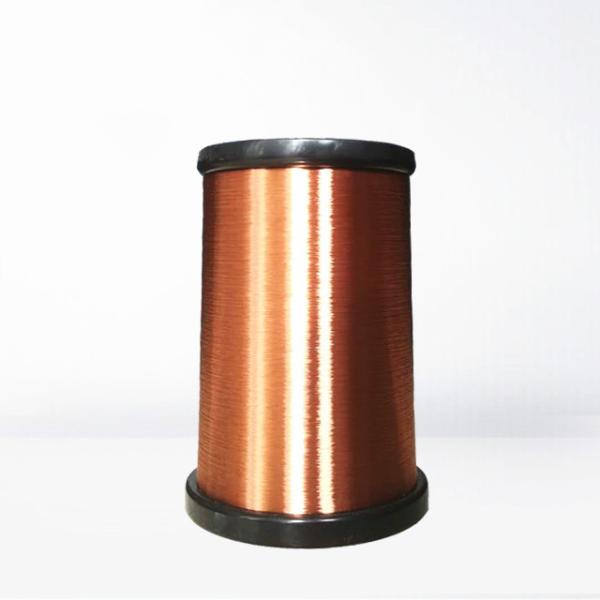

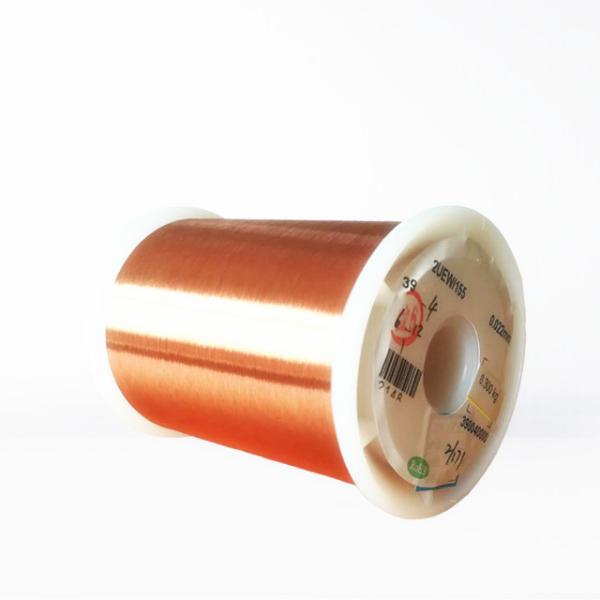

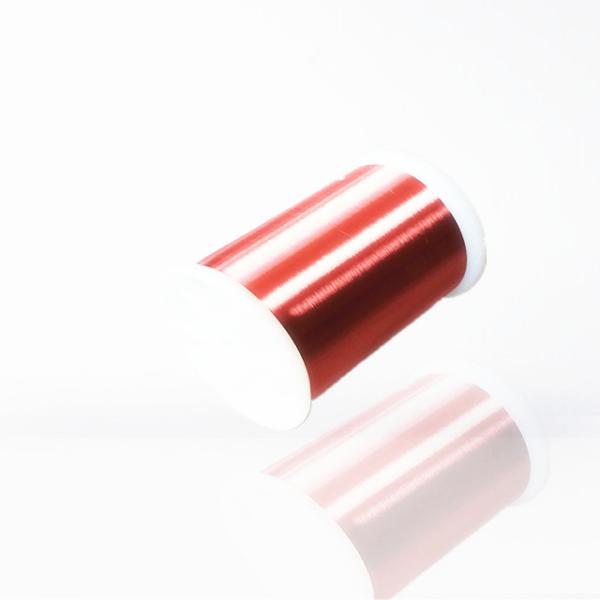

Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
Price :
Negotiation
Payment Terms :
Negotiation
MOQ :
Different types with differet MOQ
Packaging Details :
Spool with carton
Delivery Time :
2-15 workding days
Supply Ability :
Satisfy your demand
Model Number :
Class H
Conductor Type: :
Round copper
Delivery time :
2-30days
Size Range :
0.012-0.8mm
Thermal class :
180℃
Description

POLYESTER IMID ENAMELED MAGNET COPPER WIRE CLASS H H 0.012 - 0.8mm FOR MOTOR
One of the primary properties that make Enamelled Aluminium Wire and Enamelled copper wire desirable for wide applications is the thin enameling insulation. Transformers, motors and generators are all machines based on the coil, which is a device that generates magnetic fields and electrical currents using large coils of wire. The smaller these devices are, the stronger they are. Because Enameled Aluminum Magnet Wire and Enameled copper Magnet Wire is insulated by a thin coat of enamel instead other types of thicker insulation like paper, fibre glass, mica etc. As Enamel Aluminum Wire or Enamel Copper Wire takes up less space in coil formation so it makes more effective and compact coils with higher efficiency.
FEATURES AND BENEFITS

  • High mechanical property

  • Higher thermal property

  • Good resistance to refrigerant and freon

  • Suitable for windings that are subjected to constantly high temperature and mechanical stress

  • Good chemical resistance

  • Outstanding mechanical and chemical property

APPLICATIONS

  • Small type Gerators ( For no-Utility generation )

  • Standard motor

  • Motors for refrigeration ( Cold storage, Coolers & etc.)

  • Motors for electric tool ( Grinders drills, saws, planers & etc. )

  • Other special moter

Polyester Imide Enamelled Magnet Copper Wire Class H 0.012 - 0.8mm For Motor

SPECIFICATION

Name Enameled Copper Wire 
Diameter 0.012-4.5mm
Standard IEC60317
Test Item Unit Technical Requirement Test Result
Appearance   bright and clean, Uniform color, Ok
Overall Diameter mm <=1.706mm 1.687
Conductor Diameter mm 1.600±0.016mm 1.603
Roundness Tolerance mm <=0.016  mm 0.003
Thickness of insulation film mm >= 0.071mm 0.084
Elongation   >=32 % 42%
spring-back angle   <=30 26
Flexibility and adhesion winding test 1D 1
Peel Twist 69 OK
heat shock   5mm ok
cut-through resistance   320C, 2Min no breakdown 2
Resistance to solvent   1H 1
Breakdown Voltage KV >=2.7 KV 6.7 7.2 6.2 7.8 7.0
scratch resisting(Average) N 14.90     N 29.5
scratch resisting(Min) N 12.60    N 19.3 
package   Meet the export standards Ok
Enamel Film continuity   <=25 /30m 1
Quality Control Result  

Ok
