28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
Specifications
Brand Name :
UCHI
Model Number :
30JM30K/B2847
Certification :
Completed
Place of Origin :
Dongguan China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs stcoks
Delivery Time :
5-7 days
Packaging Details :
Standard
Number of poles :
4
Operating Range :
9V~16V/9C~26V
Rated current mA :
130/70
certificate :
3C
No-load speed r/min :
7300
No-load current mA :
270/180
Rated speed r/min :
5500/6000
Rated power W :
7.3/8.0
Description
30JM30K/B2847 28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
Features
1.Brushless motor built-in driver, with a positive inversion, speed control, brake (brake) function.
2.28mm OD Planetary Gearbox,
Permissible Load Range: 0.3N.m~3.0N.m
28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

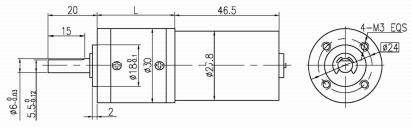

Dimensions

28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

Brushless Motor Technical Data

TYPE Number
of poles		 Number
of phase		 Operating
Range		 Rated
voltage
VDC		 No- load
speed
r/min		 No- load
current
mA		 Rated
torque
g.cm		 Rated
speed
r/min		 Rated
current
mA		 Rated
power
W
B2847-1273 4 3 9V~ 16V 12 7300 270 130 5500 130 7.3
B2847-2473 4 3 9V~26V 24 7300 180 130 6000 70 8.0

Brushless Gear Motor Technical Data

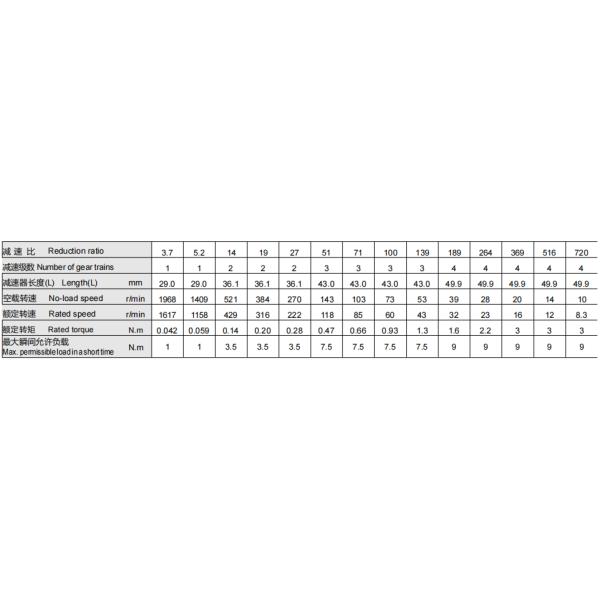

1.B2847-1273 BLDC Motor

28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

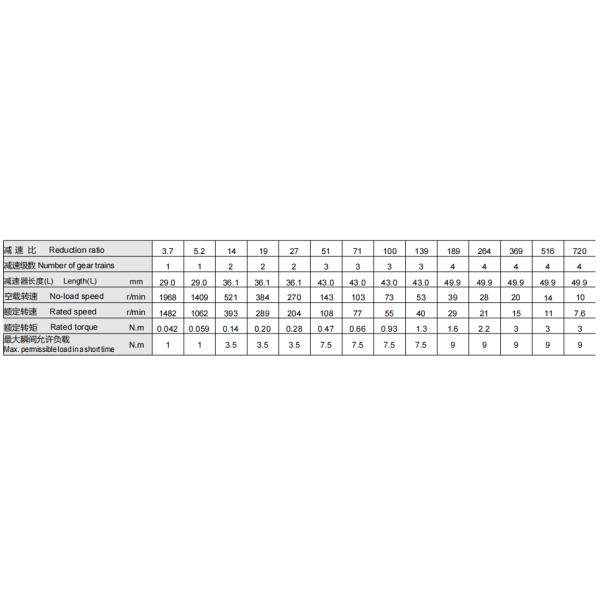

2.B2847-2473 BLDC Motor

28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

Wire Diagram

28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

PIN 1# (Blue) Brake control
PIN 2# (Orange) PWM speed regulation: Input a 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 3# (Black) Negative pole of power supply
PIN 4# (White) Forward and Reverse Rotation: Suspended steering is CCW, short circuited to ground steering is CW.
PIN 5# (Green) Feedback n=60 * F/P, where F is the feedback frequency and P is 4 pairs of motor pole pairs.
PIN 6# (Red) Positive pole of power supply
Connection line length 200mm

28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
