Specifications
Brand Name :
Heling Machine
Model Number :
M12-300u
Certification :
10221508
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Welcome to Inquire
Payment Terms :
T/T
Supply Ability :
20+SET+PER month
Delivery Time :
30-60 Work days
Packaging Details :
wooden box
Name :
U Bolt Making Machine
Usage :
After the wire is input, it is automatically formed, threaded, and precisely cut, efficiently producing finished U-bolts.
After-sales service provided :
Online support,Video technical support
Core components :
Bearing, motor, pump
Core selling points :
Easy to operate, long service life, high productivity, patented product, automatic, multi-functional, high precision
Voltage :
380V/440V/415V,50HZ/60HZ
Warranty :
1 Year
Package :
wooden case
Color :
Customizable
Description
Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring

Key Features
  • Real-time production data statistics, automatically counting output and qualified rate
  • PLC touch screen operation, supporting parameter adjustment and fault alarm
  • Remote fault diagnosis function, supporting after-sales technical personnel to solve problems online
  • Adjustable production speed, matching the rhythm of the entire assembly line
Technical Specifications
Model

Max.Thread Diamete

(mm)

Max.U-Bolt Blank Length

(mm)

Main Motor(KW)

Straighten The Motor(KW)

Froming Motors(KW)

Weight

(KG)

Capacity

(PCS/mm)

Volume(L*W*H)(m)
M6-200U 6 200 5.5 2.2 2.2 2300 50-70 2.3*0.9*1.6
M8-300U 8 300 11 3 3 2800 40-65 3.5*1.1*1.95
M10-220U 10 220 11 3 3 3400 40-60 3.6*1.2*1.95
M10-300U 10 300 11 3 3 3500 40-60 3.6*1.2*1.95
M10-400U 10 400 11 3 3 3800 40-60 3.75*1.2*1.95
M10-500U 10 500 11 3 3 4200 40-60 3.9*1.2*1.95
M10-620U 10 620 11 3 3 4800 40-60 4.0*1.2*1.95
M12-300U 12 300 18.5 4 4 5000 40-55 4.2*1.4*2.25

M12-400U

 12 400 18.5 4 4 5800 35-50 4.2*1.4*2.25

M12-500U

 12 500 18.5 4 4 6800 35-45 4.6*1.5*2.35

M12-600U

 12 600 18.5 4 4 7200 35-45 4.8*1.5*2.35

M14-300U

 14 300 22 5.5 5.5 6200 35-50 4.3*1.5*2.35

M14-400U

 14 400 22 5.5 5.5 6800 35-50 4.3*1.5*2.35

M14-500U

 14 500 22 5.5 5.5 7500 35-50 4.5*1.5*2.35

M14-600U

 14 600 22 5.5 5.5 7800 35-50 5.0*1.5*2.35

M14-800U

 14 800 30 5.5 5.5 11000 30-40 5.85*1.95*2.65

M16-300U

 16 300 30 7.5 7.5 9500 30-45 4.4*1.95*2.65

M16-400U

 16 400 30 7.5 7.5 10000 30-45 4.5*1.95*2.65

M16-500U

 16 500 37 7.5 7.5 10800 30-45 5.1*1.95*2.65

M16-600U

 16 600 37 7.5 7.5 12000 30-45 5.1*1.95*2.65

M16-800U

 16 800 37 7.5 7.5 16800 25-35 5.9*1.95*2.65

M20-400U

 20 400 45 11 11 14500 35-45 5.5*2.05*3.2

M20-600U

 20 600 45 11 11 16000 25-38 6.1*2.05*3.2

M20-650U

 20 650 45 11 11 16800 25-38 6.1*2.05*3.2

M20-800U

 20 800 45 11 11 19000 25-30 6.5*2.25*3.2

M20-1000U

 20 1000 45 11 11 22000 25-30 6.8*2.25*3.2

M24-400U

 24 400 45 11 11 14500 30-45 5.5*2.25*3.2

M24-600U

 24 600 45 11 11 17000 25-38 6.1*2.25*3.2

M24-800U

 24 800 45 11 11 20800 25-30 6.5*2.25*3.2

M24-1000U

 24 1000 45 11 11 23000 25-30 6.8*2.35*3.2

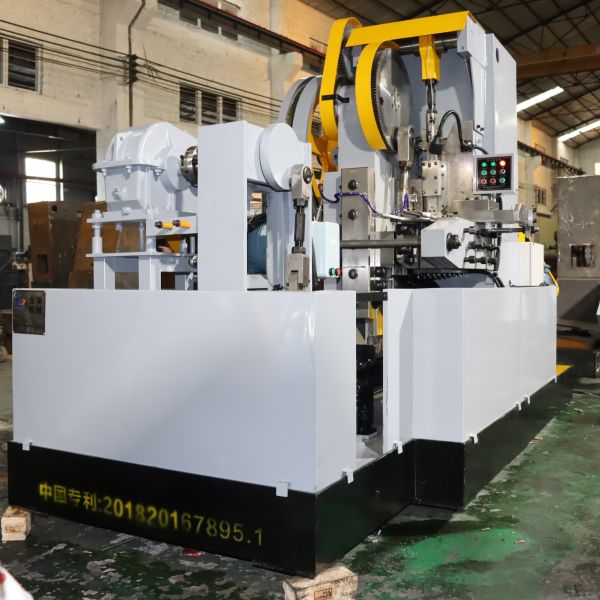

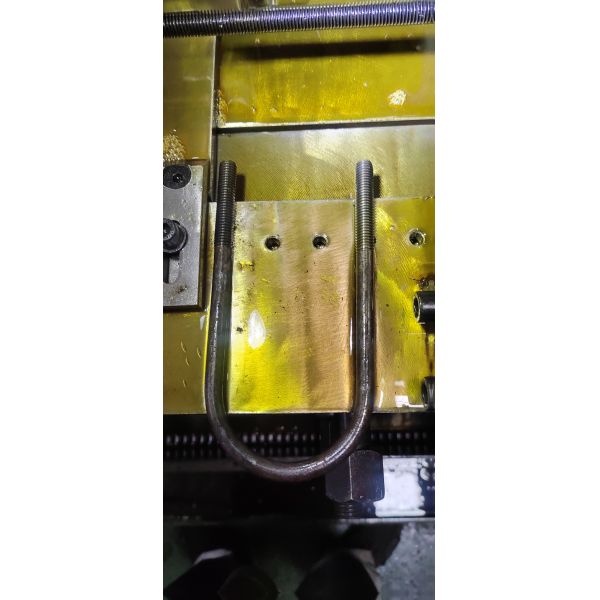

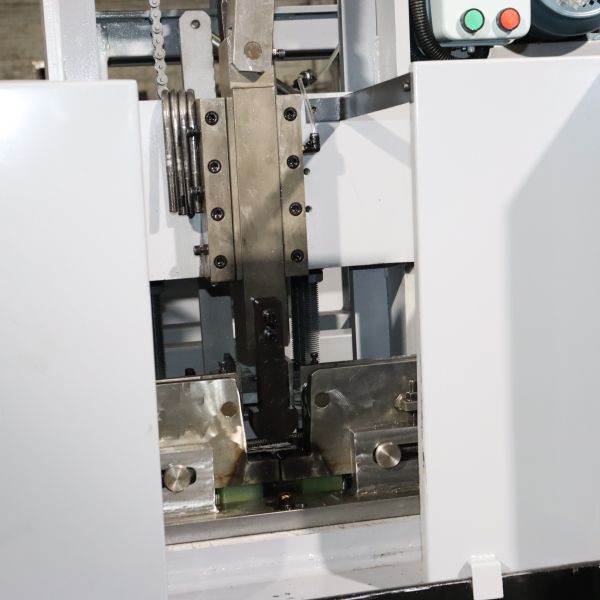

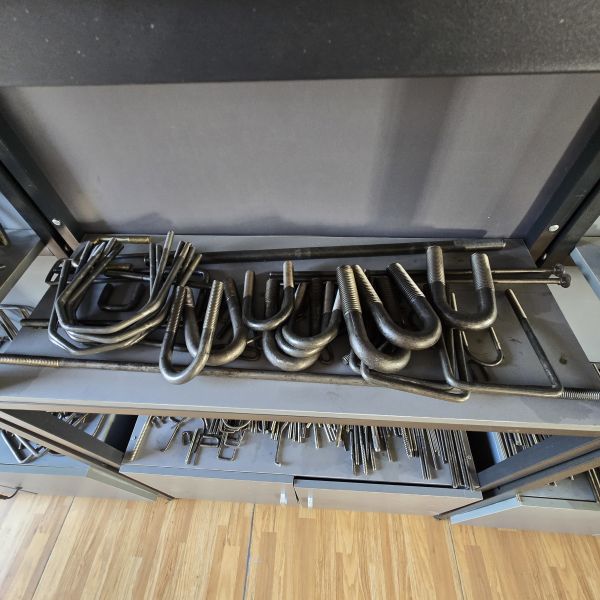

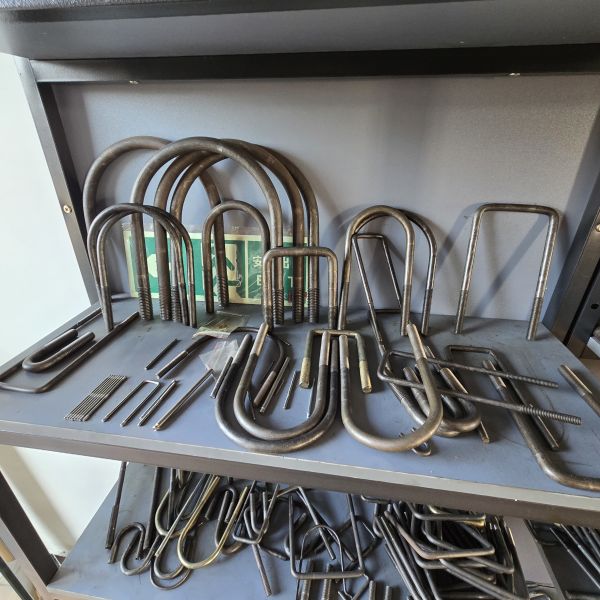

Product Images
Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring
Quality Advantages
  • More accurate data management: real-time statistics of output, qualified rate and other core data
  • More flexible production scheduling: adjustable speed adapts to different production line rhythms
Factory Showcase
Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring
International Exhibition
Smart U-Bolt Maker with Touch Screen: Real-Time Production Data Monitoring
