Specifications
Model Number :
M16-200U
Usage :

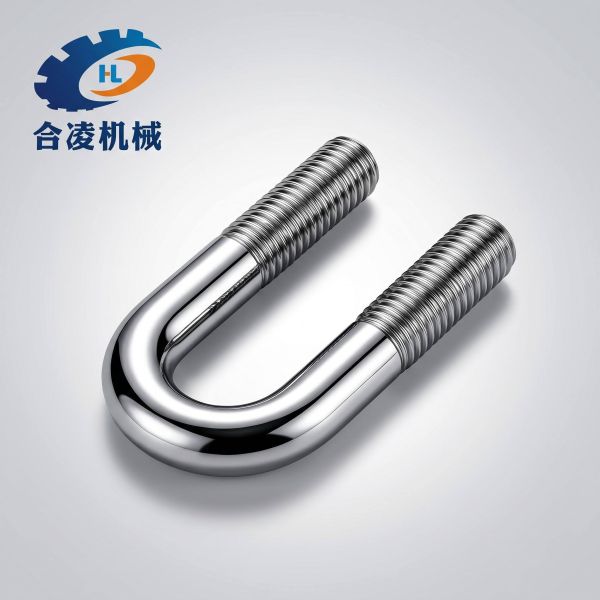

After the wire is input, it is automatically formed, threaded, and precisely cut, efficiently producing finished U-bolts.
Price :
Welcome to Inquire
After-sales service provided :
Online support,Video technical support
Supply Ability :
20+SET+PER month
Name :
U Bolt Making Machine
Place of Origin :
CHINA
Packaging Details :
wooden box
MOQ :
1pcs
Delivery Time :
30-60 Work days
Voltage :
380V/440V/415V,50HZ/60HZ
Payment Terms :
T/T
Warranty :
1 Year
Core selling points :
Easy to operate, long service life, high productivity, patented product, automatic, multi-functional, high precision
Core components :
Bearing, motor, pump
Color :
Customizable
Certification :
10221508
Brand Name :
Heling Machine
Package :
wooden case
Description

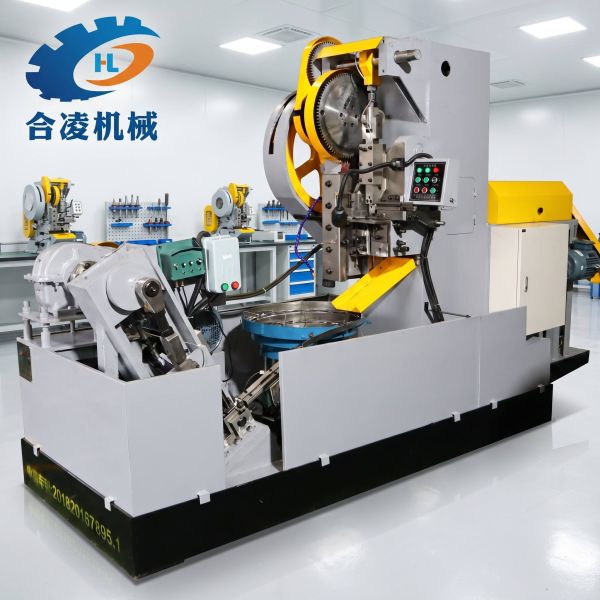

Space-saving Small U-bolt Making Machine (Φ3–Φ16mm)


Feature:

Fully Automated Mini Production Line
Integrates automatic feeding, straightening, bending, thread rolling (optional), and discharging—one-person operation, no manual intervention.
8-minute Rapid Mold Changeover
Modular tooling design enables quick specification switching, adapting to small-batch, multi-variety small U-bolt orders.
Energy-efficient Mini Servo Drive
Equipped with high-precision micro servo motor, power consumption only 1.5–3kW, reducing energy costs by 30% vs. traditional equipment.
Intelligent Touch Screen Operation
User-friendly interface with 12 groups of process parameter storage, real-time display of output/qualified rate, easy for novices to master.


Specification:

Model

Max.Thread Diamete

(mm)

Max.U-Bolt Blank Length

(mm)

Main Motor(KW)

Straighten The Motor(KW)

Froming Motors(KW)

Weight

(KG)

Capacity

(PCS/mm)

Volume(L*W*H)(m)
M5-60U 5 60 4 1.5 1.5 1400 70-90 2.8*1*1.8
M6-70U 6 70 5.5 2.2 2.2 1500 70-90 2.35*1.05*1.67
M6-150U 6 150 5.5 2.2 2.2 1600 70-90 2.45*1.05*1.67
M8-80U 8 80 7.5 3 3 2000 50-70 2.9*1.1*1.85
M8-150U 8 150 11 3 3 2400 50-60 3*1.1*1.85
M8-200U 8 200 11 3 3 2500 50-60 3*1.1*1.85
M10-80U 10 80 7.5 3 3 2100 50-60 3.0*1.1*1.85
M10-130U 10 130 11 3 3 2900 50-70 3.1*1.1*1.8
M12-160U 12 120 18.5 4 4 3600 50-60 3.3*1.3*2.2
M12-200U 12 200 18.5 4 4 3800 50-60 3.3*1.3*2.2
M14-200U 14 200 22 5.5 5.5 4300 40-50 3.5*1.3*2.35
M16-200U 16 200 30 7.5 7.5 6800 40-50 4.2*1.9*2.6


Description:

Space Saving Mini Thread Rolling Machine Fully Automated Low Power HELING Machinery




Advantage:

High Precision & Stable Quality for Small Parts
±0.05mm dimensional tolerance and ±0.5° bending accuracy ensure consistent quality of small U-bolts; ultra-low scrap rate minimizes raw material waste.
