Specifications
Brand Name :
HYH
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10sets per Month
Delivery Time :
30
Antenna Type :
Active Electronically Scanned Array (AESA)
Size :
≤700*290*450(mm)
Target Detection :
Air, Sea, and Land
Technical System :
DBF
Range :
Up To 100 Km
Scan Mode :
Sector Scan
Elevation Coverage :
Up to 70 degrees
Radar Wave Band :
X
Power Output :
Up to 10 kW
Target Radial Velocity :
0.8m/s-20m/s
Azimuth Coverage :
360 degrees
Material :
aluminum copper
Radar System :
2D Active Phased Array
Transmit Power :
224W
Antenna Speed :
≤10rpm
Minimum Detection Range :
10 m
Operating Frequency Band :
X Band
Range Resolution :
1-10 m
Scanning Range Pitch :
0°-40°
Antenna Diameter :
1-5 m
Blind Range :
180m
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Transmitter Power :
1-10 kW
Pulse Repetition Frequency :
100-1000 Hz
Description

Military-Grade Drone Defense Radar – Securing Airports, Prisons & Borders | All-Weather Operation

Overview

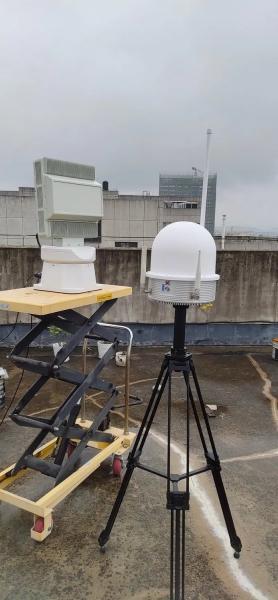

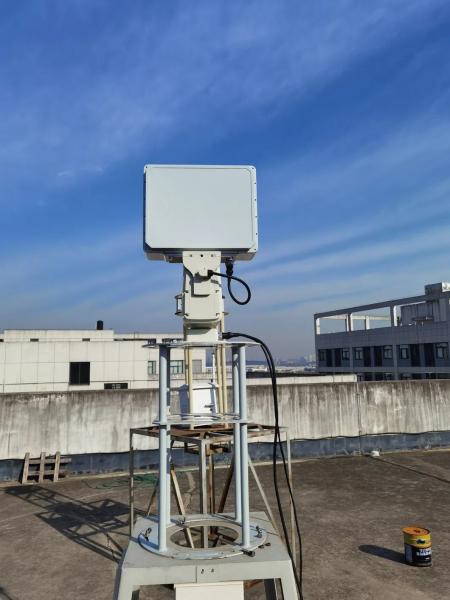

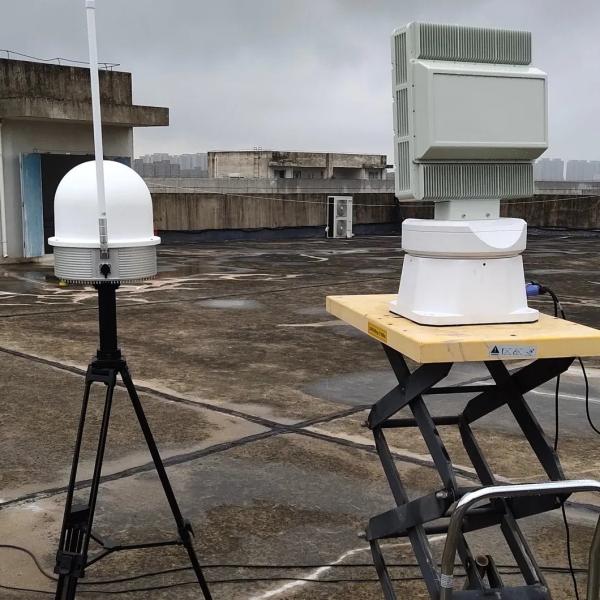

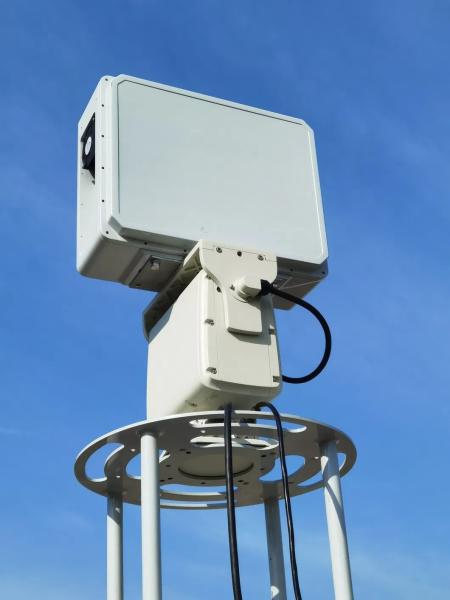

The HYH 226X-1X3K-3D is a cutting-edge X-band radar system designed for precise airspace surveillance in high-security environments. Comprising a radar array and turntable, it specializes in detecting, tracking, and alerting against micro/small civil UAVs (e.g., DJI Phantom-class drones) in critical areas such as prisons, border zones, exhibitions, and airports. With phased array and pulse Doppler technology, it delivers real-time target coordinates, including azimuth, distance, altitude, speed, and trajectory data.

Key Features

  • High Accuracy & Resolution:

    • Distance accuracy: ≤10m

    • Azimuth/Elevation accuracy: ≤1.0°

    • Minimum detection range: ≤150m | Max range: ≥3.5km (RCS≈0.01m²)

  • Advanced MIMO System: Multi-Input Multi-Output technology for enhanced tracking capabilities.

  • 360° Coverage: Full azimuth scan (0°–360°) and elevation coverage (0°–40°).

  • Rapid Data Updates: ≥0.25 times/sec refresh rate for real-time situational awareness.

  • All-Weather Reliability: Operates seamlessly in rain, dust, sand, humidity, and extreme temperatures.

  • Low Power Consumption: ≤240W with standard AC220V-240V input.

Applications

  • Airport perimeter security

  • Border surveillance

  • Prison and detention facility monitoring

  • Critical infrastructure protection (e.g., power plants, government facilities)

  • Event security (exhibitions, public gatherings)

Technical Specifications

Parameter Detail
Operating System Phased Array + Pulse Doppler
Frequency Band X Band
Detection Range ≥3.5km (DJI Phantom-class UAVs)
Data Interface 1x RJ45 (100 Mbps Ethernet, UDP protocol)
Power Supply AC220V-AC240V
Dimensions 500mm (L) x 410mm (W) x 205mm (H)
Net Weight ≤50kg
Temperature Range Operating: -40°C to +55°C Storage: -45°C to +65°C
Environmental Rating Rainproof, dustproof, sand-resistant, moisture/mold/salt corrosion-proof

Why Choose the HYH 226X-1X3K-3D?

  • Precision Targeting: Accurately pinpoints UAV location and movement for rapid response.

  • Compact & Durable: Lightweight, rugged design for easy deployment in harsh conditions.

  • Seamless Integration: Ethernet-ready for integration with broader security networks.
