X-Band 3D AESA Air Defense Radar | 25km Detection Range & 200-Target Tracking with Integrated C-UAS Countermeasures
X-Band 3D AESA Air Defense Radar | 25km Detection Range & 200-Target Tracking with Integrated C-UAS Countermeasures
X-Band 3D AESA Air Defense Radar | 25km Detection Range & 200-Target Tracking with Integrated C-UAS Countermeasures
X-Band 3D AESA Air Defense Radar | 25km Detection Range & 200-Target Tracking with Integrated C-UAS Countermeasures
X-Band 3D AESA Air Defense Radar | 25km Detection Range & 200-Target Tracking with Integrated C-UAS Countermeasures
X-Band 3D AESA Air Defense Radar | 25km Detection Range & 200-Target Tracking with Integrated C-UAS Countermeasures
Specifications
Brand Name :
HYH
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10sets per Month
Delivery Time :
30
Operating Temperature :
-40°C to 60°C
Transmit Power :
256W
Blind Range :
180m
Pitch Coverage :
0°-30°
Frequency Range :
2-18 GHz
Technical System :
DBF
Scan Rate :
Up to 30 degrees per microsecond
Range Resolution :
1-10 m
Data Processing :
Real-time
Material :
aluminum copper
Operating Frequency Band :
X Band
Size :
≤700*290*450(mm)
Radar Wave Band :
X
Antenna Speed :
≤10rpm
Target Radial Velocity :
0.8m/s-20m/s
Minimum Detection Range :
10 m
Scanning Range Pitch :
0°-40°
Antenna Diameter :
1-5 m
Scan Mode :
Sector Scan
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Transmitter Power :
1-10 kW
Pulse Repetition Frequency :
100-1000 Hz
Range :
Up To 100 Km
Description

System Overview

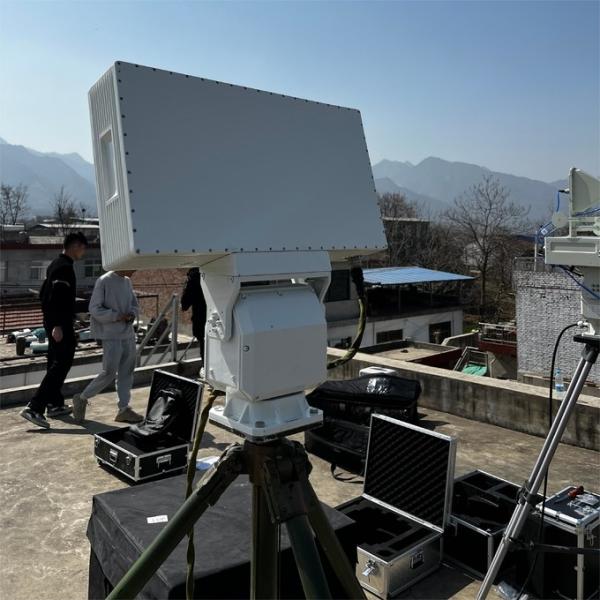

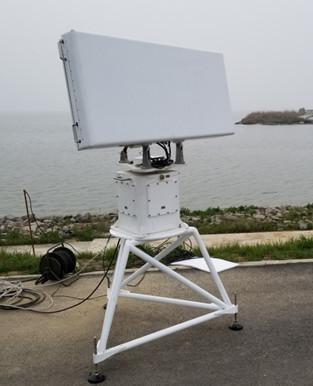

Our X-Band 3D Air Defense System combines cutting-edge 2D electronic scanning radar with full-spectrum counter-UAV jamming, delivering comprehensive protection against aerial threats. Featuring ±30° elevation/±15.5° azimuth electronic scanning + 360° mechanical rotation, this military-grade solution detects stealth targets (0.01m² RCS) at 8km while neutralizing hostile drones within 2km in 3 seconds.

![System Operation: Radar scanning airspace while jamming UAV control signals]

Key Advantages

✅ 25km Extended Reach - Detects conventional aircraft (1m² RCS) at maximum range
✅ Cluster Defense - Tracks 200+ targets simultaneously with 0.8m/s velocity resolution
✅ Battlefield Tough - IP67 rating & -40°C~+70°C operation range
✅ Rapid Deployment - 55kg radar head with <10rpm mechanical scan speed
✅ Energy Efficient - 256W transmit power reduces operational costs

Core Technologies

Radar Innovations

![Array Icon] Advanced Beam Steering ![Target Icon] Smart Tracking ![Chip Icon] Solid-State Reliability
- Hybrid electronic/mechanical scanning - Real-time Doppler analysis - GaN-based TR modules
- 15m range resolution - 20m positioning accuracy - 100,000+ hour MTBF
- Adaptive clutter rejection algorithms - Threat priority sorting - Modular field-replaceable units

Jammer Capabilities

![Signal Icon] Spectrum Dominance ![Shield Icon] Instant Neutralization ![Gear Icon] Fail-Safe Design
- 20MHz-6GHz broadband coverage - 3s automatic threat response - Worm gear self-locking mechanism
- 8 programmable focus bands - 960W smart power allocation - Military-grade embedded controller
- 3x directional + 1x omni antennas - GPS/GLONASS spoofing capability - Dual cooling system

Technical Specifications

Radar Performance

Detection Scanning Physical
- 0.01m² RCS @8km - ±15.5° electronic azimuth - 686×411×145mm size
- 0.8-100m/s velocity range - ±30° electronic elevation - 55kg weight
- 200 concurrent tracks - 360° mechanical rotation - 24/48V DC input

Jammer Parameters

Coverage Precision Durability
- 2km effective radius - ≤0.8° bearing accuracy - IP67 environmental proof
- 60+ simultaneous jams - 3s reaction time - MIL-STD-810 vibration
- 960W peak power - 8-band selective jamming - 50G shock resistance

Operational Scenarios

![Border Icon] Territorial Defense

  • Detect cruise missiles & stealth drones

  • Coastal radar cross-section optimization

![Base Icon] Military Installation Protection

  • 24/7 airspace monitoring for forward bases

  • Integrated with SAM systems

![City Icon] Urban Security

  • Low-probability-of-intercept (LPI) mode

  • Crowded spectrum environment operation

![Factory Icon] Critical Infrastructure

  • Protect nuclear plants/power grids

  • EMP-hardened design

Performance Benchmark

Capability Conventional Systems Our System
Detection Range 15km (1m² RCS) 25km (1m² RCS)
Power Consumption 500W+ 256W (49% reduction)
Target Capacity 80 tracks 200+ tracks
Deployment Time 4-6 hours <2 hours
Maintenance Cost $12k/year $6.8k/year

Certifications

  • MIL-STD-461F (EMC)

  • IP67 Dust/Waterproof

  • CE/FCC Part 15 Compliance

  • RoHS 3 Directive
