QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
Specifications
Brand Name :
GS
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500
Delivery Time :
6~8
Model Number :
qinglong
Place of Origin :
China
Length :
2022 mm
Height :
696 mm
Wingspan :
Front 2820 mm rear 3744 mm
Engine :
60 cc double cvlinder or electric motor
Payload :
10 kg /electric 5kg
Take-off weight :
35 kg
Level cruising speed :
24-40 m/s( fixed wing )
Endurance :
10 h(take-off weight 35kg,payload 8kg)/electric 2.5h
Climb rate :
4 m/s ( fixed wing )
Altitude :
5000 m
Temperature :
-20℃-50℃
Wind resistance :
take-off level 5/ cruising level 6
Oil cabin :
6-10L(flight test data )
Description

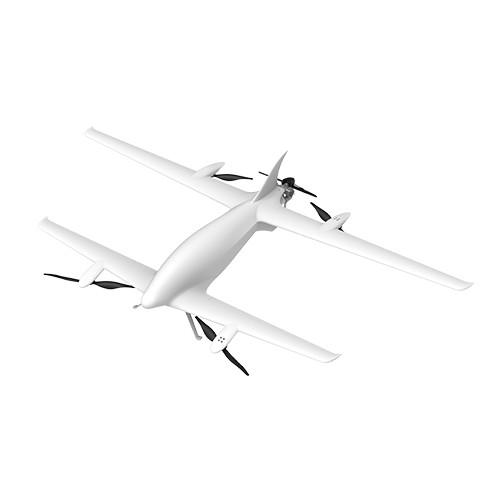

Qinglong Tandem Wing VTOL UAV

Combined design of tandem wing and multi-rotor, Qinglong can take-off and landingvertically, which don’t need special runway and large scale take-off and landing site. Be-cause of the high aerodynamic efficient layout, Qinglong’s flight time can reach over 10hours;

Cruising engine propeller is set in the tail of the fuselage to build a aerodynamic shape.which decreases the air resistance while increases the thrust force. Rear engine designleaves more space for large payload.

QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance
QINGLONG Tandem Wing VTOL UAV 2022mm Length High Performance

Key Features

  • VTOL capability for easy takeoff and landing in tight spaces
  • Tandem wing configuration for greater lift and endurance
  • Long-range communication with real-time telemetry

Specifications

Wingspan 2022 mm
Length Custom
Material Toray 3K Carbon Fiber + Aviation Aluminum
Flight Mode VTOL (Vertical Takeoff and Landing)
Max Flight Time Up to 90 minutes
Payload Capacity Up to 3 kg
Control Range 30 km (line-of-sight)

FAQ

What is this drone mainly used for?

This VTOL UAV is ideal for mapping, surveillance, logistics, environmental monitoring, and remote inspections.

Is it compatible with autonomous flight systems?

Yes. It supports autonomous mission planning through ground station software and RTK-based navigation.

Can I change the payload module?

Yes. The payload bay is modular and supports a wide range of sensors and devices.

Does it support wind resistance?

The aircraft structure is wind-resistant up to level 6, ensuring stable flight in moderate outdoor conditions.
