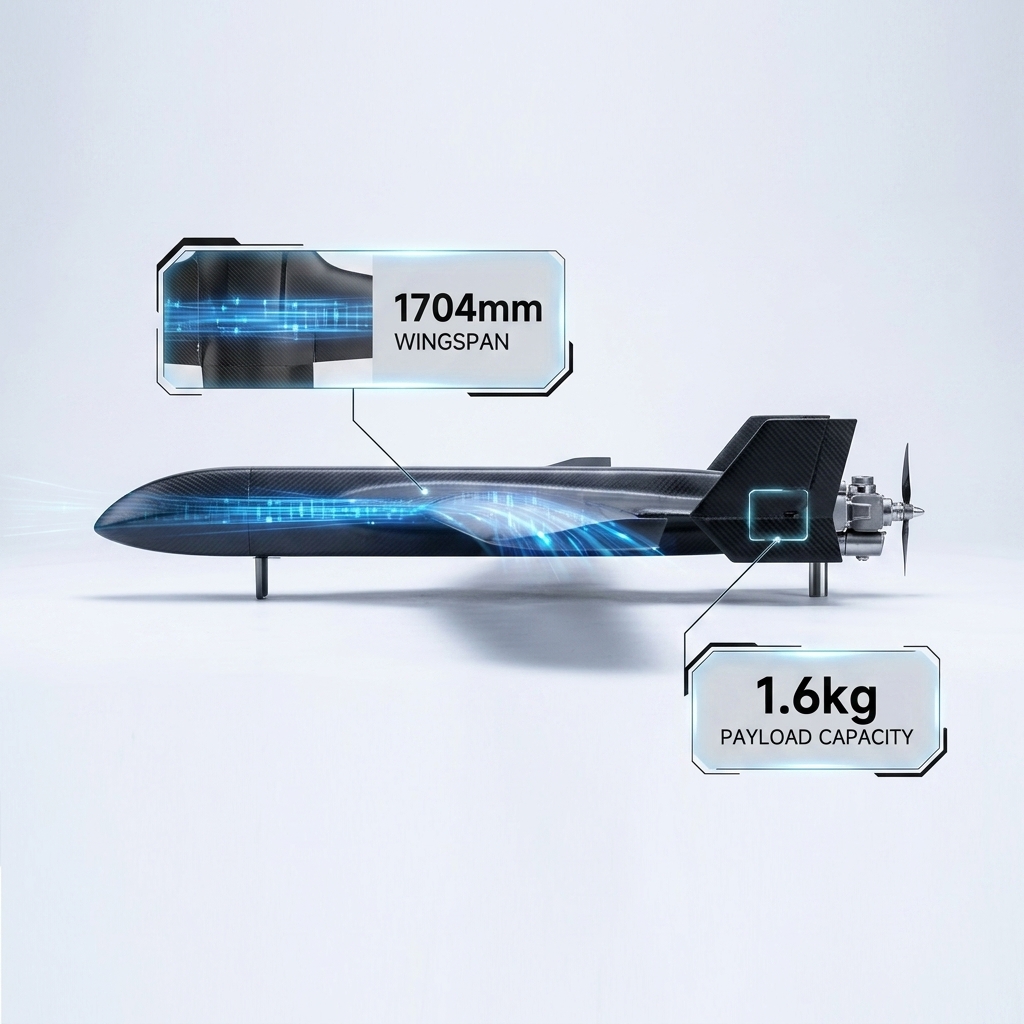

Electric Brushless Motor M.01 VTOL Fixed-Wing Electric Mapping UAV 1704mm Wingspan 1.6kg Payload 1280m Ceiling
Electric Brushless Motor M.01 VTOL Fixed-Wing Electric Mapping UAV 1704mm Wingspan 1.6kg Payload 1280m Ceiling
Specifications
Temperature :
-20°C ~ 50°C
Supply Ability :
30
Place of Origin :
China
Payload :
1.6 kg
Application :
3D Modeling
Packaging Details :
Custom flight case with shock-absorbing foam inserts and waterproof seal
Wingspan :
1704 mm
Cruise Speed :
20 m/s
Wind Resistance :
Take-off Level 5 / Cruising Level 7
Delivery Time :
21 working days
Price :
Negotiable
Launch Method :
Catapult Launch
Model :
M.01
Altitude :
1280 m
Certification :
CE, RoHS
Engine :
Electric Brushless Motor
Take-off Mass :
19.9 kg
MOQ :
2
Payment Terms :
L/C
Airframe Material :
Aviation Carbon Fiber Composite
Length :
1754 mm
Max Range :
126 km
Model Number :
M.01
Brand Name :
GS
Endurance :
133 min
Protection Degree :
IP54
Description

M.01 Electric Mapping UAV

The M.01 is a high-performance electric brushless motor-powered VTOL fixed-wing unmanned aerial vehicle, engineered for 3D Modeling. Featuring a 1704mm wingspan and 1.6kg payload capacity, this UAV delivers exceptional 133-minute endurance and 126km operational range. The entire airframe is constructed from aviation-grade carbon fiber composite, ensuring an optimal balance of structural strength and lightweight portability.

Equipped with an advanced flight control system and modular payload architecture, the M.01 supports rapid mission reconfiguration. Its VTOL capability eliminates the need for runways, enabling deployment from confined spaces. The IP54 protection rating ensures reliable operation in challenging environmental conditions.

Electric Brushless Motor M.01 VTOL Fixed-Wing Electric Mapping UAV 1704mm Wingspan 1.6kg Payload 1280m Ceiling
Electric Brushless Motor M.01 VTOL Fixed-Wing Electric Mapping UAV 1704mm Wingspan 1.6kg Payload 1280m Ceiling
Electric Brushless Motor M.01 VTOL Fixed-Wing Electric Mapping UAV 1704mm Wingspan 1.6kg Payload 1280m Ceiling

Key Features

  • Advanced VTOL Capability – Vertical takeoff and landing without runway infrastructure, deployable from ships, rooftops, or compact terrain
  • Full Carbon Fiber Airframe – Aerospace-grade composite construction for 13.9kg lightweight design with industry-leading strength-to-weight ratio
  • Electric Brushless Motor Power System – Optimized for 133min continuous flight with efficient fuel/energy management and redundant safety protocols
  • 1.6kg Payload Capacity – Modular bay accommodates EO/IR cameras, LiDAR, SAR radar, communication relays, and custom mission equipment
  • 126km Operational Range – Beyond-line-of-sight capability with secure datalink and autonomous return-to-home fail-safe
  • IP54 Environmental Protection – Reliable operation in rain, dust, and extreme temperatures from -20°C to 50°C

Specifications

ModelM.01
Wingspan1704 mm
Length1754 mm
Airframe MaterialAviation Carbon Fiber Composite
EngineElectric Brushless Motor
Payload1.6 kg
Maximum Takeoff Weight19.9 kg
Cruise Speed20 m/s
Endurance133 min
Max Range126 km
Service Ceiling1280 m
Protection DegreeIP54
Launch MethodCatapult Launch

FAQ

What missions is the M.01 best suited for?

The M.01 is optimized for 3D Modeling operations, with its 1.6kg payload and 126km range making it ideal for extended-duration missions requiring reliable beyond-line-of-sight communication.

Can the payload configuration be customized?

Yes, the modular payload bay supports rapid swapping between EO/IR gimbals, LiDAR scanners, multispectral cameras, SAR systems, and communication relay equipment based on mission requirements.

How does the VTOL transition work?

The M.01 uses a seamless transition flight controller that automatically manages the conversion from vertical hover to fixed-wing cruise flight, requiring no manual pilot intervention during transition.

What training is required to operate this UAV?

Basic operator training typically takes 3-5 days, covering mission planning, pre-flight checks, emergency procedures, and data post-processing. Advanced payload operation training is available separately.
