Specifications
Brand Name :
flysafe
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Delivery Time :
5-8days
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Model Number :
mk001
Frequency :
Customized
Test voltage :
28 V
Current :
10.2 A
Output :
100 W
Gain :
50 dB
Output stability :
1 dB
Connector :
N / male
Output connector VSWR :
≤1.30 (No power and VNA test)
Power supply wire :
Red+Black+Enable wire
Enable Control :
High ON Low Off
Out shell Size :
172*82*21 mm
Mount hole :
167*77 mm
Weight :
700 g
Work Temperature :
-40~+65 ℃
Out shell material :
Aluminum
Vibration need :
Car loadOK
Description

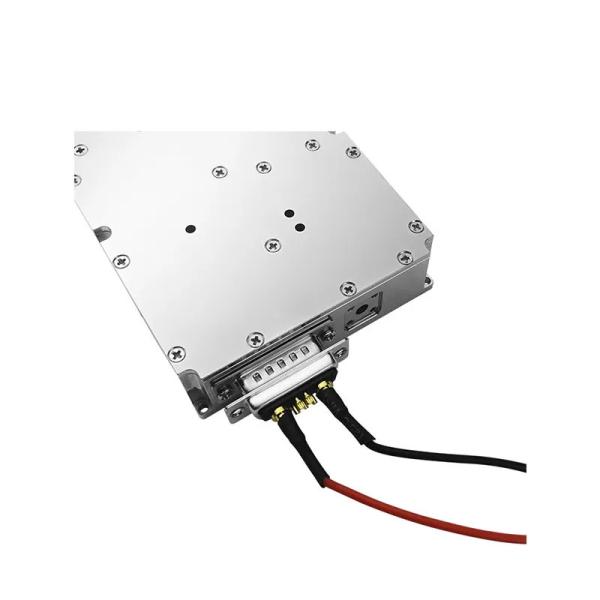

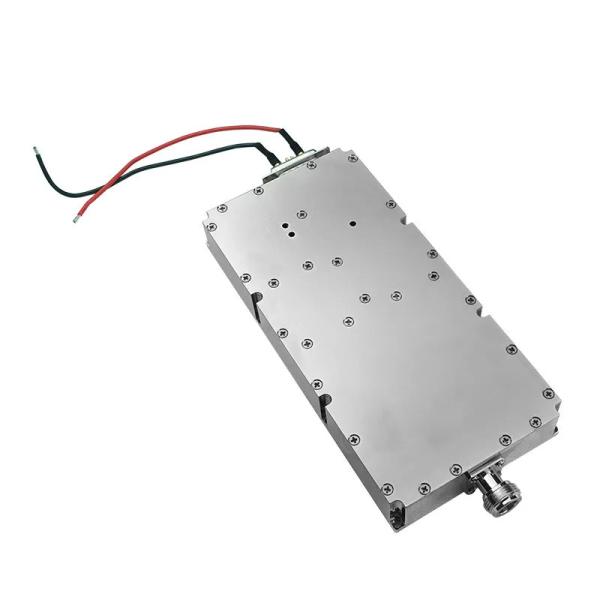

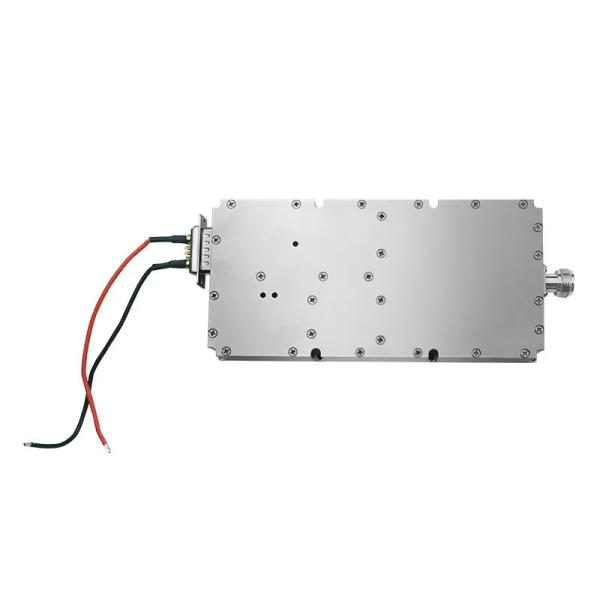

100w Jammer Module with Circle Protection

Product Description

This 100W jammer module with ring protection has a power of 100W and is designed for jamming the signals of first-person-view (FPV) devices. It is equipped with a ring protection function that ensures stable and effective jamming. It blocks the signal transmission of FPV equipment from functioning properly, thus protecting the security and privacy of a specific area. It has a powerful effect. The 100W jamming module with ring protection has a unique ring protection feature that enhances the stability and reliability of the module and reduces the leakage of jamming signals. The module is optimized for the frequency of FPV equipment, which enables precise jamming and avoids affecting other unrelated equipment.

Product parameters

Frequency Customized
Test voltage 28 V
Current 10.2 A
Output 100 W
Gain 50 dB
Output stability 1 dB
Connector N / male
Output connector VSWR ≤1.30 (No power and VNA test)
Power supply wire Red+Black+Enable wire
Enable Control High ON Low Off
Out shell Size 172*82*21 mm
Mount hole 167*77 mm
Weight 700 g
Work Temperature -40~+65 ℃
Out shell material Aluminum
Vibration need Car loadOK
