High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
High Performance VHF Power Amplifier Module 700MHz-2700MHz 200W
Specifications
Brand Name :
flysafe
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Delivery Time :
5-8 work days
Payment Terms :
LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C
Frequency :
700-2700 MHz
Test voltage :
28 V
Current :
29 A
Output :
300 W
Gain :
53 dB
Output stability :
1 dB
Connector :
N/ male
Output connector VSWR :
≤1.30 (No power and VNA test)
Power supply wire :
Red+Black+Enable wire
Enable Control :
High ON Low Off
Out shell Size :
170*87*28mm
Mount hole :
87*176 mm
Weight :
1390 g
Work Temperature :
-40~+65 ℃
Out shell material :
Aluminum
Vibration need :
Car loadOK
Description

High-performance700-2700MHz 300W Power Amplifier Module

Product Parameters

Frequency 700-2700 MHz
Test voltage 28 V
Current 29 A
Output 300 W
Gain 53 dB
Output stability 1 dB
Connector N/ male
Output connector VSWR ≤1.30 (No power and VNA test)
Power supply wire Red+Black+Enable wire
Enable Control High ON Low Off
Out shell Size 170*87*28mm
Mount hole 87*176 mm
Weight 1390 g
Work Temperature -40~+65 ℃
Out shell material Aluminum
Vibration need Car loadOK

Product Description

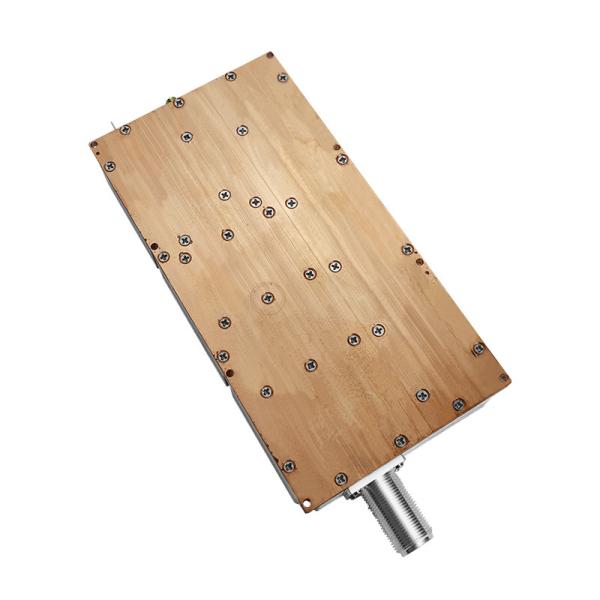

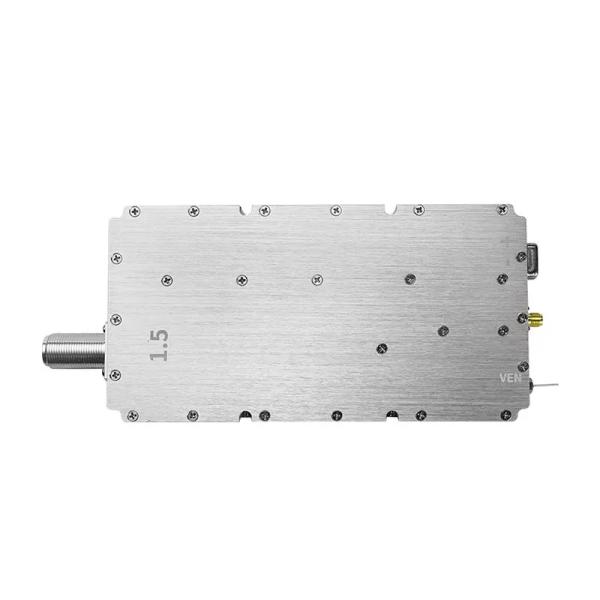

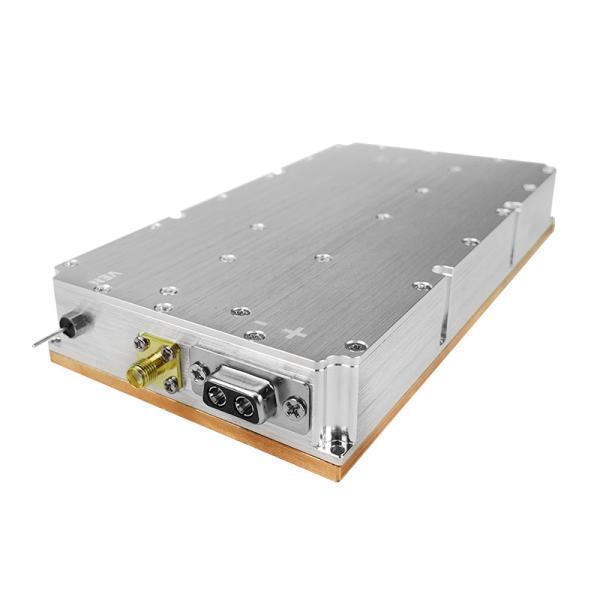

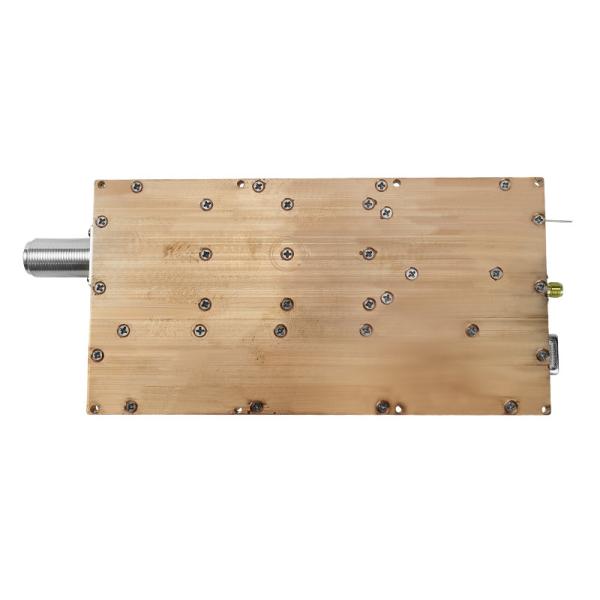

This is a high-performance 700-2700 MHz 300W power amplifier module that provides up to 300W of output power over the 700 MHz to 2700 MHz frequency range. It has excellent signal amplification capability and is suitable for a variety of wireless communications, RF applications and other applications requiring high power signal processing. The compact, modular design makes it easy to install and integrate into a wide range of equipment and systems. Both miniaturized communication equipment and large RF systems can be easily integrated with this power amplifier module, which saves space and improves the overall performance of the system at the same time.
