Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Customized RF Signal Power Amplifier Jammer Module 5.2GHz 50W
Specifications
Brand Name :
flysafe
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Delivery Time :
5-8 work days
Payment Terms :
LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C
Frequency :
5.2 GHz
Work Temperature :
-20~+70 ℃
Max Output Power :
50 W
Work Voltage :
DC28 V
Max Gain :
47 dB
Flatness :
±1 dB
Max Current :
4 A
Output VSWR :
≤1.5
Output Connector :
SMA/F 50Ω Customized
Power Amplifier Efficiency :
45 when Max Output
Switch Control :
0V off /0.6 on
Standing Wave Protection :
OK
Temperature Protection :
75 ℃
Size :
132*53*17 mm
Weight :
0.2 Kg
Description

Product Parameters

Frequency 5.2 GHz
Work Temperature -20~+70 ℃
Max Output Power 50 W
Work Voltage DC28 V
Max Gain 47 dB
Flatness ±1 dB
Max Current 4 A
Output VSWR ≤1.5
Output Connector SMA/F 50Ω Customized
Power Amplifier Efficiency 45 when Max Output
Switch Control 0V off /0.6 on
Standing Wave Protection OK
Temperature Protection 75 ℃
Size 132*53*17 mm
Weight 0.2 Kg

Product Description

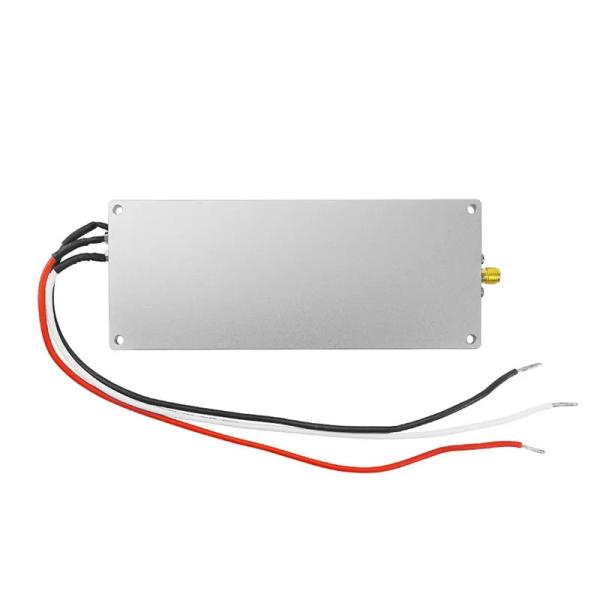

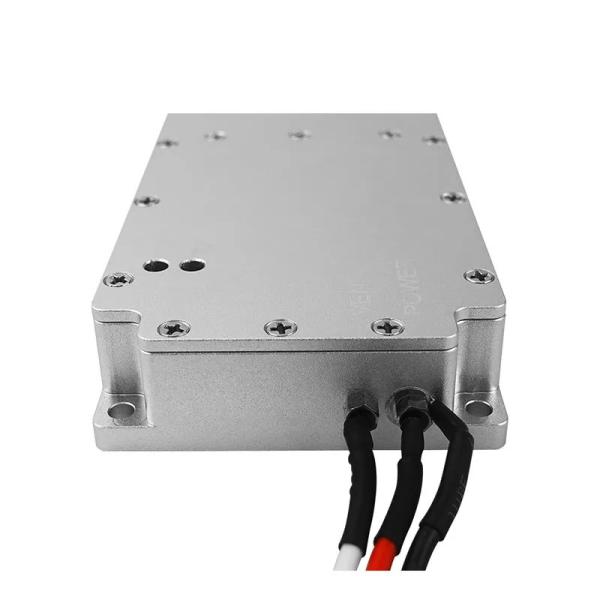

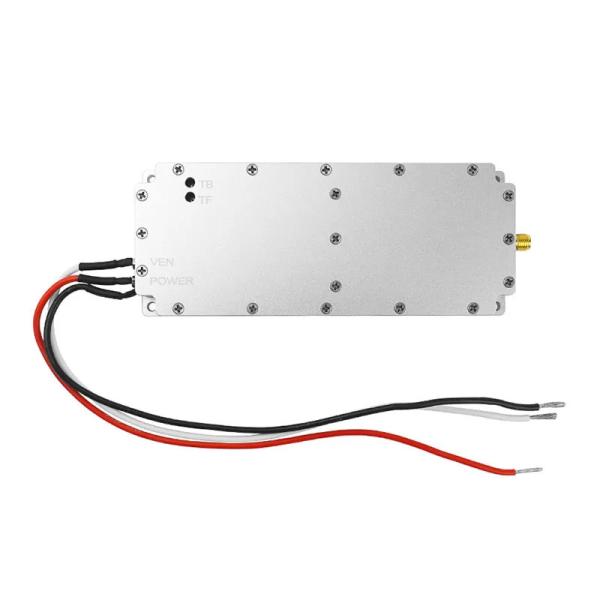

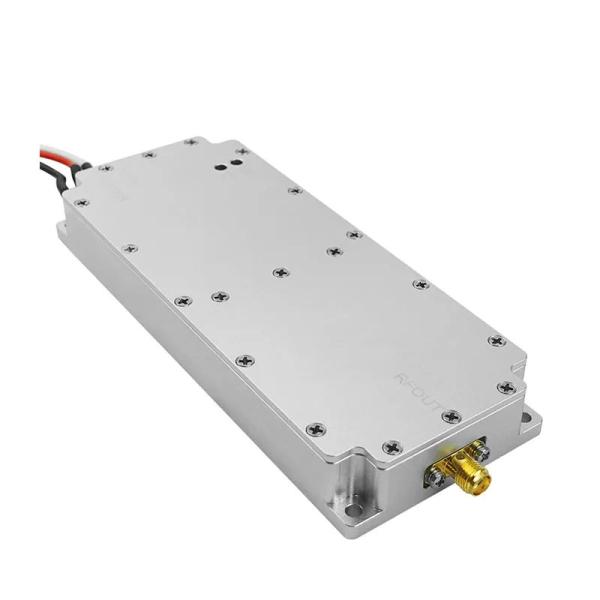

The 5.2 G 50w Signal Power Amplifier Module is a specialized component designed to amplify radio frequency (RF) signals at the 5.2 GHz frequency. Designed to achieve optimum performance at 5.2 GHz, it provides consistent functionality and minimizes distortion. Typically, their input and output connections are set up to handle RF signals with specific impedances to ensure proper impedance matching and minimize signal reflections.
