Specifications
Place of Origin :
Guangdong, China
Brand Name :
flysafe
Price :
Negotiable
MOQ :
1
Delivery Time :
5-8 work days
Payment Terms :
LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C
Frequency Range :
Frequency Range 2400-2500 MHz
Antenna weight(kg) :
0.136KG
Dimensionsmm(Height/Width/Depth) :
diameter32*149mm
Maximum input power(W) :
50W
Description
Maximum input power 50W 3dbi omnidirectional antenna for 2.4GHz wireless communication

Product Description

700-1050MHZ 3.5dBi Black Fatty Omni Antenna is an innovative product designed for the shortcomings of Comans fiberglass antenna, such as high energy consumption, which combines the performance of the classic Broden antenna, wider antenna, higher sensitivity, better heat dissipation, widely used in many kinds of drone signal jammers, the customer can choose the right one according to the actual situation. frequency band. Compared with traditional antennas, it has the same weight and higher power. We provide personalized customization, such as range band 700-1050MHz, gain 3.5±0.5dBi, length 23.5cm, achieving high power and low consumption.

Product Paramenters

Electrical Specifications
Frequency Range
2400-2500 MHz
Gain(dBi)
3±0.5dBi
VSWR
≤1.5
Polarization
vertical
Horizontal Beamwidth(0º)
Vertical Beamwidth(0º)
360º
55±5º
ovality(dB)
≤±2dB
Input Impedance(Ω)
50Ω
Maximum input power(W)
50W

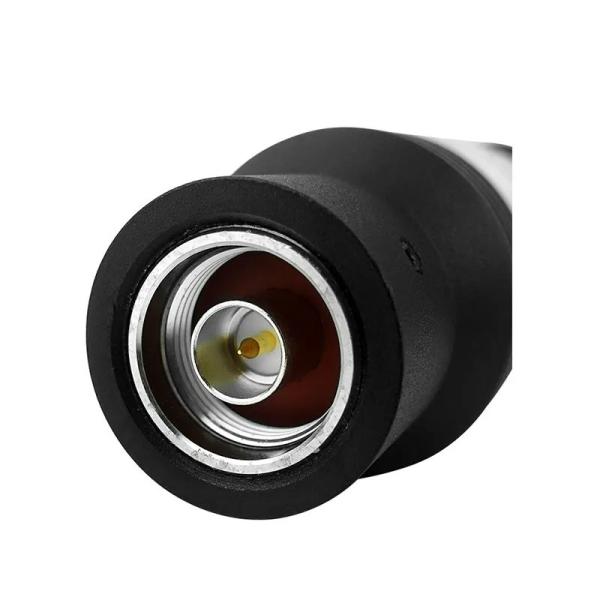

Input connector type
N-K
Lightning Protection
DC Ground
MechanicalSpecifications

Dimensions­mm(Height/Width/Depth)
ɸ32*149mm
Antenna weight(kg)
0.136KG
Rated Wind Velocity(m/s)
60m/s
Operational Humidity(％)
10- 95
Radome Color
black
Radome material
glass fiber reinforced plastics
Operating temperature(ºC)
-40～55º
Installation Method
Machine installation
