Specifications
Place of Origin :
Guangdong, China
Brand Name :
flysafe
Price :
Negotiable
MOQ :
1
Delivery Time :
5-8 work days
Payment Terms :
LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C
Directional Antenna Frequency Range :
2400-2500MHz
Gain(dBi) :
10dBi
Dimensionsmm(Height/Width/Depth) :
320*70*16mm
Antenna weight(kg) :
0.4KG
Description
2400-2500MHz frequency 10dBi high gain directional antenna

Product Description

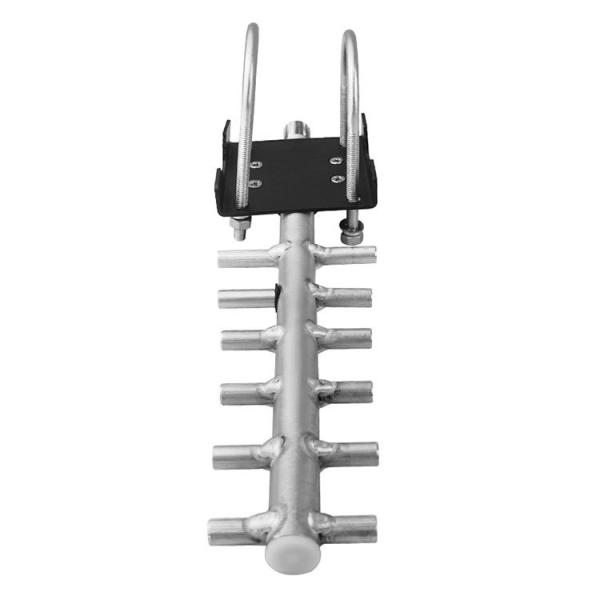

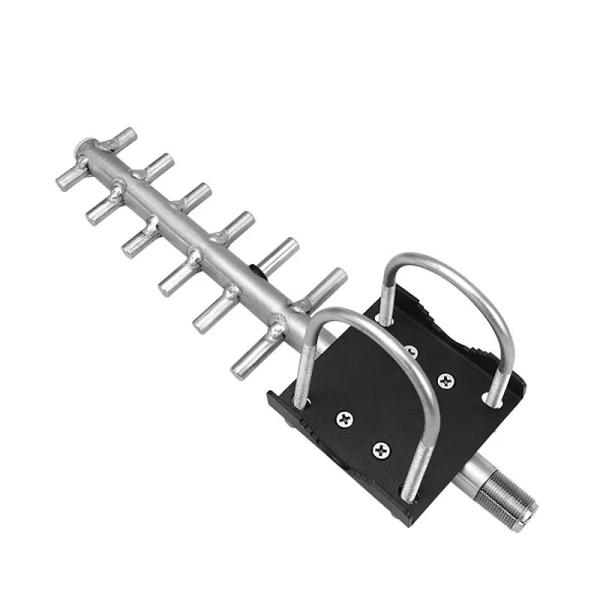

2400-2500MHz 10dBi Yagi Directional Antenna is designed for efficient signal transmission and reception in the 2400 - 2500MHz frequency band, this antenna has a high gain of 10dBi, which provides strong signal support for your wireless communication system and ensures a stable and reliable communication connection in both indoor and outdoor environments.2400-2500MHz The 10dBi Yagi directional antenna is suitable for wireless communication systems in the 2.4GHz band, such as Wi-Fi network coverage, wireless LAN extension, etc. It enhances signal coverage and signal quality. It can enhance signal coverage and signal strength, improve network stability and transmission speed.

Product Paramenters

Electrical Specifications
Directional Antenna Frequency Range
2400-2500MHz
Gain(dBi)
10dBi
VSWR
≤1.5
Polarization
vertical
Horizontal Beamwidth(0º)
55±10º
Vertical Beamwidth(0º)
30±10º
Front-to-back ratio(dB)
≥18
Input Impedance(Ω)
50Ω
Maximum input power(W)
100W
Input connector type
N-K
Lightning Protection
DC Ground
Mechanical Specifications
Dimensions­-mm(Height/Width/Depth)
320*70*16mm
Packing size(mm)
Mm
Antenna weight(kg)
0.4K
Rated Wind Velocity(m/s)
31m/s
Operational Humidity(％)
10- 95
Radome Color
black
Radome material
aluminum
Operating temperature(ºC)
-40～55 º
Installation Method
Pole mounting
Mounting hardware(mm)
Φ30～Φ50mm

Details Images

10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency
10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency
