Specifications
Brand Name :
Sanxin
Model Number :
SX1270
Certification :
ISO9001
Place of Origin :
China
MOQ :
5
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
5-25days
Quality :
100% test
Thermal Conductivity :
110 W/mK
Package :
paper box + paper carton
Customized :
acceptable
Service :
OEM & ODM
Payment Term :
T/T,L/C,Western Union
Technology :
Imported equipment HIP sinter
Type :
Tungsten Steel Alloy
Cetificate :
ISO 9001
Features :
High Abrasive Resistance
Tungsten :
Cemented Carbide Shaft
Shipments Terms :
By Sea,air Or Express
Description

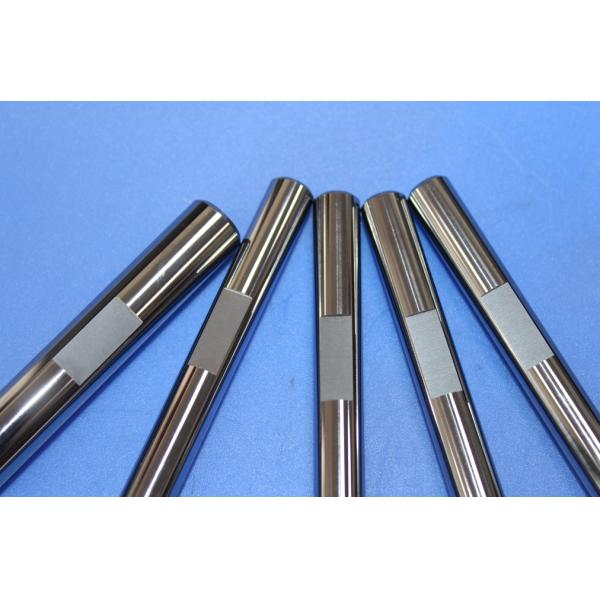

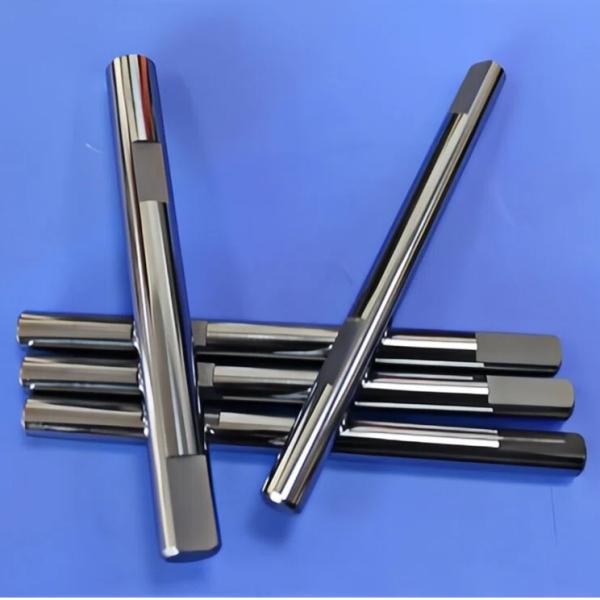

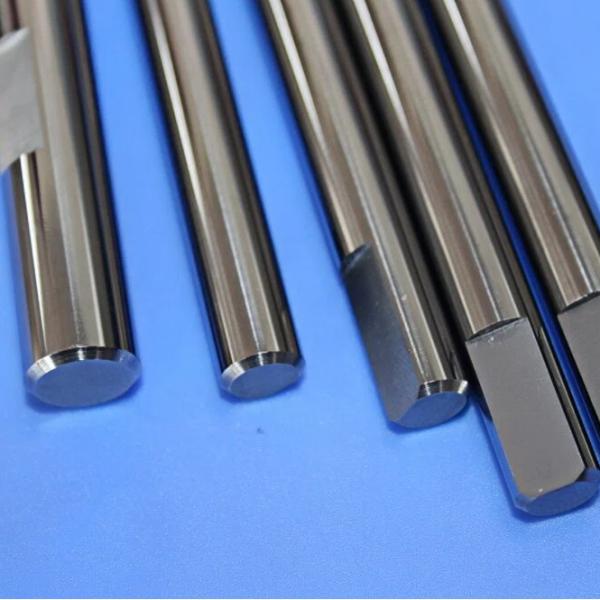

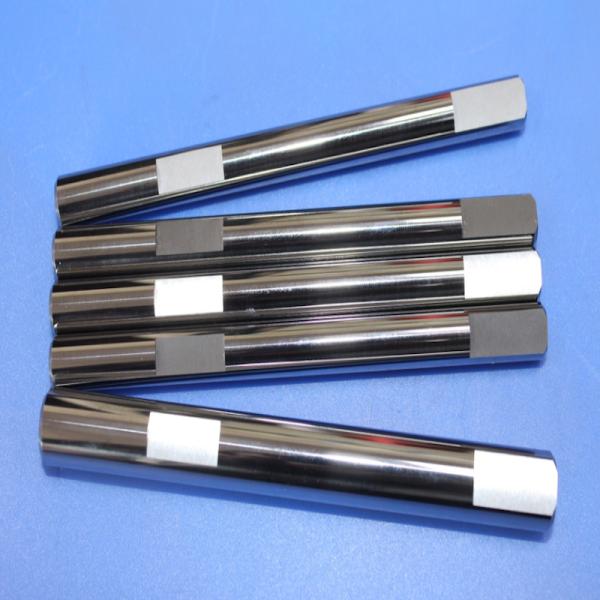

Groove Accuracy ±0.003mm Non-magnetic Alloy Semiconductor And Medical Equipment Dedicated Drive Shaft
The grooved shaft is precision-manufactured from WC-Ni non-magnetic cemented carbide. By replacing cobalt with a nickel-based binder phase and utilizing nano-scale groove processing technology, it simultaneously addresses the magnetic interference and positioning accuracy issues of traditional drive shafts. This enables superior transmission performance with zero magnetic interference, precise positioning, and long-term stability in magnetic field-sensitive environments such as semiconductor equipment and medical instruments.
Material Science
  • Matrix Composition: 90% WC + 10% Ni, a special non-magnetic formula
  • Magnetic Properties: Permeability <1.002, Residual Magnetization <0.05 mT
  • Physical Properties:
    • Hardness: 92 HRA (Vickers Hardness 1800 HV)
    • Density: 14.8-15.1 g/cm³
    • Coefficient of Thermal Expansion: 5.2*10⁻⁶/K
  • Non-magnetic Principle: A nickel binder phase replaces the traditional cobalt phase, fundamentally eliminating ferromagnetism
Product Specifications
Parameter Type Standard Range Accuracy Level Testing Method
Shaft Diameter Φ3-50mm ±0.002mm Laser Diameter Gauge
Groove Width 1-10mm ±0.003mm Optical Projector
Shaft Runout ≤0.005mm 0.002mm Coordinate Measuring
Surface Roughness Ra 0.2μm Ra 0.1μm White Light Interferometer
Dynamic Balancing Grade G1.0 G0.4 ISO 1940 Standard
Manufacturing Excellence
Core Manufacturing Processes
1. Non-Magnetic Material Preparation
  • Nano-Scale WC-Ni Powder Proportioning
  • Isostatic Pressing Technology
  • Vacuum Sintering Process
2. Precision Groove Machining
  • Micro-EDM
  • Diamond Wheel Precision Grinding
  • Online Measurement and Real-Time Compensation
3. Surface Treatment Technology
  • Mirror Polishing
  • Electrolytic Passivation Deburring
  • Ultrasonic Cleaning
