Specifications
Name :
Tungsten carbide composite rod
Dimension :
Customized
Material :
Virgin Tungsten carbide Grains
Type :
Tungsten Steel Alloy
Model :
tungsten carbide + copper/nickel
Color :
Bright yellow, golden, silver
Brand Name :
Sanxin
Model Number :
SX0996
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
USD 43/KG
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10-50000pcs/month
Delivery Time :
15~45 Days
Packaging Details :
Safety Packing
Description

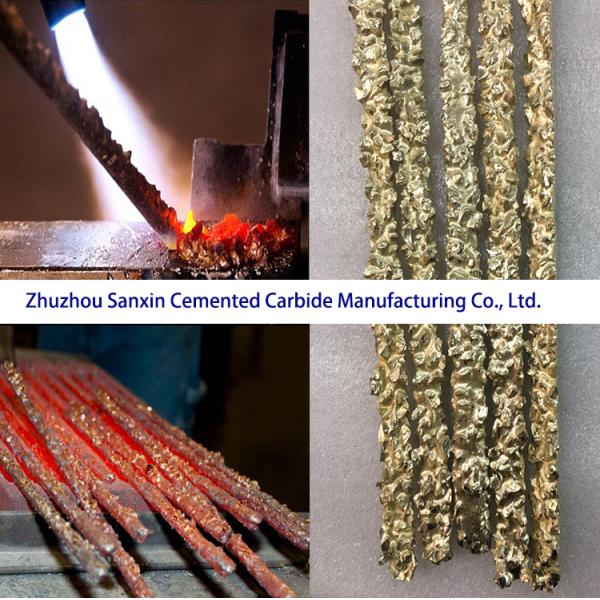

Steel Cutting Grades Tungsten Carbide Composite Rod
Special tungsten carbide bar designed specifically for oil industry parts and downhole tool engineering applications. These rods are primarily used for downhole milling operations, providing superior performance in demanding oilfield environments.
Product Construction
Manufactured from top-grade 100% virgin raw materials, our tungsten carbide composite rods feature sharp-edged blocks that deliver exceptional hot-resistance and abrasion performance. This construction ensures extended service life in harsh operating conditions.
Technical Specifications
Available in diameters ranging from 1-13.5mm with customizable lengths. Common sizes include 1/16" and 3/16" tungsten carbide grain rods. All rods maintain top-tier hot-resistance and abrasion performance characteristics.
Material Composition Options
  • Option A: Tungsten carbide + copper (Cu) - exhibits a slight yellow coloration
  • Option B: Tungsten carbide + nickel (Ni) - displays a light white coloration
    • Grain Size Measurements
    Grade Size Range (mm)
    1 1.6-3.2mm
    2 3.2-4.8mm
    3 4.8-6.4mm
    4 6.4-8.0mm
    5 8.0-9.5mm
    6 Additional sizes available
    Performance Characteristics
    Technical data references wolfram carbide grade YG8. Hardness exceeds HRA 90, providing the best wear resistance among hard alloys. These carbide top hammers serve as critical components in ultra-high pressure and high temperature devices for synthetic diamond production using static pressure methods.

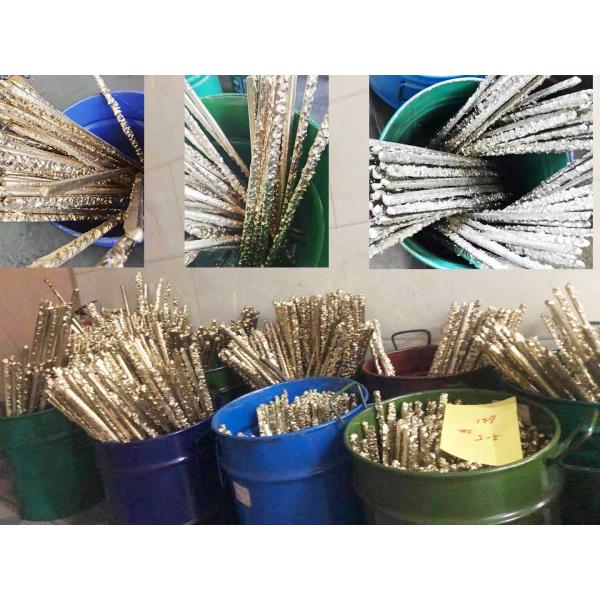

    Inventory & Production Capacity
    Standard stocked sizes: 5-18mm diameter × 330mm length. Production capacity reaches 100 tons per month to ensure consistent supply and timely delivery.
    Packaging Information
    Standard packaging includes paper cartons weighing approximately 25kg each. Carton dimensions: 61×49×12cm.
    Key Advantages
  • Steel cutting grades of tungsten carbide
  • Sharp, angular and chunky fragments for optimal performance
  • Manufactured with high tensile brazing alloy
    • Steel Cutting Grades Of Tungsten Carbide Composite Rod For Oil Industry Parts Steel Cutting Grades Of Tungsten Carbide Composite Rod For Oil Industry Parts
