High Wear Resistance Tungsten Carbide Wear Parts Screw Tire Studs For Snow Tire
High Wear Resistance Tungsten Carbide Wear Parts Screw Tire Studs For Snow Tire
High Wear Resistance Tungsten Carbide Wear Parts Screw Tire Studs For Snow Tire
High Wear Resistance Tungsten Carbide Wear Parts Screw Tire Studs For Snow Tire
Specifications
Brand Name :
HGalloytool
Model Number :
Various
Certification :
ISO9001:2008
Place of Origin :
Hunan,China(Mainland)
MOQ :
5Kg
Payment Terms :
L/C, T/T
Supply Ability :
20000 Kilograms per Month
Delivery Time :
20~30 Days
Packaging Details :
Plastic Boxes Inside and Cartons Outside
Product Name :
Tungsten Carbide Tire Nail Stud
Material :
100% Virgin Tungsten Carbide
Color :
Gray
Particle :
Medium
Weather :
Winter/Snow/Snowing/Raining/Frozen/Frost/Freezing/ Icing
Feature :
High Wear Resistance
Description

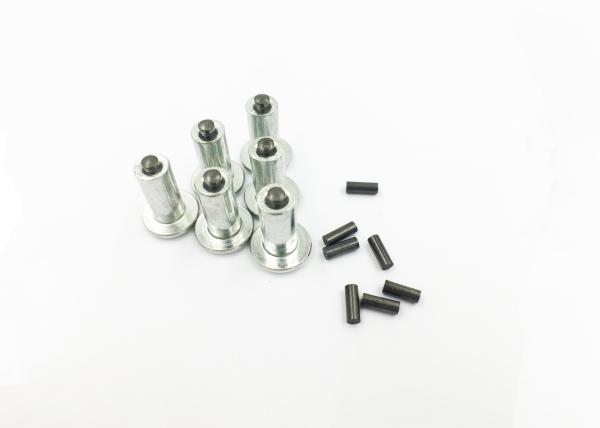

High Wear Resistance Tungsten Carbide Wear Parts Screw Tire Studs For Snow Tire

Product Description

Tungsten carbide screw tire studs have good anti-slip effect and superior grip to ensure safe driving in winter, and are easy to install and disassemble. The studs are made of 100% raw materials ,have good wear resistance, and are available in sizes and types.

Grade & Application

ISO Code Grand Physical and mechanical properties Applications recommended
Density
g/cm3		 Hardness HRA(HV) TRS
Mpa
K05 YG3 15 90.5 1300 Suitable for finishing of cast iron and nonferrous metal.
K10 YG6X 14.8 91 1560 The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.
YG6A 14.7 91.5 1510
K15 YG6 14.9 89.5 1670 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
K20 YG8 14.6 89 1840 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
M10 YW1 13 91 1290 Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel
YW3 12.9 92 1390
YW4 12.3 92 1390
M20 YW2 12.9 90.5 1460 The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.
P10 YT05 12.6 92.5 1260 Suitable for the finishing and semi-finishing if steel and cast steel with a moderate feed rate and a rather high cutting speed.
YT15 11.3 91 1300
P20 YS14 11.4 91.5 1550 Suitable for the finishing and semi-finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel.
YT14 11.4 90.5 1400
YS25 13 90.5 1780
P30 YT5 12.8 89.5 1560 Suitable for the heavy duty rough turning of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions.
K05-K10/M20 YT26 14 92.5 1600 Suitable for fine and semi-finishing machining of chilled cast iron and nonferrous metals with good performances of wear resistance, also suitable for turning and milling of manganese steel and hardened steel.
K20 YD201 14.9 91 1800 Suitable for semi-finishing and the roughing of cast iron and light alloys and also for the milling of cast iron and low alloy steel.
M05-M10 YS8 13.9 92.5 1720 It can be used for the finishing of iron based and nickel based high-temperature alloys and high -strength steel and it can also be used for the finishing if chilled cast iron, heat resistant stainless steel, high manganese steel resistant stainless steel, high manganese steel and hardened steel.
M10 60 12.8 92.5 1500 Mainly used for threading of petroleum pipe, also used for fine machining of hardened steel.
M20 YM20 13 91 1750
P30 YC30S 12.9 90 1600 Used for the milling of steel, cast steel and alloy steel.
P35-P40 YC40 12.9 91 2200 Suitable for the heavy duty turning of steel and cast steel with a big steel rate under unfavorable working condition.
P40 YM40 12.75 90 2100 Suitable for the heavy duty turning of steel and cast steel with a big steel rate and also for face milling.
YC45 12.75 90 2300

Packaging Show

High Wear Resistance Tungsten Carbide Wear Parts Screw Tire Studs For Snow Tire

Customer notice

To save your value time, please inform us of the following information:

1. Grade.

2. Type.

3. Dimension for each type.

4. Blanks or finished products.

5. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.

Please remember to leave contact information such as phone, email, Facebook or WhatsApp to ensure that we can respond to you at the first time! Thank you!
