Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining
Specifications
Brand Name :
HGalloytool
Model Number :
Customized
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5 KG
Payment Terms :
L/C, T/T
Supply Ability :
20000 Kilograms per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
Plastic Boxes Inside and Cartons Outside
Product Name :
Tungsten Carbide Wear Parts
Grade :
YG640, YG643, YG813 etc.
Material :
Tungsten Carbide
Physical Performance :
High Hardness , High Wear Resistance
Size :
OEM Accepted
Application :
Oil Mining
Free Sample :
Available
Description

Tungsten Carbide Blank / Carbide Wear Parts for Cutting Wear Parts

Product Description:

Features of tungsten carbide wear plates

Tungsten carbide wear plates, made from 100% virgin raw materials. It can be used in wide application field. HGalloytool wear plates have high hardness, excellent wear-resistance, high elastic modulus and compressive strength. The chemical properties of our tungsten carbide wear plates are stable, also the impact toughness is low. The heat-conducting property and electrical conductivity of Tungsten carbide wear plate is close to iron or iron alloy.

Specifications:

1. Tungsten carbide plates

2. 100% virgin raw material

3. High tensile strength

4. Good abrasive resistance

5. Strict tolerance control

6. Automated production capacity

7. Quality guarantee

8. Short and on time delivery

9. Customized order is welcome

Applications:

We have various types and grades suitable for difference application.

1. Metal working

2. Stone working

3. Wood working

4. Mining& Construction

Grade and Applications:

Grade

Density

g/cm3

 Typical value Application scope

Hardness

HRA

Bending

strength
YG3 15.10~15.30 92.5 1700 Superior wear resistance only less than YG3X, sensitive to impact and vibration, suitable for cast non-ferrous metal and its alloy finish turning, semi-finish turning, thread finish turning and hole expanding.
YG3X 15.10~15.30 93.6 1450 Best wear resistance in Tungsten and Cobalt alloy, but not good in anti-impact property, suitable for cast iron, non-ferrous and alloy, quenched steel, alloy steel small cutting section machining at high speed.
YG6X 14.80~15.00 92.4 2000 Belong to small granule Tungsten carbide alloy, wear resistance higher than YG6. Suitable for machining cold and hard alloy cast iron and heat resistance alloy steel, as well as finish machining for normal cast iron.
YG6 14.80~15.00 91.1 2100 High wear resistance but less than YG3, better anti-impact and anti-vibration than YG3X, Suitable for cast iron, non-ferrous and alloy, non-metal material semi-finish machining and finish machining.
YG6A 14.8~15.00 92.8 1850 Belong to small granule alloy, high wear resistance, suitable for semi-finish machining of cold and hard cast iron, non-ferrous and alloy, as well as semi-finish machining and finish machining for quenched steel, alloy steel
YG8 14.6~14.80 90.5 2300 High bending strength resistance, better anti-impact and anti-vibration than YG6, suitable for cast iron, non-ferrous and alloy, non-metal material rough machining at low speed.
YG522 14.20~14.40 92.5 2000 High wear resistance, and high strength, special grade for bamboo and wood processing, also suitable for non-ferrous and non-metal material cutting process.
YG546 14.55~14.75 90.5 2700 High flexibility and high strength, withstand high impact load, suitable for stainless steel and cast iron rough processing
YG610 14.60~14.80 93.5 2000 High wear resistance and high hardness, suitable for cast iron, high temperature alloy, quenched material cutting continuous and discontinuously.
YG640 13.10~13.30 91.5 2300 Impact resistance and anti-oxidant, suitable for large cast piece cutting continuous and discontinuously, and anti-heat steel, high strength steel milling and digging.
YG643 13.60~13.80 93.3 1700 High wear resistance, high anti-stick property, suitable for cast iron, high temperature cast iron, high temperature alloy, stainless steel, quenched steel and non-ferrous processing.
YG813 14.30~14.50 92 2200 Good wear resistance, high bending strength resistance and anti-stick property, suitable for processing high temperature alloy, stainless steel and high Manganese steel and other material.

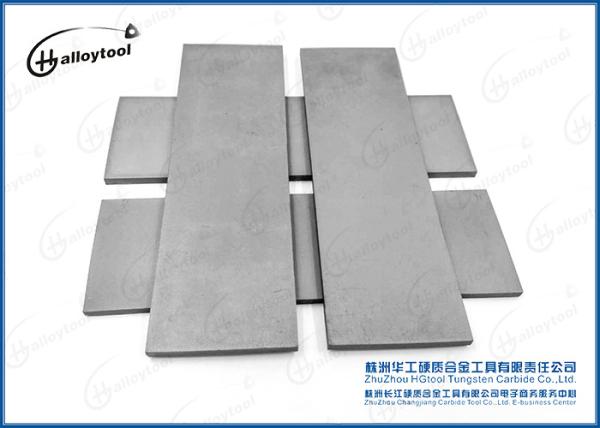

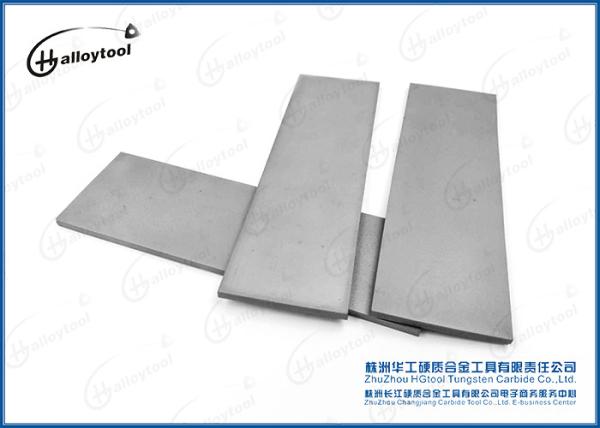

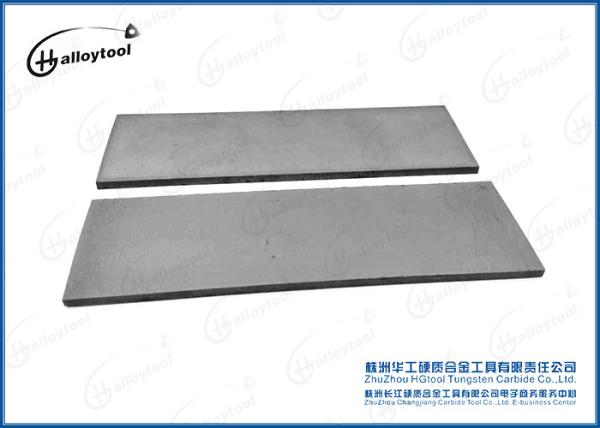

Products Show:

Customized Tungsten Carbide Blanks / Carbide Wear Parts For Oil Mining

Our Service:

Our company manufactures non-standard carbide inserts and can produce according to the drawings provided by customers. It has superior quality and long service life. It is widely used for mold parts processing, metal parts processing, automobile parts processing and non-ferrous metal processing. If you have anything unclear, please send the inquiry to us, we will respond to you at the first time! Thank you!
