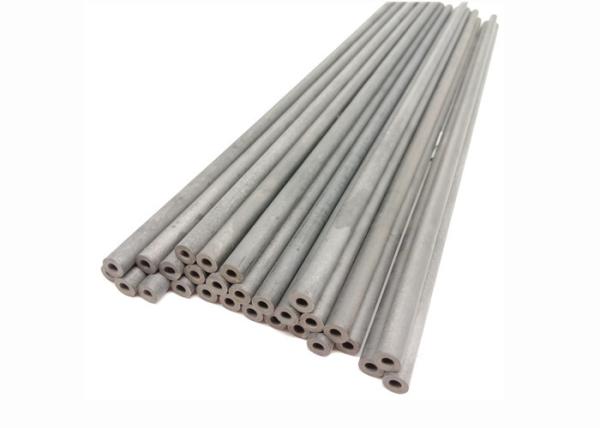

Wear Resistance Cemented Carbide Coolant Rod With 0.2mm Single Hole
Wear Resistance Cemented Carbide Coolant Rod With 0.2mm Single Hole
Wear Resistance Cemented Carbide Coolant Rod With 0.2mm Single Hole
Wear Resistance Cemented Carbide Coolant Rod With 0.2mm Single Hole
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR0871
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
8 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
cemented carbide single hole rod
Application :
wear parts, cutting tools
Size :
Dia4*Dia0.2*330mm OEM accepted
Grade :
YL10.2
Material :
100% virgin tungsten carbide
length :
customized , max 500mm
Advantage :
good performance, excellent wear resistance
Type :
solid carbide rod, carbide rod with hole
Shape :
round
Description

high hardness cemented carbide coolant rod with 0.2mm single hole

Products Description

1. We use 100%virgin material for manufacturing tungsten carbide coolant rod

2. Based on different application, we have various grade for choice: YL10.2/YG8/YG6/YG6X/K10/K20

3. Properties: Our products possess high hardness, wear/corrosion resistance, good roughness,high performance

4. Dimension:dia4*dia0.2/0.3/0.4.....*length330mm. we can provide various dimesion based on your application

5. Surface: blank or unground based on your requirement

6. We manufactured products with advanced equipment and perfect quality control system

7. 100% inspection before shipment

8. We are real factory in Zhzuhou. Our quality is guaranteed and price is competitive.

Standard size list

Size range(ODXIDXL mm)
Detail size and blank tolerance
OD( mm)
ID (mm)
L(mm)
ODxIDx330
2-3(0/+0.3)
0.15/0.2/0.25/0.3/......1.1(+-0.05)
30-340
ODxIDx330
4-6(0/+0.4)
0.2/0.25/0.3/0.4..........4(+-0.05)
30-340
ODxIDx330 7-10(0/+0.5) 0.2/0.25/0.3/0.4...........6(+-0.05) 30-340
ODxIDx330 11-20(0/+0.5) 0.2/0.25/0.3/0.4........12(+-0.05) 30-600
ODxIDx330 22 6/8/10/12(+-0.2) 100-600
ODxIDx330 25 6/8/10/12(+-0.2) 100-600

Some grade information for reference

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain Size
(μm)
Composition(%)
ISO
YL10.2
14.4-14.6
>92
4000
0.6-0.8
10%Co 90%WC
K25-K35
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
K20
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC
K10

Other grade and dimension are also available for choosing based your specific application

other Carbide rod type:

For tungsten carbide rod,we can make various type: solid carbide rod, grinding carbide rod, blank carbide rod, carbide rod with chamfer, carbide rod with single hole, custom carbide rod also available

Application Area:

As tungsten carbide have good material properties, it is widely used in varous industries:Paper, packaging, printing, non-ferrous metal processing industry,Mechanical, chemical, petroleum, metallurgy, electronic and natioanl defense industries.

Production Process:

tungsten carbide rods process, to ensure high quality, we commit our customers that:

1. All materials are tested in terms of purity ,density, hardness and T.R.S before use.

2. Every piece of product is inspected before shipment
