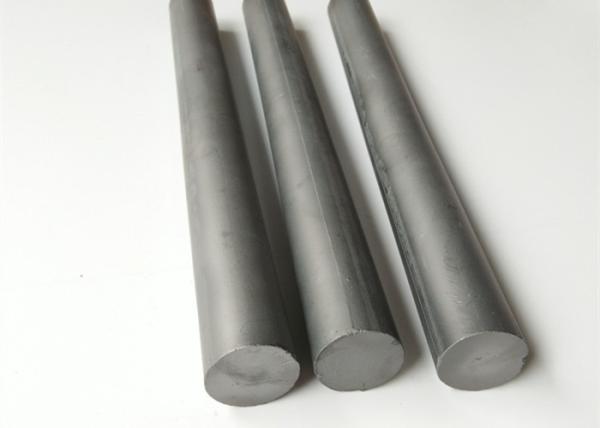

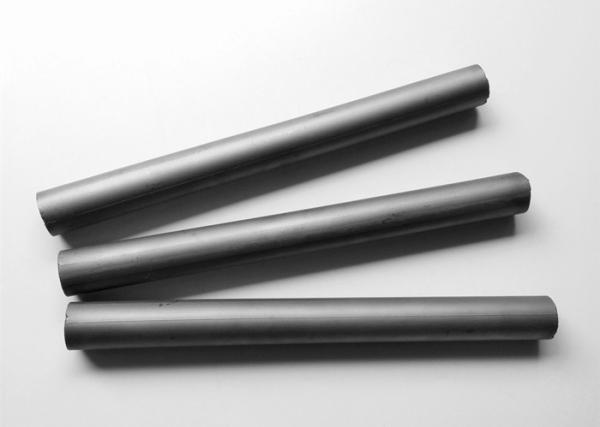

High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body
High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body
High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body
High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR0881
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
tungsten carbide rod
Material :
virgin tungsten carbide
Size :
Dia16*270mm
Application :
Plunger
Grade :
YG11/YG8
Advantage :
high abrasive resistance
Shape :
round
Sintering :
HIP sintering
Description

High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body

Our tungsten carbide rod manufactured with advanced production and test equipment, which have good quality and competitive price. WE have sold out to russia, india, malaysia,isreal, etc, and get good feedback form our clients.

We are looking forward to establish new business with new customers with good quality products. Warmly welcome contact or visit us at any time

Cemented Carbide Rod Introduction

1. Grade: YG11(11% cobalt) , other grade based on your application

2. Grain size: 0.8-1.2μm

3. Size: Dia16*270mm various dimension available

4. manufactured with 100%virgin material

5. Properties: good wear/corrosion resistance , good roughness,high performance

6. 100% inspection before shipment

7. Surface: ground or unground

8. Accept orders of non-standard sizes

Standard Size List for your reference

Size range(DXL mm)
Tolerance
D( Blank mm)
L(mm)
D 4-10*330
+0.3/0.4
+0/+1
D10-16*330
+0.3/+0.5
+0/+2
D17-20*330 +0.5/+0.7

+0/+2
D21-40*330 +0.6/+1

+0/+3

Some grade information for carbide rod

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain Size
(μm)
Composition(%)
YG6X 14.85-15 >92 1860 0.6-0.8 6%Co 94%WC
YL10.2
14.4-14.6
>91.8
4000
0.6-0.8
10%Co 90%WC
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC

We have various grade and dimension for you to choose. We can manufacture based your chemical composition.

We can detect material based on your sample

Application Area:

As tungsten carbide have good material properties, it is widely used for following products

A). high temperature resistance parts

B). drills, endmills, reamers, etc.

C). wear parts.

Widely used industries:

Paper, packaging, printing, non-ferrous metal processing industry,Mechanical, chemical, petroleum, metallurgy, electronic and natioanl defense industries.

Production Process:

tungsten carbide rods process, to ensure high quality, we commit our customers that:

1. All materials are tested in terms of purity ,density, hardness and T.R.S before use.

2. Every piece of product is inspected before shipment

3. products is packed safely suitable for overseas shipment

High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body

Products Packing

High Hardness Tungsten Carbide Rod For High Pressure Pump Plunger Body

For more detail information, warmly welcome to contact us at any time.
