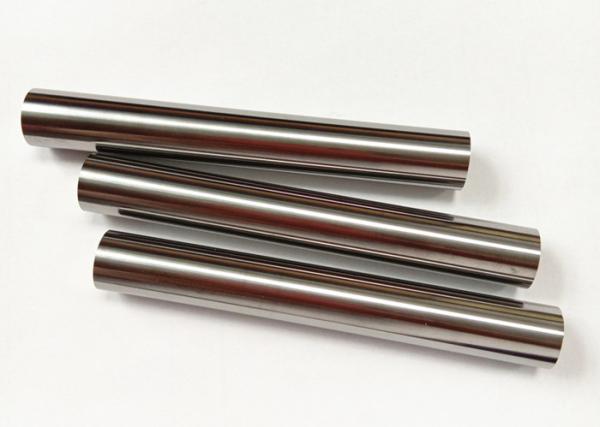

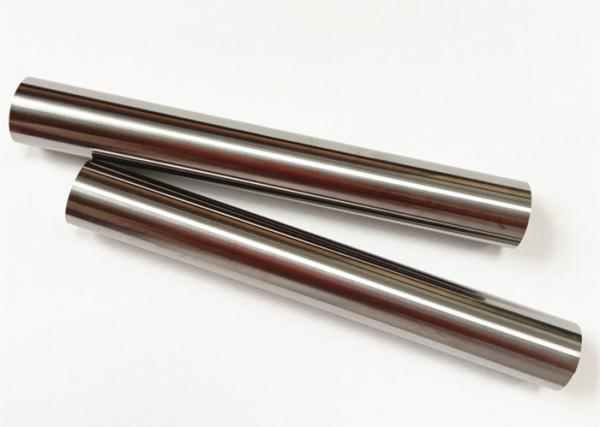

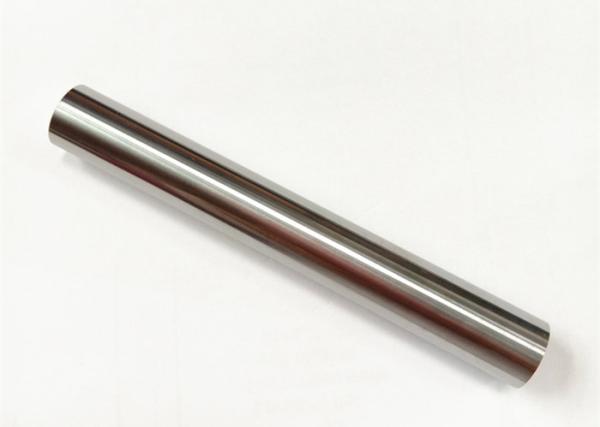

Excellent Performance Precision Ground Carbide Blanks Round With Virgin Materials
Excellent Performance Precision Ground Carbide Blanks Round With Virgin Materials
Excellent Performance Precision Ground Carbide Blanks Round With Virgin Materials
Excellent Performance Precision Ground Carbide Blanks Round With Virgin Materials
Excellent Performance Precision Ground Carbide Blanks Round With Virgin Materials
Excellent Performance Precision Ground Carbide Blanks Round With Virgin Materials
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR026
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
tungsten carbide round bar
Application :
cutting tools
Grain Size :
0.6μm
Grade :
K10， K20，K30 YL10.2 YG10X
Material :
100% virgin tungsten carbide
Size :
Dia1/2/3//8/10....*330 OEM accepted
Advantage :
good performance
length :
customized
Shape :
round
Hardness :
HRA92.5
Type :
power tool parts
Service :
OEM ODM
Description

Excellent Performance Cemented Carbide Precision Ground Rod With Virgin Materials

Application Area:

1. Cutting tools for machining: Milling cutter,

2. Sports Usage: Trekking poles, Car, motorcycle and bicycle tires with tungsten carbide studs

3. stamping and measuring tools

4. Mining: drill bits, reamer

5. Surgical instruments

Our Advantage

1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.

Specification:

Material:

 100% virgin WC+Co

Grade:

 YL10.2( 10% Co)

Properties:

 High Hardness and toughness

Grain Size:

 0.4-0.6μm

Hardness:

 HRA92.5-92.8

Dimension

 Dia1*330mm (various size for Choosing)

Surface:

 Polishing

Application:

 cutting tools

Production Process:

 Powder Preparing-Pressing-HIP sintering-processing-finishing

Standard size list for reference

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(1-5)xL30-330mm
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)xL30-330mm
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)xL30-330mm
+0.5/1.0
h6/h7
0/+3

Some grade information for reference

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain Size
(μm)
Composition(%)
ISO
YL10.2
14.4-14.6
>92
4000
0.6-0.8
10%Co 90%WC
K25-K35
YG10X
14.5-14.6
>91.8
3500
0.6-0.8
10%Co 90%WC
K35
YG6X
14.85-15
>92
1860
0.6-0.8
6%Co 94%WC
K10
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
K20
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC
K10

Other grade and dimension are also available for choosing based your specific application

Other type tungsten carbide round bar

1. tungsten carbide blank rod

2. custom non standard carbide rod

3. short length carbide rod

4. tugnsten carbide rod with one small single hole

Our Packing:

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

3. Shipping:UPS,TNT,EMS,Fedex,DHL, shipment by sea, or as you request.
