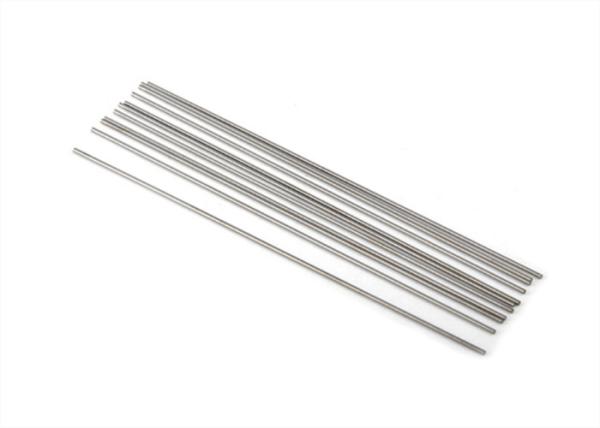

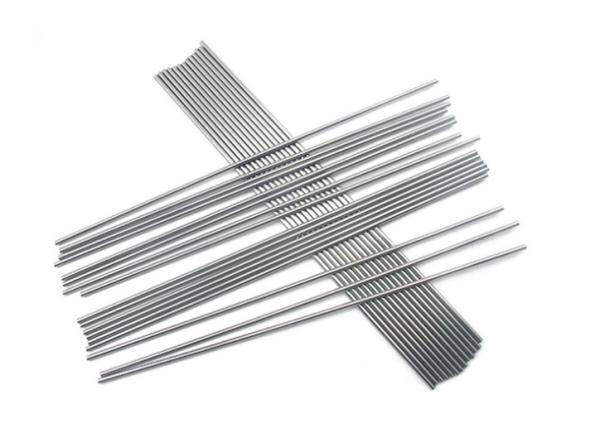

Virgin Tungsten Carbide Rods , High Hardness Carbide Bar Stock Dia1x330mm
Virgin Tungsten Carbide Rods , High Hardness Carbide Bar Stock Dia1x330mm
Virgin Tungsten Carbide Rods , High Hardness Carbide Bar Stock Dia1x330mm
Virgin Tungsten Carbide Rods , High Hardness Carbide Bar Stock Dia1x330mm
Virgin Tungsten Carbide Rods , High Hardness Carbide Bar Stock Dia1x330mm
Virgin Tungsten Carbide Rods , High Hardness Carbide Bar Stock Dia1x330mm
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR0205
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
tungsten carbide round bar
Grade :
K10， K20，K30 YL10.2 YG10X
Material :
100% virgin tungsten carbide
Application :
cutting tools
Size :
Dia1/2/3//8/10....*330 OEM accepted
Advantage :
good performance
length :
customized
Shape :
round
Type :
power tool parts
Hardness :
HRA92.5
Service :
OEM ODM
Grain Size :
0.6μm
Description

Virgin Material Dia1x330mm Cemented Carbide Rods Stock With High Hardness

Application Area:

1. Cutting tools for machining: Milling cutter,

3. Mining: drill bits, reamer

2. stamping and measuring tools

4. Sports Usage: Trekking poles, Car, motorcycle and bicycle tires with tungsten carbide studs

5. Surgical instruments

Specification:

Material:

 100% virgin WC+Co

Grade:

 YL10.2( 10% Co)

Properties:

 High Hardness and toughness

Grain Size:

 0.4-0.6μm

Hardness:

 HRA92.5-92.8

Dimension

 Dia1*330mm (various size for Choosing)

Surface:

 Polishing

Application:

 cutting tools

Production Process:

 Powder Preparing-Pressing-HIP sintering-processing-finishing

Standard size list for reference

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(1-5)xL30-330mm
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)xL30-330mm
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)xL30-330mm
+0.5/1.0
h6/h7
0/+3

Some grade information for reference

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain Size
(μm)
Composition(%)
ISO
YL10.2
14.4-14.6
>92
4000
0.6-0.8
10%Co 90%WC
K25-K35
YG10X
14.5-14.6
>91.8
3500
0.6-0.8
10%Co 90%WC
K35
YG6X
14.85-15
>92
1860
0.6-0.8
6%Co 94%WC
K10
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
K20
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC
K10

Other grade and dimension are also available for choosing based your specific application

Other type tungsten carbide round bar

1. tungsten carbide blank rod

2. tugnsten carbide rod with one small single hole

3. short length carbide rod

4. custom non standard carbide rod

Our Advantages:

1. Professional manufacturer for tungsten carbide rod with more than 10 years' experience.
2. Using100% virgin raw material guaranteed products quality
3. Advanced production equipment/test equipment (With HIP sintering)
4. compititive price and fast delivery
5. products with high performance:high wear-resistance ,toughness and corrosion resistance
6. customization is avaliable

7. Perfect quality control systerm: ISO9001:2015

8. We have professional technician team and sales team, giving you professional suggestion

Our Packing:

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

3. Shipping:UPS,TNT,EMS,Fedex,DHL, shipment by sea, or as you request.
