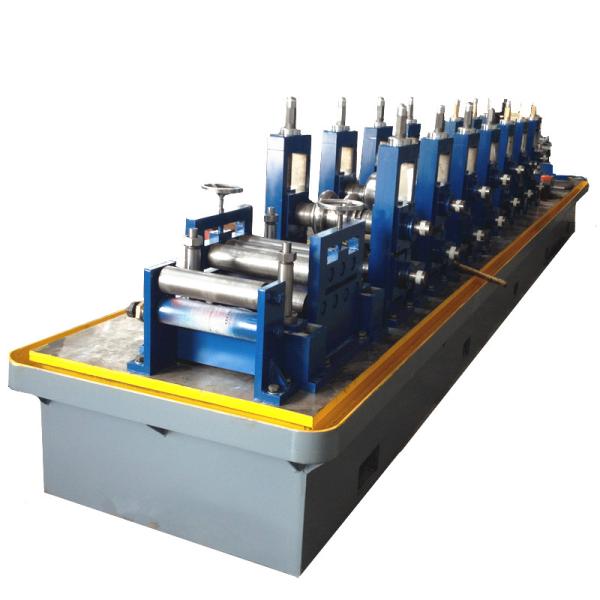

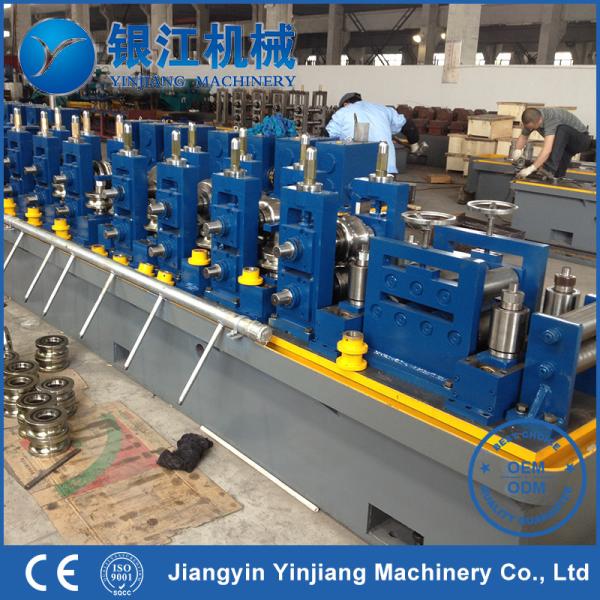

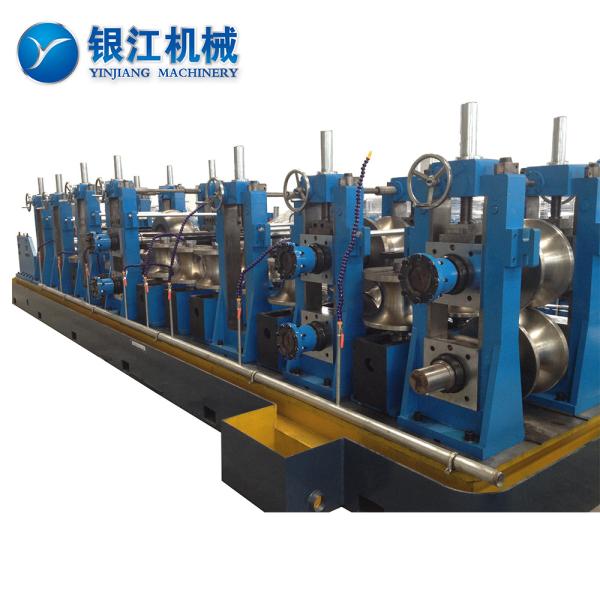

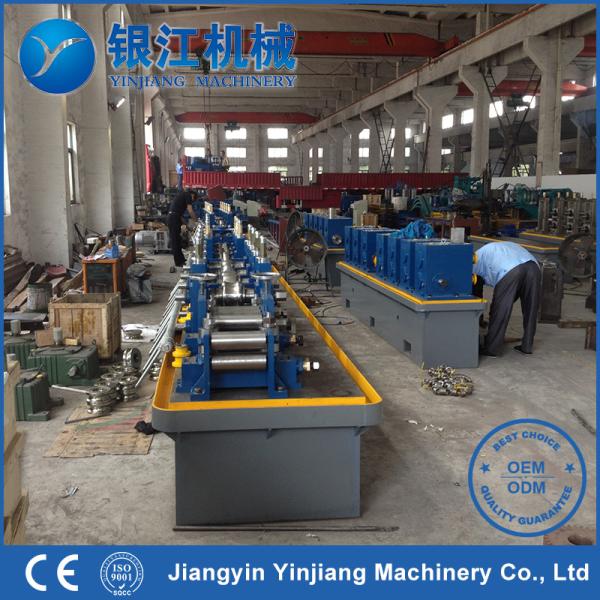

60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
60-70mm Carbon Steel Pipe Making Machine PLC Forming
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
ISO9001 CE
Packaging Details :
Seaworthy packing
Supply Ability :
50 Sets per Year
Price :
$6500-$100,000.00/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
120 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor
Condition :
New
Type :
Pipe Mill
Pipe Material :
Carbon steel
Production Capacity :
5 set / month
Voltage :
380
Power :
380V/440V 50HZ
Weight :
16000 kg
Warranty :
1 Year
Key Selling Points :
High-accuracy
After-sales Service Provided :
Field installation, commissioning and training
Factory history :
19 Years
Color :
Blue
Speed :
60-70m/min according to size and wall thickness
Diameter :
60-70mm
Thickness of steel strip :
1.0-3.5mm
The width of steel strip :
60-240mm
Maximum weight coil :
2500kgs
Port :
SHANGHAI
Description

Carbon Steel Pipe Forming Machine Tube Mill Steel Pipe Making Machine

Product Description

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

Working flow: hanging material→feeding→un-coiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table


60-70mm Carbon Steel Pipe Making Machine PLC Forming60-70mm Carbon Steel Pipe Making Machine PLC Forming60-70mm Carbon Steel Pipe Making Machine PLC Forming60-70mm Carbon Steel Pipe Making Machine PLC Forming

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-125 YJ-165
Diameter(mm) 8-16 10-26 14-38 20-63.5 32-70 40-80 50-90 60-120 60-130 80-165
Thickness(mm) 0.3-1.0 0.5-1.5 0.6-1.8 0.8-3.0 1.0-3.0 1.0-3.5 1.5-4.0 2.0-5.0 1.5-5.5 2.0-6.0
Speed(m/min) 80-100 80-100 80-100 70-80 70-80 60-70 50-60 40-60 20-60 20-50
Host motor power(Kw) 22 37 75 132 55*2 132*2 90*2 110*2 220*2 220*2
High-frequency equipment(Kw) 60 60 100 200 250 250 250 300 300 400
Equipment composition Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!

Packaging & Shipping

60-70mm Carbon Steel Pipe Making Machine PLC Forming

Our Services
  • Engineer oversea service, Guide equipment installation, commissioning, training operators.(The fee for engineer charge by buyer)
  • Seller can send engineers to guide installation and commissioning for buyer. The buyer should take up all necessary expenses for installation and engineers’ wages which include two-way air tickets, local transportation, board and lodge (average hotel), insurance, plus installation labor charge USD 80.00 per day. The buyer also needs to provide all necessary assistance such as workers and crane equipment.
  • Warranty period of one year, Warranty period provided free of charge due to quality problems of damaged parts.
  • Long-term to provide accessories, technology.
