Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
ISO9001 CE
Packaging Details :
Seaworthy packing
Supply Ability :
55 Sets per Year
Price :
USD11000-40000/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox
Condition :
New
Type :
Pipe Welding Machine
Pipe Material :
Carbon steel
Application :
Drain Pipe
Production Capacity :
0-120m/min
Voltage :
380V/440V 50HZ
Power :
About 500KW for all line
Dimension(L*W*H) :
Customized
Weight :
13500 kg
Warranty :
1 Year
Key Selling Points :
High-accuracy
Factory history :
21 Years
Color :
Blue
Speed :
0-120m/min according to size and wall thickness
Raw material :
Low-carbon steel
Diameter :
10-400mm
Thickness of steel strip :
0.5-10mm
The width of steel strip :
30-1300mm
Maximum weight coil :
20000kgs
Port :
SHANGHAI
Description

New Products Pipe Making Machine Tube mill line pipe mill production line

Product Description

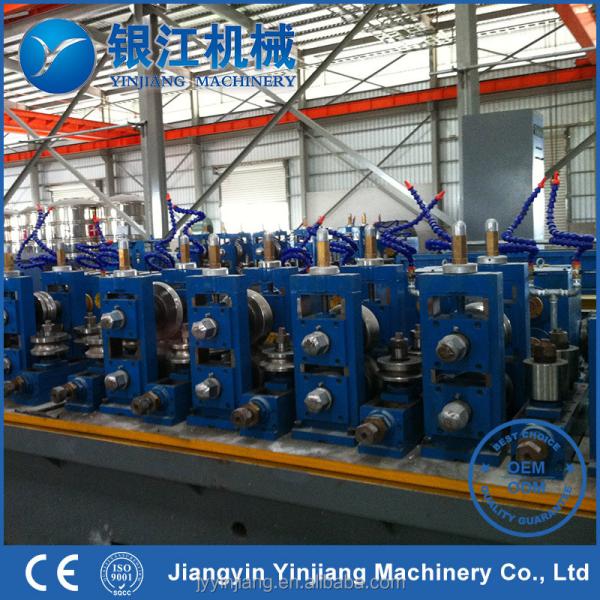

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table


New Products Pipe Making Machine Tube mill line pipe mill production line

New Products Pipe Making Machine Tube mill line pipe mill production line

New Products Pipe Making Machine Tube mill line pipe mill production line

The model and basic parameters

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-165 YJ-219
Diameter(mm) 8-16 10-26 13-38 20-63.5 32-76 40-89 50-102 65-127 89-165 102-219
Thickness(mm) 0.3-1.0 0.4-1.5 0.4-2.0 0.5-3.0 0.6-3.0 0.8-4.0 1.0-4.0 1.5-5.0 1.5-7.0 2.0-10.0
Speed(m/min) 0-100 0-100 0-120 0-100 0-90 0-70 0-70 0-60 0-50 0-40
Host motor power(Kw) 22 37 75 110 132 132/110 132*2 160/132 200*160 220*2
High-frequency equipment(Kw) 100 100 200 200 250 300 300 400 500 600
Equipment composition Uncoiler, leveler, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!
Detailed Images

New Products Pipe Making Machine Tube mill line pipe mill production line


New Products Pipe Making Machine Tube mill line pipe mill production line

Hot Products

New Products Pipe Making Machine Tube mill line pipe mill production line

Company Information

New Products Pipe Making Machine Tube mill line pipe mill production line

Packaging & Shipping

New Products Pipe Making Machine Tube mill line pipe mill production line

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team and factory. Welcome to visit us.

Q:What kind o f payment term you can do?
A:We are flexible about payment terms,please contact us for details.

Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this area for more than 20 years,and especially our company’s YJ series spiral accumulator won a utility model patent certificate issued by intellectual property office (patent no:ZL200820132936.X).Our pipe making machine line directly export to Russia,Vietnam,India,Indonesia,and many countries in Asia.
