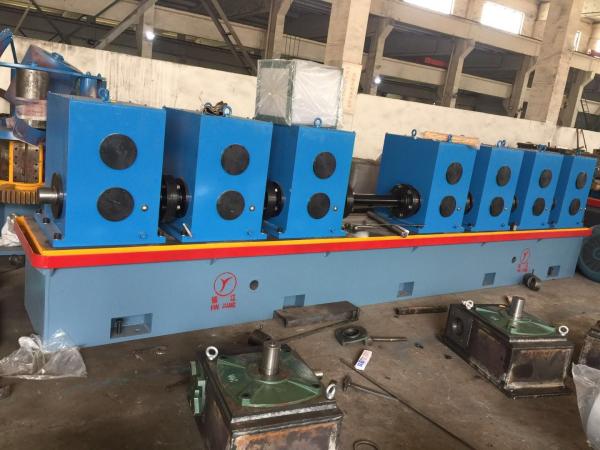

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Packaging Details :
Seaworthy packing for High quality filter bag tube steel production line sewing machine
Price :
USD15000-50000/set
MOQ :
1 set
Model Number :
YJ series
Certification :
ISO9001 CE
Supply Ability :
50 Sets per Year
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor
Condition :
New
Pipe Material :
Carbon steel
Application :
Energy Supply Pipe
Production Capacity :
0-120m/min
Voltage :
220/380V
Power :
200KW
Weight :
5500 kg
Warranty :
1 Year
Key Selling Points :
Automatic
Pipe material :
carbon steel,hot or cold steel,galvanized steel
Pipe diameter :
8-320mm
Pipe thickness :
0.4-12mm
After sales Service Provided :
field installation, commissioning, training
Pipe shape :
round/square/rectangle
Color :
Customer's Requirement
Description

Steel Erw Tube Mill Line Pipe Making Machine

Product Description

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table


220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

The model and basic parameters

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-165 YJ-219
Diameter(mm) 8-16 10-26 13-38 20-63.5 32-76 40-89 50-102 65-127 89-165 102-219
Thickness(mm) 0.3-1.0 0.4-1.5 0.4-2.0 0.5-3.0 0.6-3.0 0.8-4.0 1.0-4.0 1.5-5.0 1.5-7.0 2.0-10.0
Speed(m/min) 0-100 0-100 0-120 0-100 0-90 0-70 0-70 0-60 0-50 0-40
Host motor power(Kw) 22 37 75 110 132 132/110 132*2 160/132 200*160 220*2
High-frequency equipment(Kw) 100 100 200 200 250 300 300 400 500 600
Equipment composition Uncoiler, leveler, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!
Detailed Images

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line


220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

Hot Products

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

Company Information

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

Packaging & Shipping

220v 380v Welded Tube Mill PLC ERW Tube Mill Machine Production Line

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team and factory. Welcome to visit us.

Q:What kind o f payment term you can do?
A:We are flexible about payment terms,please contact us for details.

Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this area for more than 20 years,and especially our company’s YJ series spiral accumulator won a utility model patent certificate issued by intellectual property office (patent no:ZL200820132936.X).Our pipe making machine line directly export to Russia,Vietnam,India,Indonesia,and many countries in Asia.
