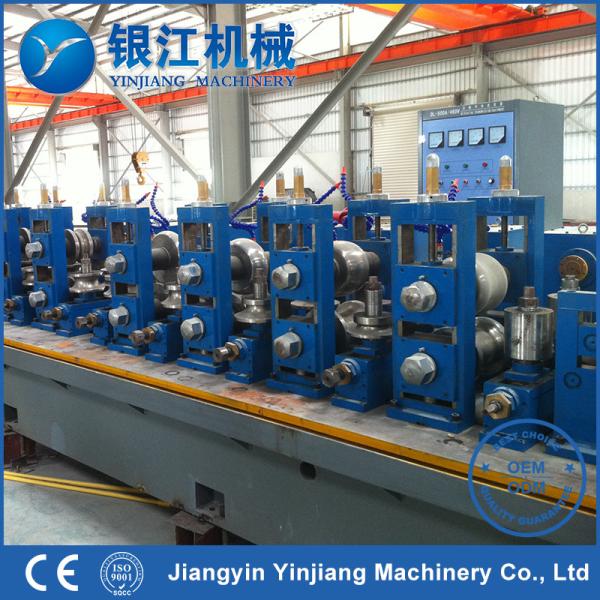

20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Model Number :
YJ-125
Certification :
ISO9001 CE
Packaging Details :
Seaworthy packing
Supply Ability :
12 Sets per Year
Price :
$112,800.00 - $250,000.00/sets
MOQ :
1 set
Condition :
New
Type :
Pipe Welding Machine
Pipe Material :
Carbon steel
Application :
Drain Pipe
Production Capacity :
20-60m/min
Voltage :
380V/440V 50HZ
Power :
220*2kw
Dimension(L*W*H) :
Customized
Weight :
Customized
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Factory history :
19 Years
Color :
Blue
Speed :
20-60m/min according to size and wall thickness
Raw material :
Low-carbon steel
Diameter :
60-130mm
Thickness of steel strip :
1.5-5.5mm
Host motor power :
220*2kw
High-frequency equipment :
300kw
Port :
SHANGHAI
Description

20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table


20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine

The model and basic parameters

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-125 YJ-165
Diameter(mm) 8-16 10-26 14-38 20-63.5 32-70 40-80 50-90 60-120 60-130 80-165
Thickness(mm) 0.3-1.0 0.5-1.5 0.6-1.8 0.8-3.0 1.0-3.0 1.0-3.5 1.5-4.0 2.0-5.0 1.5-5.5 2.0-6.0
Speed(m/min) 80-100 80-100 80-100 70-80 70-80 60-70 50-60 40-60 20-60 20-50
Host motor power(Kw) 22 37 75 132 55*2 132*2 90*2 110*2 220*2 220*2
High-frequency equipment(Kw) 60 60 100 200 250 250 250 300 300 400
Equipment composition Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!
Detailed Images

20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine


20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine

Hot Products

20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine

Company Information

20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine

Packaging & Shipping

20 - 60m/min Pipe Roll Forming Machine / Steel Pipe Making Machine

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us.

Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on financing,please contact us for details.

Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this area for more than ten years,and especially our company’s YJ series spiral accumulator won a utility model patent certificate issued by intellectual property office (patent no:ZL200820132936.X).Our pipe making machine line directly export to Russia,Vietnam,India,Indonesia,and many countries in Asia.
