Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
ISO9001 CE
Packaging Details :
bare packing or as your requirements
Supply Ability :
50 Sets per Month
Price :
$6500-$100,000.00/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
120 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox
Condition :
New
Type :
Pipe Mill
Pipe Material :
Carbon steel
Production Capacity :
250kw
Voltage :
380V/440V 50HZ
Power :
22kw
Weight :
12300 kg
Warranty :
1 Year
Key Selling Points :
Long Service Life
Raw material :
Low-carbon Steel
Pipe shape :
Round Square Rectangle Pipe
Function :
Making Tube Body
After-sell service :
Training
Usage :
Industrial Areas
After Warranty Service :
Video technical support
After sales Service Provided :
Field installation, commissioning and training
Port :
SHANGHAI
Description

Carbon Steel 250kw Erw Tube Mill Machine 50HZ Pipe Mill LineBest Quality Carbon Steel Pipe Making Machine Tube Mill Pipe Mill Factory Supply

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

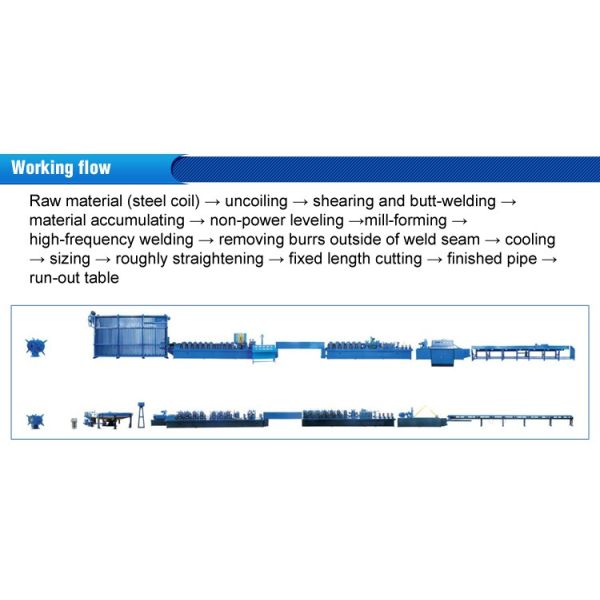

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table

Carbon Steel 250kw Erw Tube Mill Machine 50HZ Pipe Mill Line

Carbon Steel 250kw Erw Tube Mill Machine 50HZ Pipe Mill LineCarbon Steel 250kw Erw Tube Mill Machine 50HZ Pipe Mill LineCarbon Steel 250kw Erw Tube Mill Machine 50HZ Pipe Mill Line

Carbon Steel 250kw Erw Tube Mill Machine 50HZ Pipe Mill Line

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-125 YJ-165
Diameter(mm) 8-16 10-26 14-38 20-63.5 32-70 40-80 50-90 60-120 60-130 80-165
Thickness(mm) 0.3-1.0 0.5-1.5 0.6-1.8 0.8-3.0 1.0-3.0 1.0-3.5 1.5-4.0 2.0-5.0 1.5-5.5 2.0-6.0
Speed(m/min) 80-100 80-100 80-100 70-80 70-80 60-70 50-60 40-60 20-60 20-50
Host motor power(Kw) 22 37 75 132 55*2 132*2 90*2 110*2 220*2 220*2
High-frequency equipment(Kw) 60 60 100 200 250 250 250 300 300 400
Equipment composition Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!
