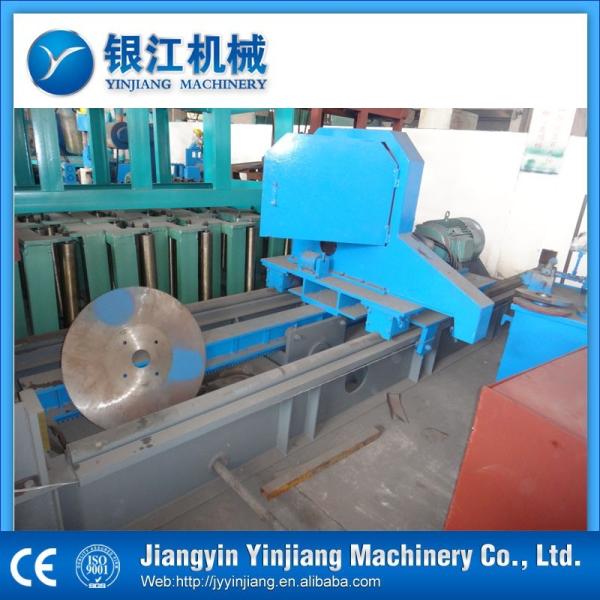

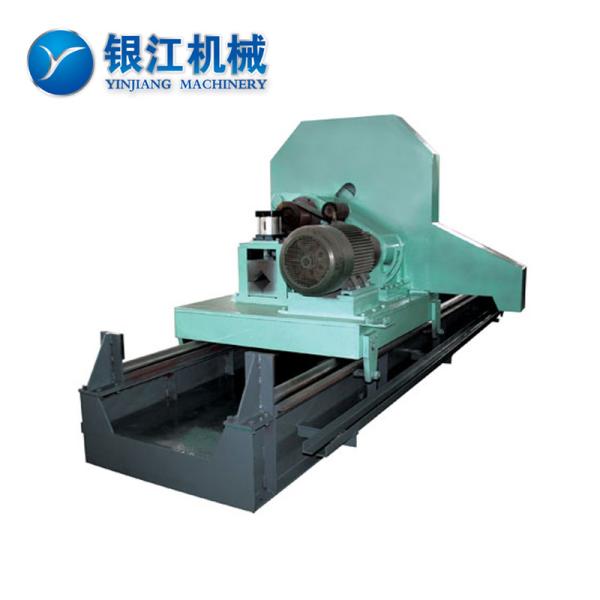

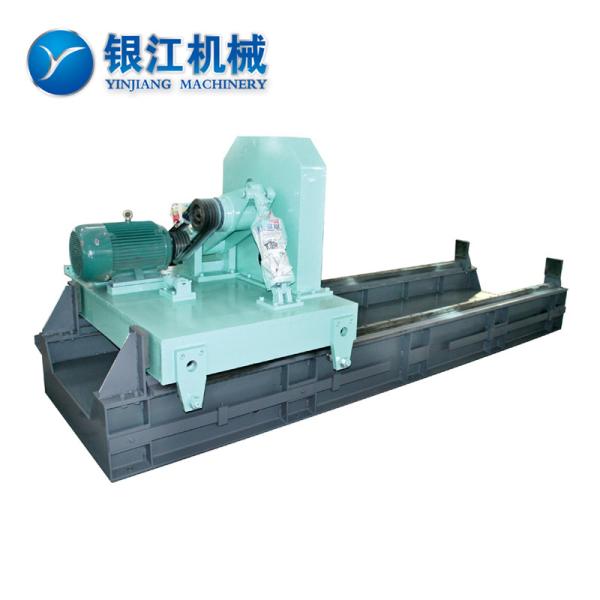

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Seaworthy packing or bare packing or as your requirements
Supply Ability :
60 Sets per Year
Price :
$6000-$20,000.00 sets
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Condition :
New
Dimension(L*W*H) :
Customized
Warranty :
1 Year
Key Selling Points :
High Rigidity
Color :
Customer's Requirememt
After Warranty Service :
Field maintenance and repair service
After-sales Service Provided :
Field installation, commissioning and training
Port :
Shanghai
Description

Pipe Mill Machine Flying Saw Machine Cutting Steel Pipes in Pipe Making Line

Product Description

Flying sawing machine is an important equipment of welded pipe production line, it is in the high speed automatic precision length cutting pipes of various shapes, in order to achieve our required length of steel pipe. Scale and synchronization performance is good, reliable mechanical transmission, so the machine is fast performance is good, the characteristics of high precision.

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line 2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line

Specifications

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line

Type Computer flying saw
Usage

1.Determine the cut-off position of the fixed length of the steel pipe, and can start quickly to synchronize the cutting equipment with the speed of the operation line

2.Keep the cutting equipment synchronized with the operation line speed, and the cutting mechanism acts to cut off the steel pipe

3.Quick reset
Control way Microcomputer control motor drives mobile component through gear box gear rack
Cutting way Friction heat of mental sawing
Maximum running speed of saw car 20-100m/min
Cutting Pipe diameter Φ8-Φ273mm
Cutting Pipe thickness ≤12mm
Cutting precision ±3mm
Specified length 2～12m
Saw blade Φ600×70×4
Saw blade rotation speed 2800rpm
Cutting motor 22KW(AC)
Tracking motor 15KW(DC)
Pneumatic system 0.4～0.7Mpa

Company Information

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line

Packaging & Shipping

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line

Workshop Show

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line

Working Flow

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line

FAQ

2800rpm Flying Cold Saw 20-100m/Min Cutting Machine In Pipe Making Line
