Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Seaworthy packing or bare packing or as your requirements
Supply Ability :
50 Sets per Year
Price :
$6500-$100,000.00/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Condition :
New
Dimension(L*W*H) :
depends on machine size
Warranty :
1 Year
After-sales Service :
Field installation, commissioning and training
After-sales Provided :
Field maintenance and repair service
Port :
SHANGHAI
Description

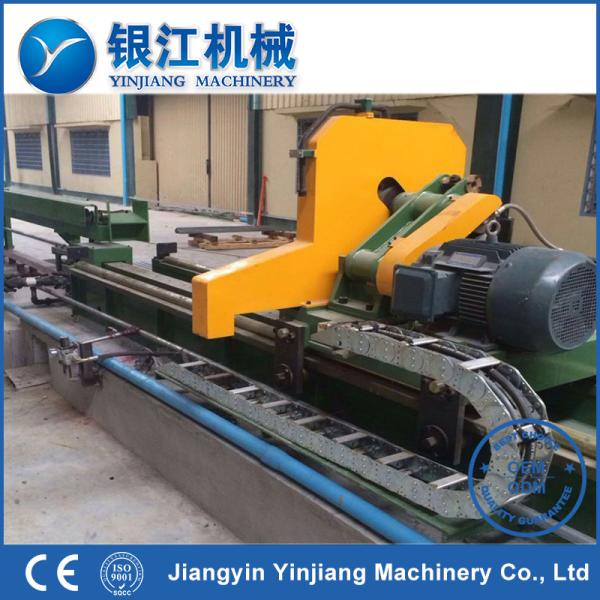

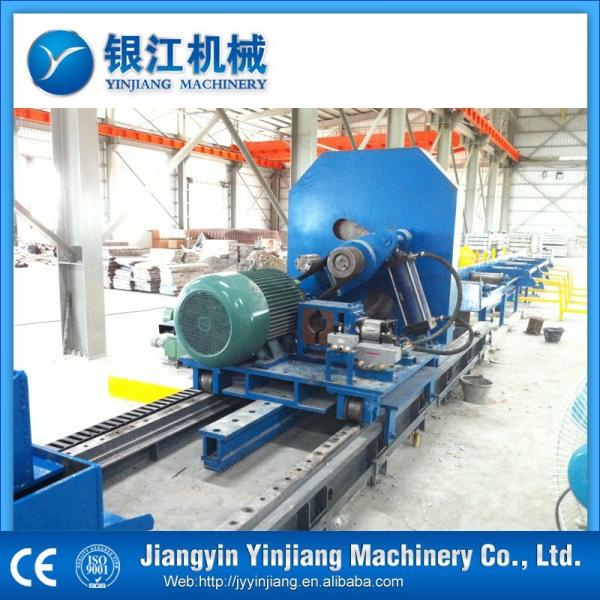

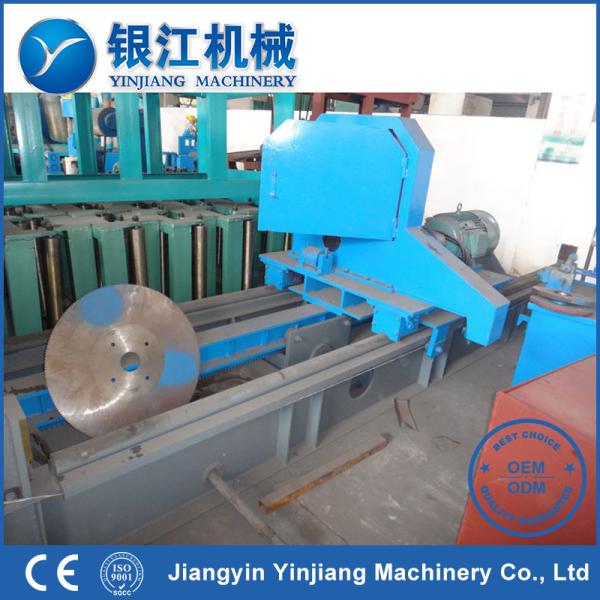

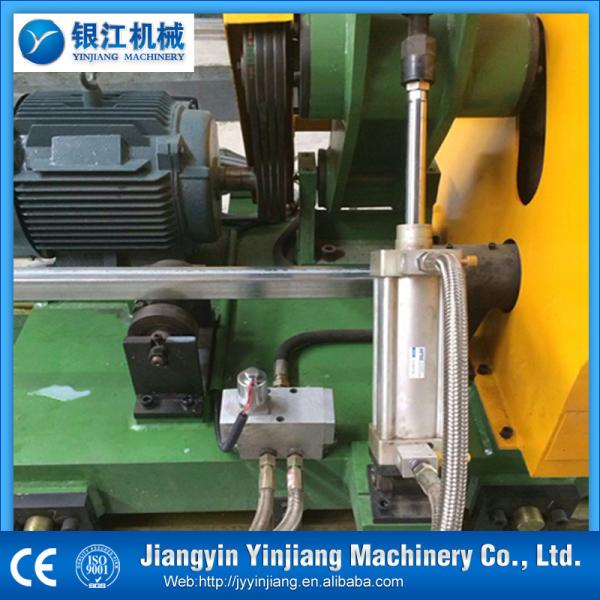

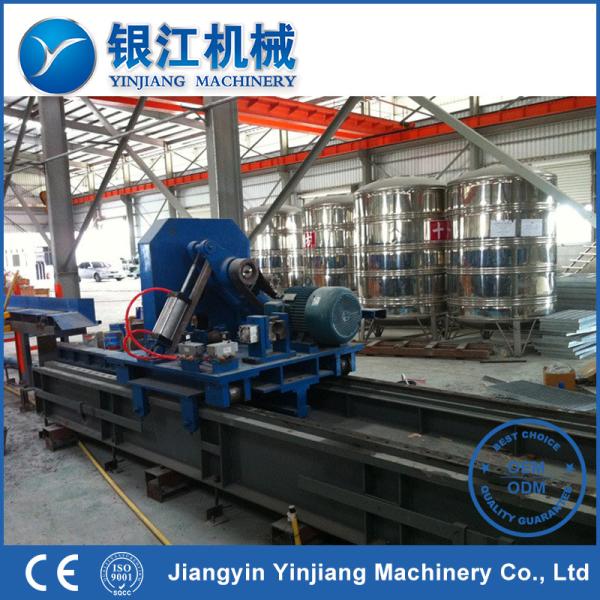

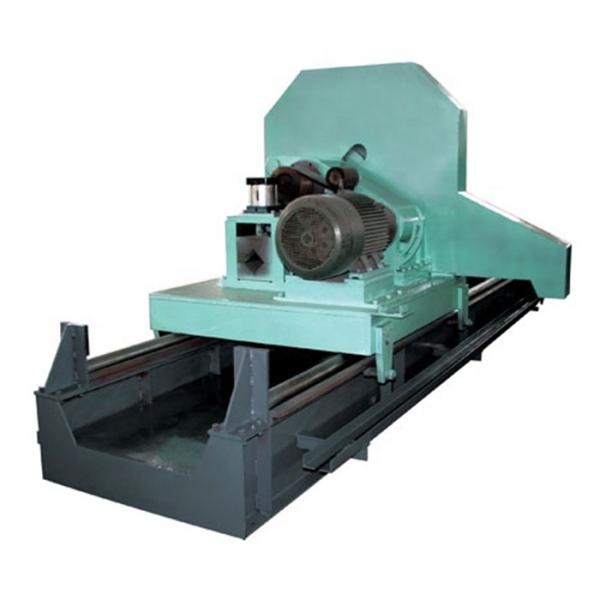

Flying Saw Steel Pipe Tube Cutting Machine

Product Description

Flying sawing machine is an important equipment of welded pipe production line, it is in the high speed automatic precision length cutting pipes of various shapes, in order to achieve our required length of steel pipe. Scale and synchronization performance is good, reliable mechanical transmission, so the machine is fast performance is good, the characteristics of high precision.

Steel Tube Flying Cold Saw 2800rpm CNC Cutting MachineSteel Tube Flying Cold Saw 2800rpm CNC Cutting MachineSteel Tube Flying Cold Saw 2800rpm CNC Cutting MachineSteel Tube Flying Cold Saw 2800rpm CNC Cutting Machine

Steel Tube Flying Cold Saw 2800rpm CNC Cutting Machine
Type Computer flying saw
Usage

1.Determine the cut-off position of the fixed length of the steel pipe, and can start quickly to synchronize the cutting equipment with the speed of the operation line

2.Keep the cutting equipment synchronized with the operation line speed, and the cutting mechanism acts to cut off the steel pipe

3.Quick reset
Control way Microcomputer control motor drives mobile component through gear box gear rack
Cutting way Friction heat of mental sawing
Maximum running speed of saw car 20-100m/min
Cutting Pipe diameter Φ8-Φ273mm
Cutting Pipe thickness ≤12mm
Cutting precision ±3mm
Specified length 2~12m
Saw blade Φ600×70×4
Saw blade rotation speed 2800rpm
Cutting motor 22KW(AC)
Tracking motor 15KW(DC)
Pneumatic system

0.4~0.7Mpa
