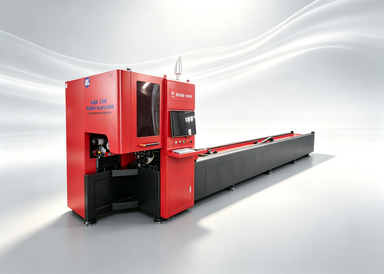

CNC 5 axis laser cutting machine for precise tube cutting
CNC 5 axis laser cutting machine for precise tube cutting
Specifications
Brand Name :
Mingzhou
Model Number :
L16
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
USD10000~30000
Payment Terms :
By T/T
Supply Ability :
1000 Pcs/m
Delivery Time :
15 Days
Packaging Details :
Wooden Case, Pallet, Carton, Plastic Paper
Powersupply :
380V, 50Hz, 3-phase
Laser Cutting Accuracy :
±10um
Environment Temperature :
5—35 °C
Laser Generator :
BWT Or RECI Or MAX Or RAYCUS
Application :
Metal Pipe Cutting
Pipe :
φ10mm-φ120mm
Acceleration :
2.0G
Cutting Accuracy :
±0.02mm
Description
CNC 5 Axis Laser Cutting Machine for Precise Tube Cutting
Product Overview
Our CNC 5-axis laser tube cutting machine is engineered for high-precision tube processing, supporting full-scenario cutting of round, square, rectangular, and special-shaped tubes. Equipped with imported fiber lasers (1000W-6000W optional) and leading light sources (e.g., Caplin, Raycus), it enables ±45° bevel cutting, completing cutting, hole drilling, intersecting line processing, and beveling in one single pass without secondary grinding. With a repeat positioning accuracy of ±0.01mm, it meets the complex tube processing needs of automotive, engineering machinery, fitness equipment, and other industries, significantly reducing labor costs and boosting production efficiency.
CNC 5 axis laser cutting machine for precise tube cutting
Key Features
  • High-precision 5-axis linkage control system with fast response and high positioning accuracy. Performs bevel forming at any angle (adjustable within 0-60°) with bevel angle error ≤ ±0.1°. Cut surface is highly flat, free of burrs, edge collapse and dross adhesion, eliminating need for subsequent grinding.
  • Machine frame welded with high-strength steel and subjected to aging treatment for stress relief, ensuring high stability, excellent shock resistance, and minimal deformation during long-term operation.
  • Human-machine interactive operation interface with built-in bevel processing parameter templates for quick recall and flexible adjustment. Supports 3D drawing import from software such as SW and UG, plus automatic nesting and breakpoint resume cutting functions.
  • High-efficiency laser cutting technology with low energy consumption, no dust and no noise pollution, complying with green industrial production standards. Minimal material loss during cutting improves material utilization.
Technical Specifications
Warranty 12 Months
Beam Quality 1.1m²
Acceleration 2.0G
Tolerance ±0.02mm
Application Metal Pipe Cutting
Environment Temperature 5-35 °C
Laser Generator BWT Or RECI Or MAX Or RAYCUS
Cutting Accuracy ±0.02mm
Effective Cutting Length <6000mm
Power Supply 380V, 50Hz, 3-phase
Manufacturing Advantages
  • Unmatched After-sales Service: 24/7/365 professional after-sales support, including timely remote troubleshooting, on-site maintenance and genuine spare parts, ensuring uninterrupted production.
  • Original Factory Strength: As a source factory with rich R&D and production experience, our machines are tailored for high-efficiency, material-saving and intelligent cutting, minimizing waste and maximizing production benefits.
  • Aspirant Spirit & Ultimate Performance: Guided by the pursuit of excellence, our products adopt advanced fiber laser technology, featuring high cutting speed, stable operation and strong adaptability to meet complex processing needs.
  • Strict Quality Commitment: Rigorous quality control throughout the production process, from raw materials to finished products, complying with international standards to provide durable, reliable and high-precision equipment.
  • Intelligent & Efficient Integration: Integrated with intelligent control and high-precision cutting technology, it enables easy operation without professional drawing skills, further improving efficiency and reducing costs.
